Power Seat Control Module: Service and Repair

Removal
1. Power steering column to fully forward position. (Driver side only)
2. Power seat to fully forward and upward position.
3. Remove battery cover and disconnect ground cable from battery terminal. Service and Repair

WARNING: FOLLOWING DISCONNECTION OF THE BATTERY A PERIOD OF AT LEAST ONE MINUTE MUST BE ALLOWED TO ELAPSE BEFORE WORKING ON A FRONT SEAT WITH A SIDE AIRBAG FITTED.

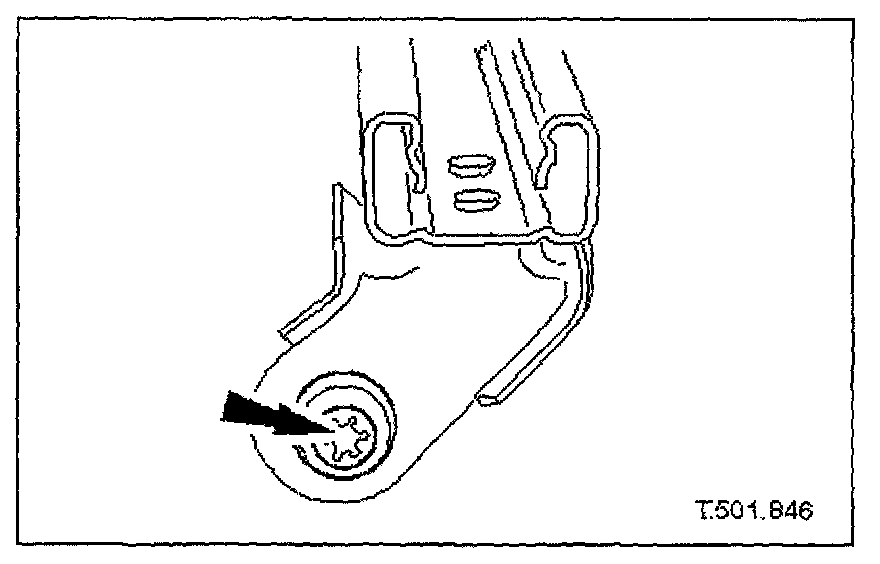

4. Slacken and remove seat rear securing bolts.

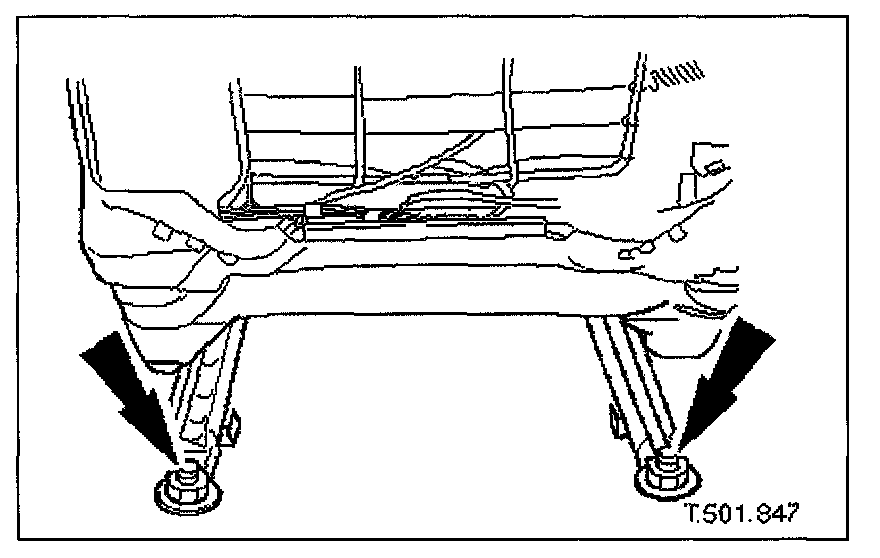

5. Slacken and remove seat front securing bolts.
6. With assistance and exercising care to avoid tensioning harness, tilt seat backwards and support for access.

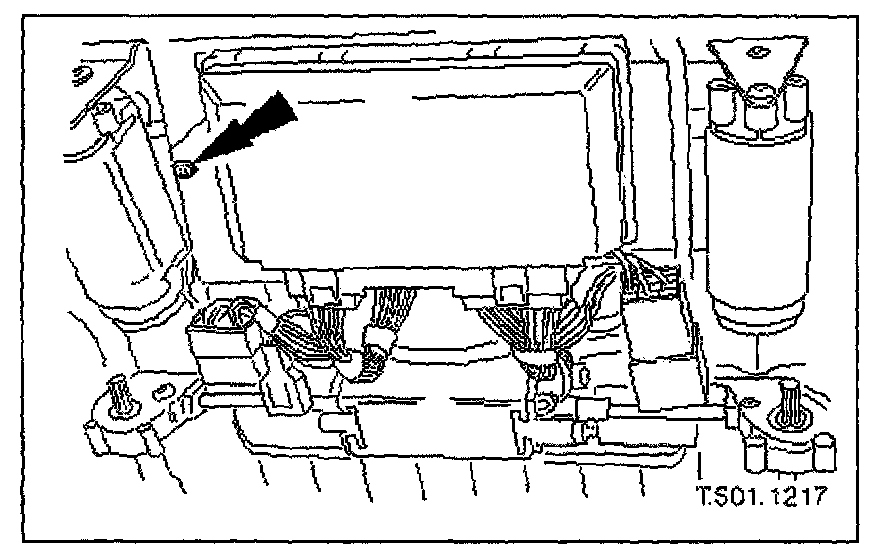

7. Slacken and remove module mounting bracket to seat frame securing screw.

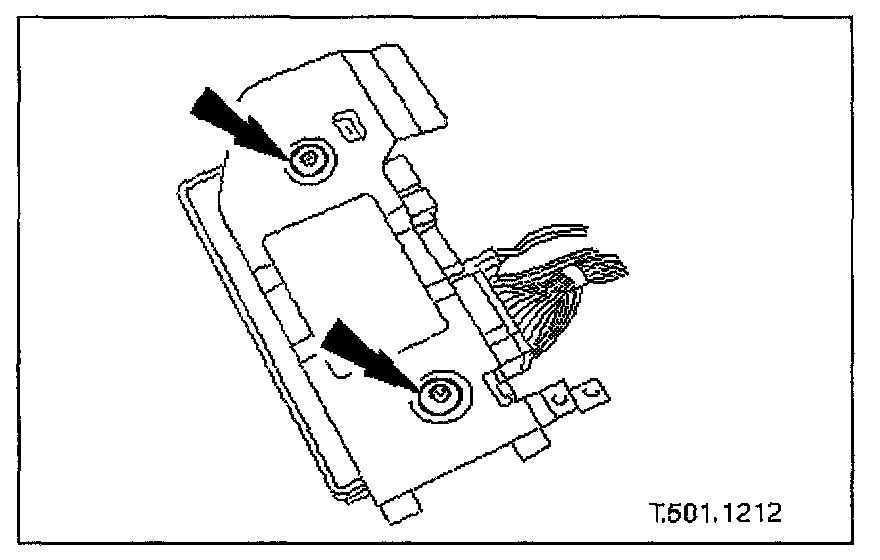

8. Position module/mounting bracket assembly for access and slacken and remove module to bracket securing screws.





9. Remove seat control module.
1. Disconnect harness multiplugs from module.
2. Withdraw module from seat


Installation
1. Position control module at seat and connect harness multiplugs.
2. Position control module on mounting bracket and fit and tighten securing screws.
3. Position control module/mounting bracket assembly on seat frame and fit and tighten securing screw.
4. Position seat over securing bolt holes.
5. Fit and tighten seat front securing bolts
6. Fit and tighten seat rear securing bolts.
7. Connect ground cable to battery terminal and fit battery cover. Service and Repair
8. Return seat to original position.
9. Return steering column to original position.
