Front Door Control Module

Removal

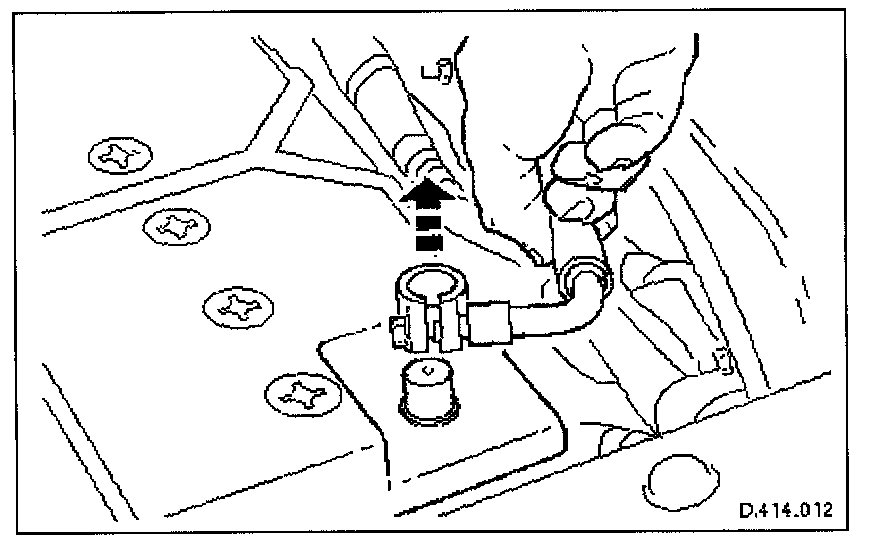

1. Disconnect battery ground cable; Refer to 'Battery, Battery Cable.' Negative






2. Remove door casing; Refer to 'Body and Frame, Doors, Hood and Trunk, Door.' Service and Repair

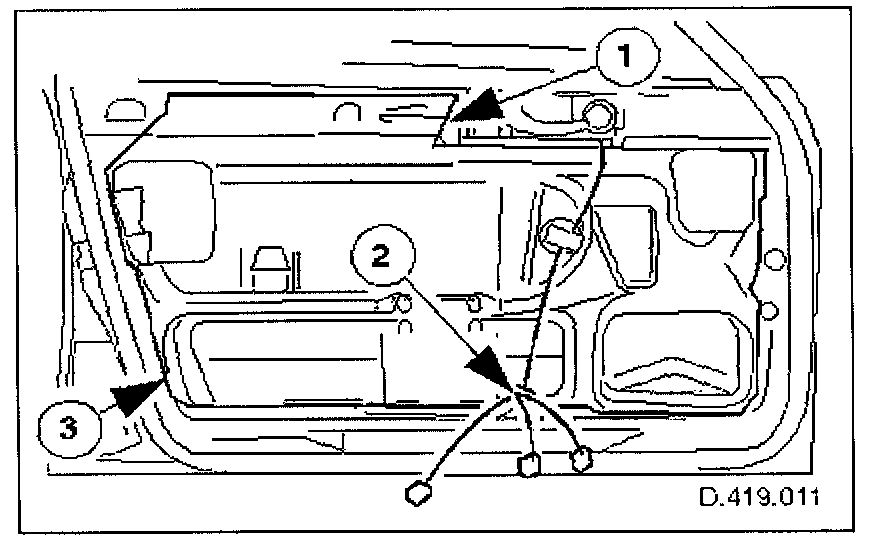

3. Remove primary water shedder.

Displace primary water shedder from door.
Feed door harness through water shedder.
Remove water shedder.

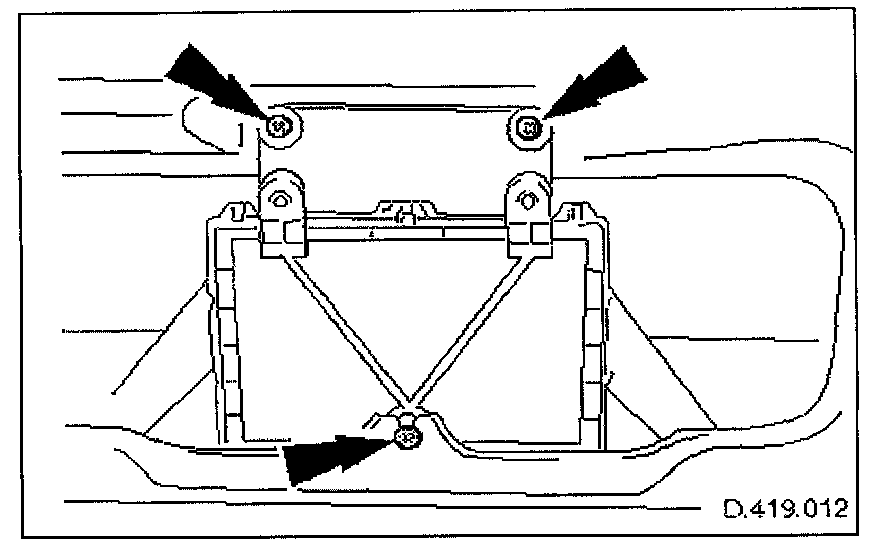

4. Remove door module.

Remove screws which secure module to door.
Reposition module to allow access to connectors.
Disconnect connector.
Remove module complete with bracket.

5. Remove mounting bracket.

Remove screws securing bracket to module.

Installation
1. Installation is reverse of removal.
2. Reconnect battery ground cable; Refer to 'Battery, Service and Repair, Battery Reconnection Procedure.' Service and Repair
