Non-Electrochromic Interior Rear View Mirror

NON-ELECTROCHROMIC INTERIOR REAR VIEW MIRROR

Removal


CAUTION: When removing mirror from base, care must be exercised to ensure that base is not detached from windshield.







1. Remove upper cover from mirror stem.







2. Remove rain sensor unit.

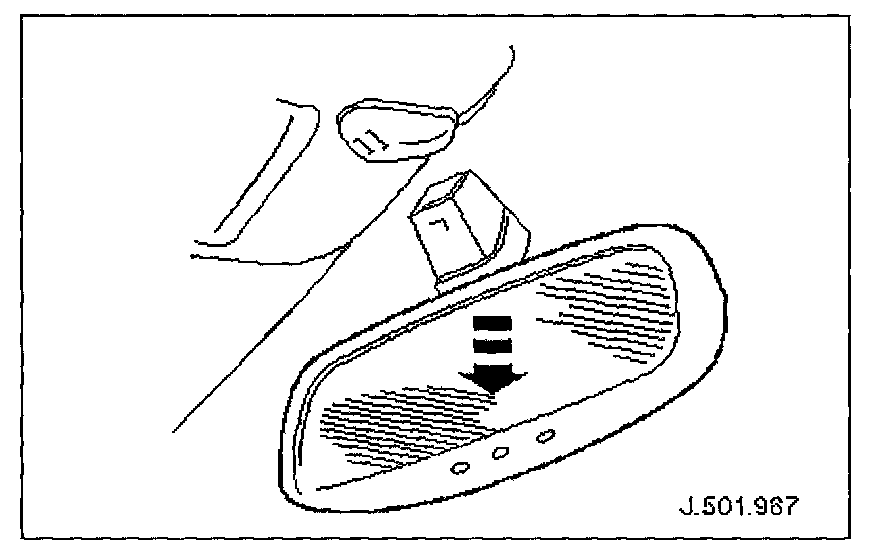

3. Applying firm downward pressure, remove mirror assembly from base.

Installation
1. Position mirror at bottom of base and apply firm upward pressure to fully seat and secure in position.
2. Install rain sensor unit.
3. Install upper cover to mirror stem.
