Driver Side Underscuttle

DRIVER SIDE UNDERSCUTTLE


Removal
1. Turn ignition switch to position II.
2. Motor driver seat fully rearwards.
3. Turn ignition switch to position 'O'.

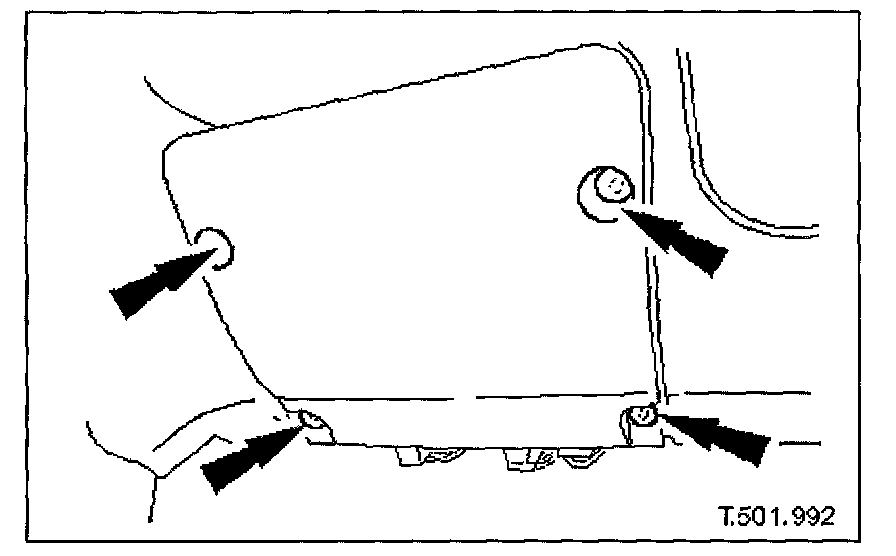

4. Slacken and remove the four underscuttle securing screws.
5. Remove and discard securing clips from screw locations.
6. Remove underscuttle from vehicle.

Installation
1. Fit new securing clips to screw locations.
2. Position and fully seat underscuttle below fascia and fit and tighten securing screws.
3. Return driver seat to original position.
