Driver Stowage Compartment

Removal

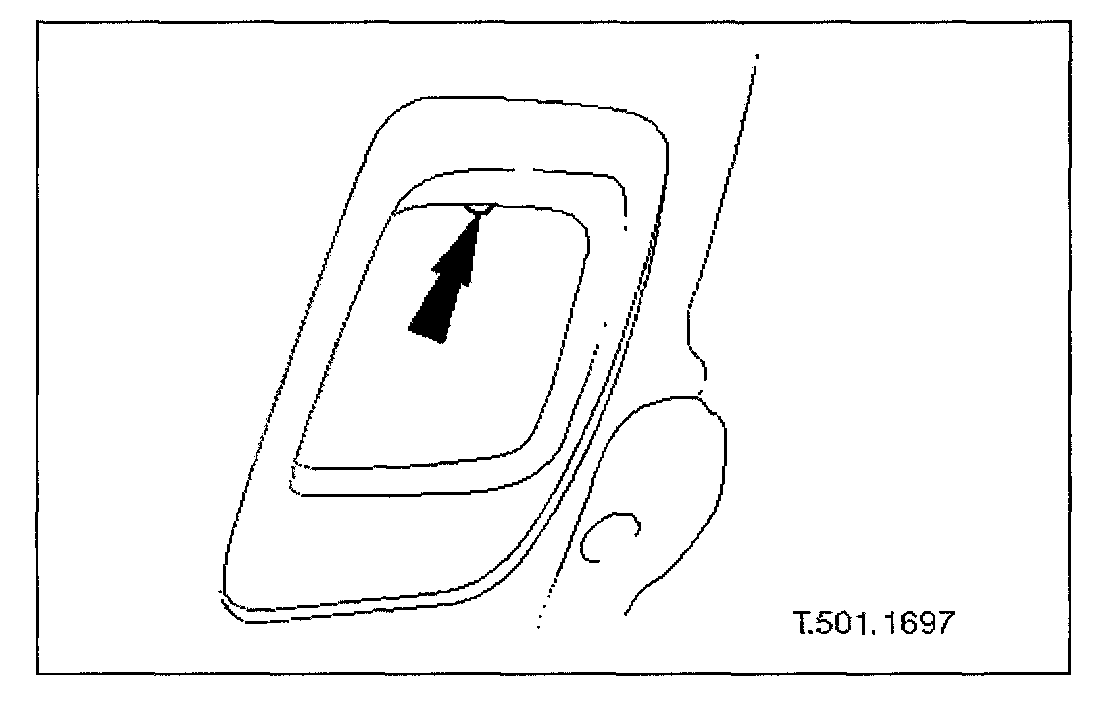

1. Slacken and remove screw securing driver stowage compartment to fascia.

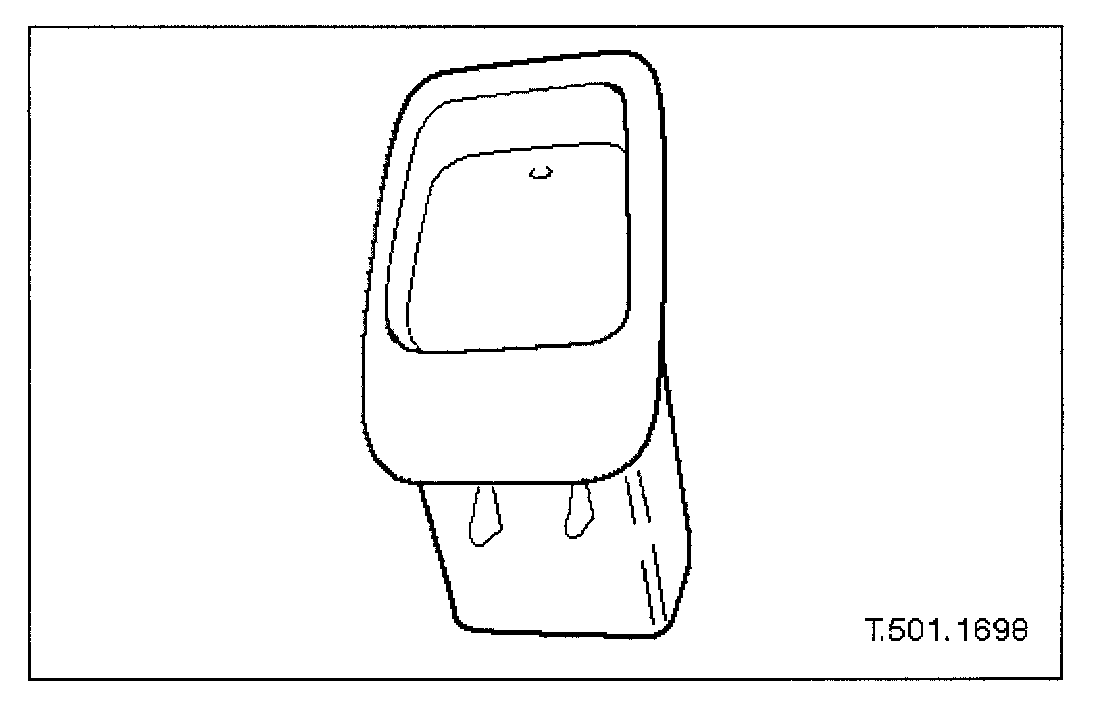

2. Withdraw stowage compartment from fascia and remove from vehicle.

Installation
1. Position driver stowage compartment in fascia recess.
2. Install stowage compartment to fascia securing screw.
