Front Door Armrest

FRONT DOOR ARMREST

Removal
1. Remove battery cover and disconnect ground cable from battery terminal.
2. Remove door casing.

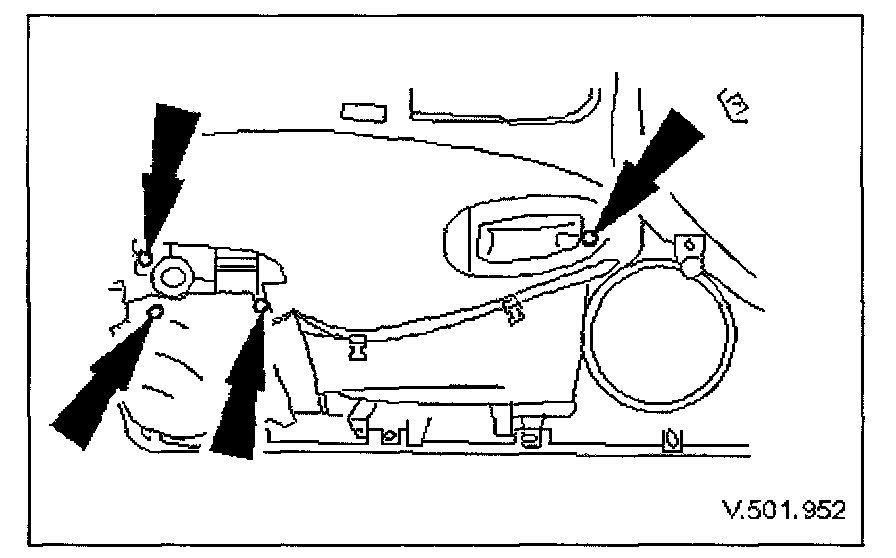

3. Slacken and remove four screws securing armrest to door casing and remove armrest from casing.







4. Remove switchpack from armrest

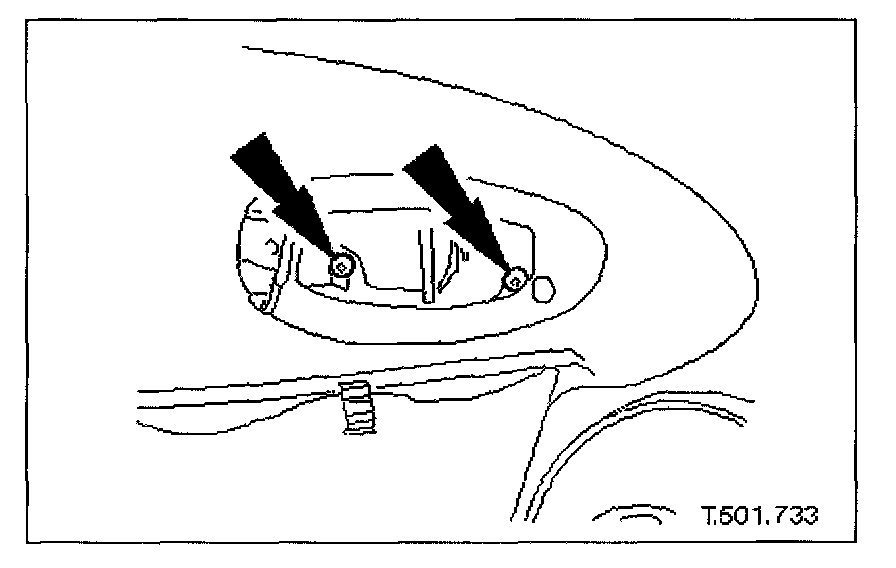

1. Slacken and remove two screws securing switch pack and finisher to armrest.
2. Remove switchpack and finisher from armrest.

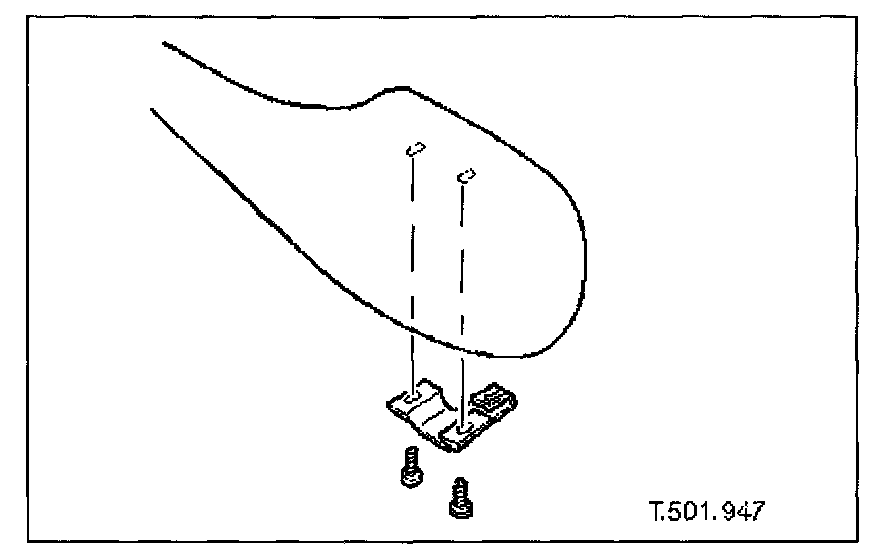

5. Slacken and remove two screws securing armrest retaining clip and remove clip from armrest.

Installation
1. Position retaining clip on armrest and fit and tighten securing screws.
2. Position switchpack and finisher on armrest and fit and tighten securing screws.
3. Position armrest on casing and fit and tighten four securing screws.
4. Fit casing to door.
5. Connect ground cable to battery and fit battery cover.
