Trunk Rear Finisher

TRUNK REAR FINISHER

Removal

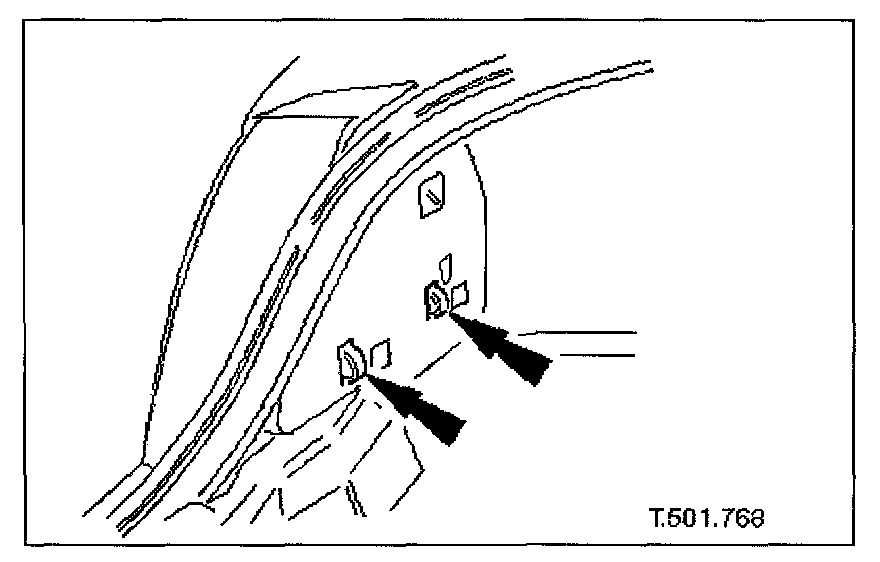

1. Remove tail lamp covers.
2. Remove trunk floor and battery cover.

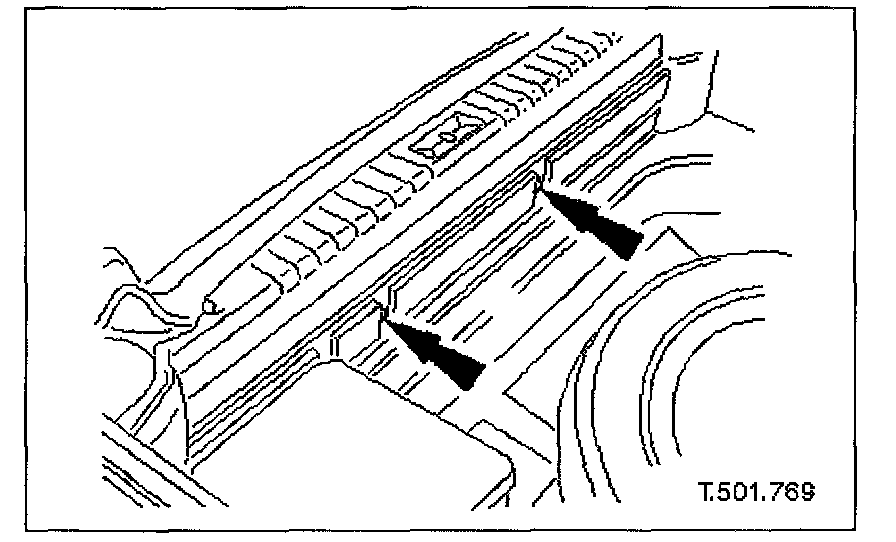

3. Remove and discard the two fir tree fasteners securing finisher to trunk rear panel.

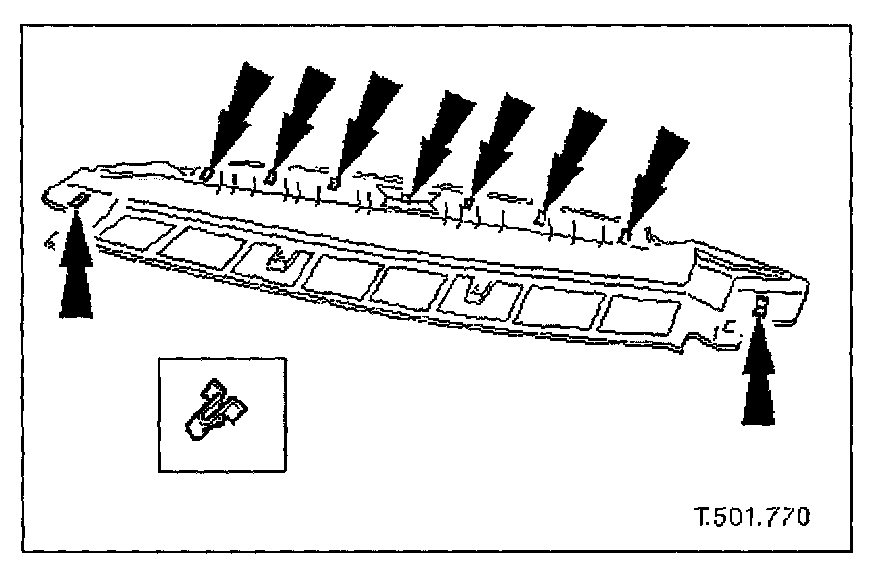

4. Pull rear finisher upwards to release upper spring clips and remove finisher from trunk.

Installation
1. Position finisher on trunk rear panel and press firmly downwards to engage spring clips.
2. Fit and fully seat fir tree fasteners.
3. Fit trunk floor and battery cover.
4. Fit tail lamp covers.
