Trunk Lid Upper Trim

TRUNK LID UPPER TRIM

Removal
1. Remove battery cover and disconnect ground cable from battery terminal.
2. Disconnect and remove trunk lamp assemblies.

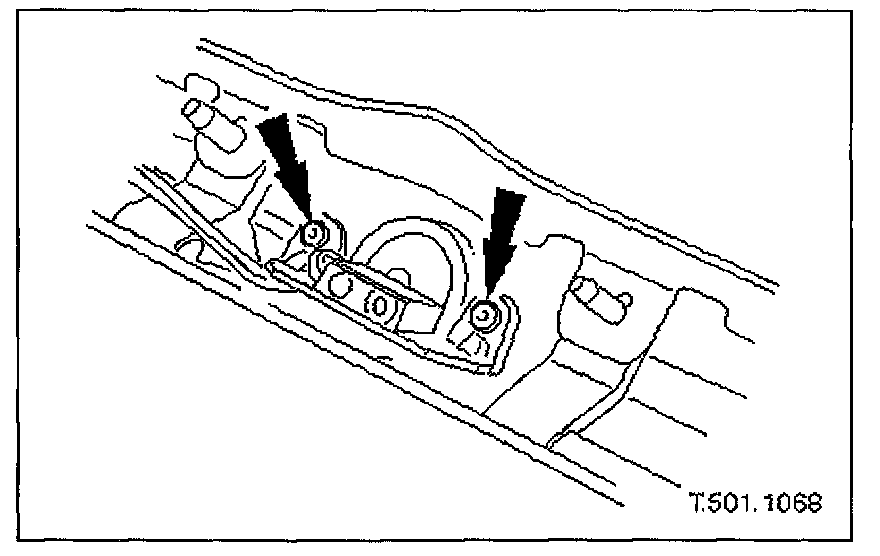

3. Remove covers from trunk latch finisher securing bolts, slacken and remove bolts and remove finisher.

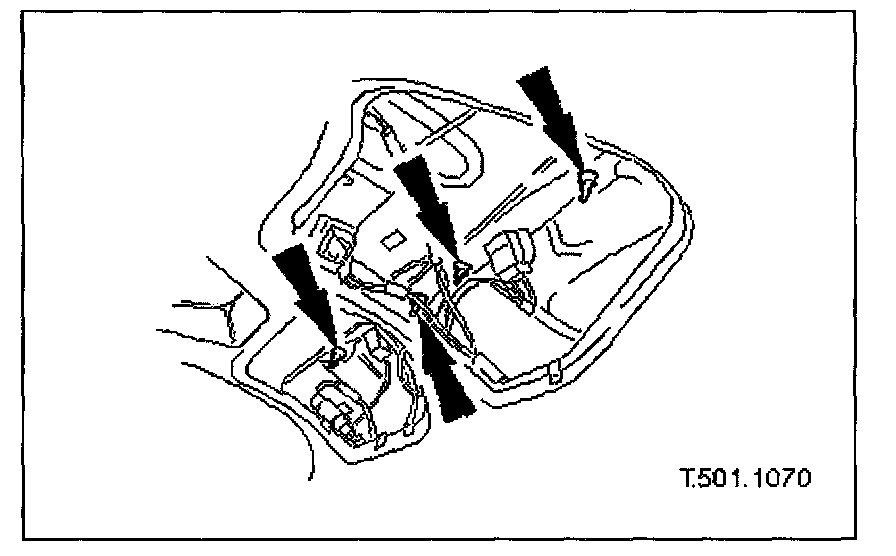

4. Remove and discard trunk lid liner rear fasteners and position liner for access.







5. Free trunk lid release button harness from retaining clip and disconnect multiplug.







6. NOTE: The pressed steel fasteners fitted to Jaguar models should be discarded on removal.

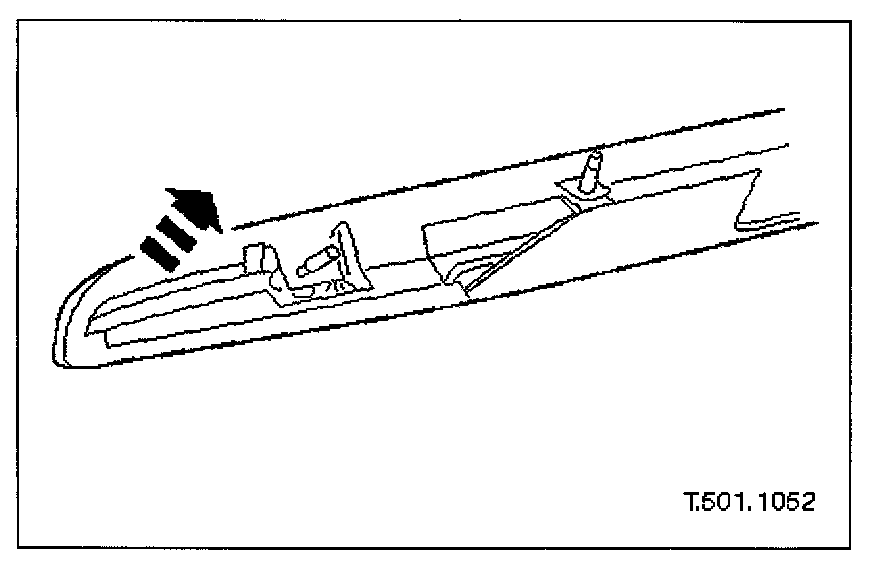

Slacken and remove nuts/fasteners securing trim finisher to trunk lid.







7. Position trim finisher for access and withdraw and discard release button harness grommet from trunk lid.
8. Remove trim finisher from trunk lid.







9. Carefully remove seal from trim finisher.







10. Slacken and remove screws securing release button assembly to trim finisher and remove release button from finisher.

Installation
1. Fit and fully seat release button in trim finisher and fit and tighten securing screws.
2. Apply suitable adhesive to contact area of trim finisher and fit and align seal to finisher.
3. Position trim finisher and pass release button harness through trunk lid aperture.
4. Fit and fully seat a new harness grommet in trunk lid.


5. NOTE: Fit new pressed steel fasteners on Jaguar models.


Align and fully seat trim finisher on trunk lid and fit and fully tighten securing nuts/fasteners.

6. Connect release button harness multiplug and position harness in retaining clip.
7. Position and fully seat trunk lid trim pad and secure with new fir tree fasteners.
8. Fit finisher over trunk latch, fit and tighten securing bolts and fit bolt covers.
9. Fit trunk lamp assemblies.
10. Connect ground cable to battery terminal and fit battery cover.
