Trunk Lid Liner

TRUNK LID LINER

Removal
1. Remove trunk lamp assemblies.

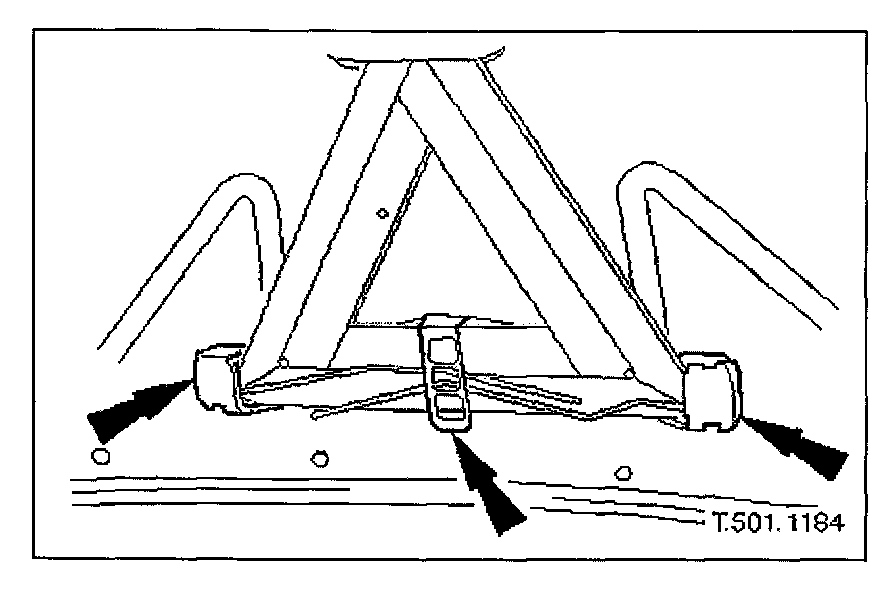

2. Release the three warning triangle securing clips and remove warning triangle.







3. Slacken and remove warning triangle mounting bracket securing screws and remove bracket.

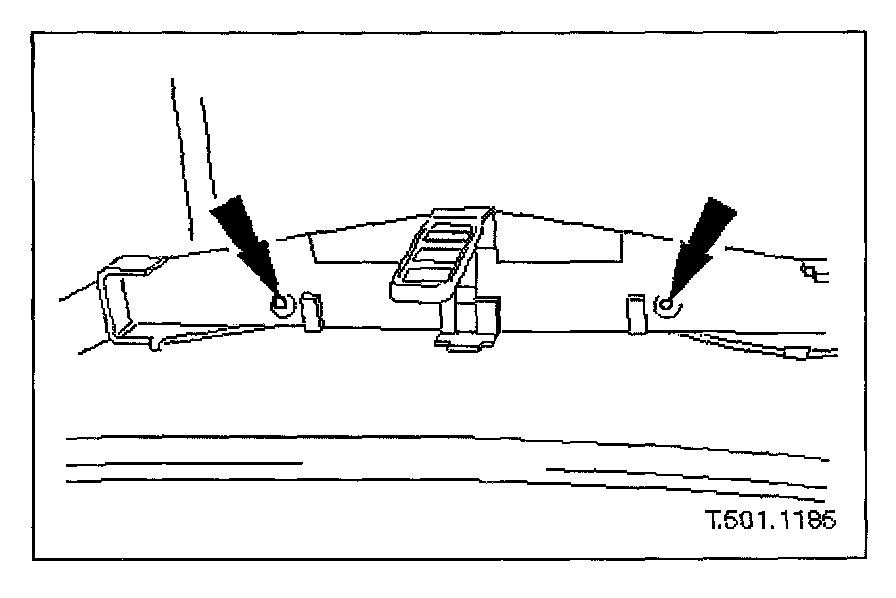

4. Remove covers from trunk latch finisher securing bolts, slacken and remove bolts and remove finisher.

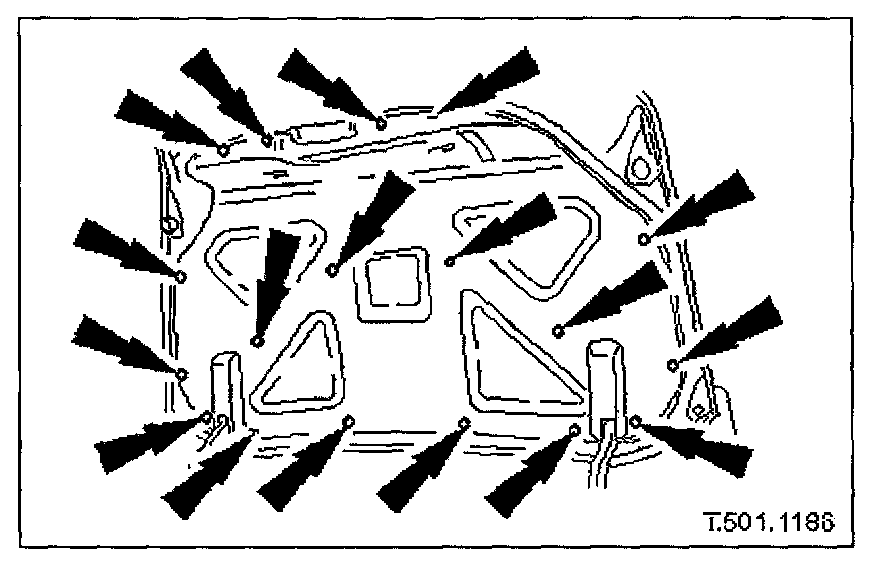

5. Remove and discard the eighteen trunk lid liner fasteners and remove liner from vehicle.

Installation
1. Position liner on trunk lid and pass lamp harness multiplugs through apertures.
2. Align and fully seat liner on trunk lid and secure with new fasteners.
3. Position finisher over trunk lid latch, fit and tighten securing bolts and fit bolt covers.
4. Position warning triangle mounting bracket and fit and tighten securing screws.
5. Install triangle on mounting bracket and secure with clips.
6. Install trunk lamp assemblies.
