DTC P0715 Input/Turbine Speed Sensor Circuit MalfunctionPossible Source(s):
^ Speed sensor n2 or supply open circuit
^ Speed sensor n3
^ Harness fault
^ Connector pins(s) bent, loose or corroded
Action(s) to take:
^ GO to [Pinpoint Test F]
Pinpoint test F: P0715
TEST F: RETRIEVE DTCS
NOTE: Battery and or ECM disconnection prior to scanning will erase all data, ensure that the correct DTC is present.
Connect scan tool
Record DTC(s), freeze frame data and
GO to [F2]
F2: CHECK HARNESS +VE CONTINUITY

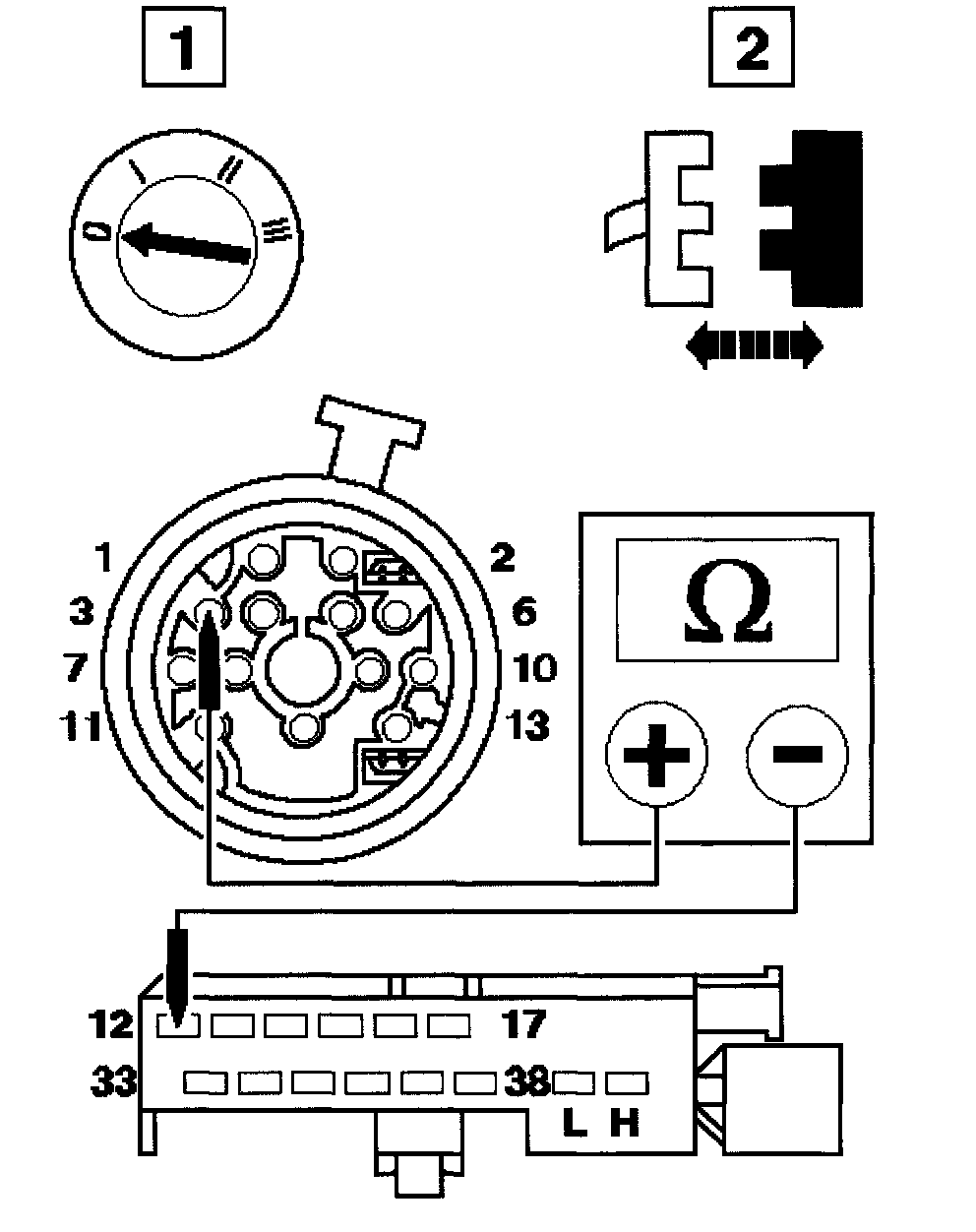

With EM062 and GB001 disconnected, measure the resistance between GB001/007 and EM062/013
^ Is the resistance < 0.5 Ohms?
Yes
Reconnect GB001
GO to [F3]
No
Inspect EM062, EM044 and GB001 for corrosion, bent/pushed back pins or locate harness. Repair as necessary and test the system for normal operation.
F3: CHECK HARNESS -VE CONTINUITY

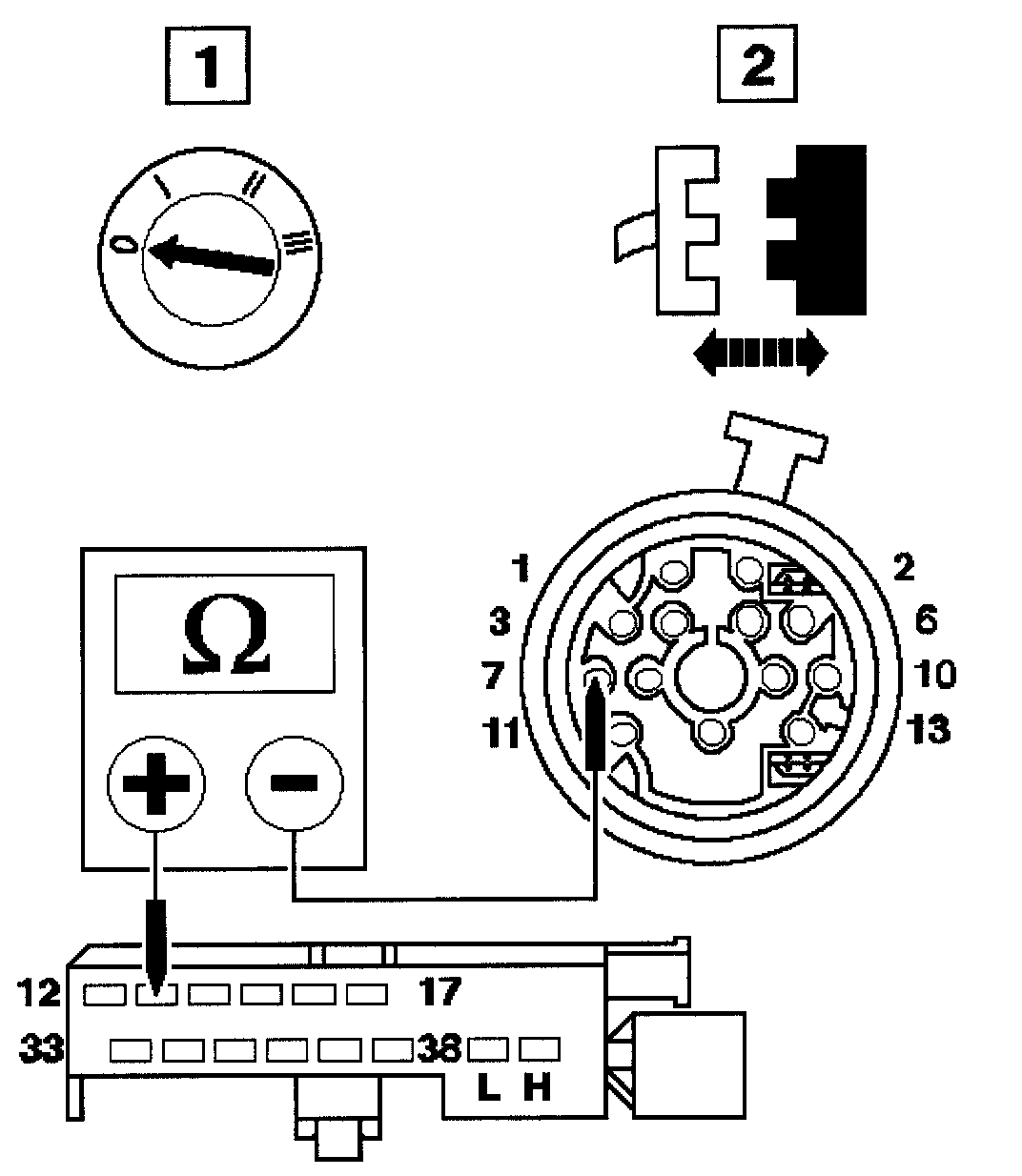

With EM062 and GB001 disconnected, measure the resistance between GB001/012 and EM062/033
^ Is the resistance < 0.5 Ohms?
Yes
GO to [F4]
No
Inspect EM062, EM044 and GB001 for corrosion, bent/pushed back pins or locate harness. Repair as necessary and test the system for normal operation.

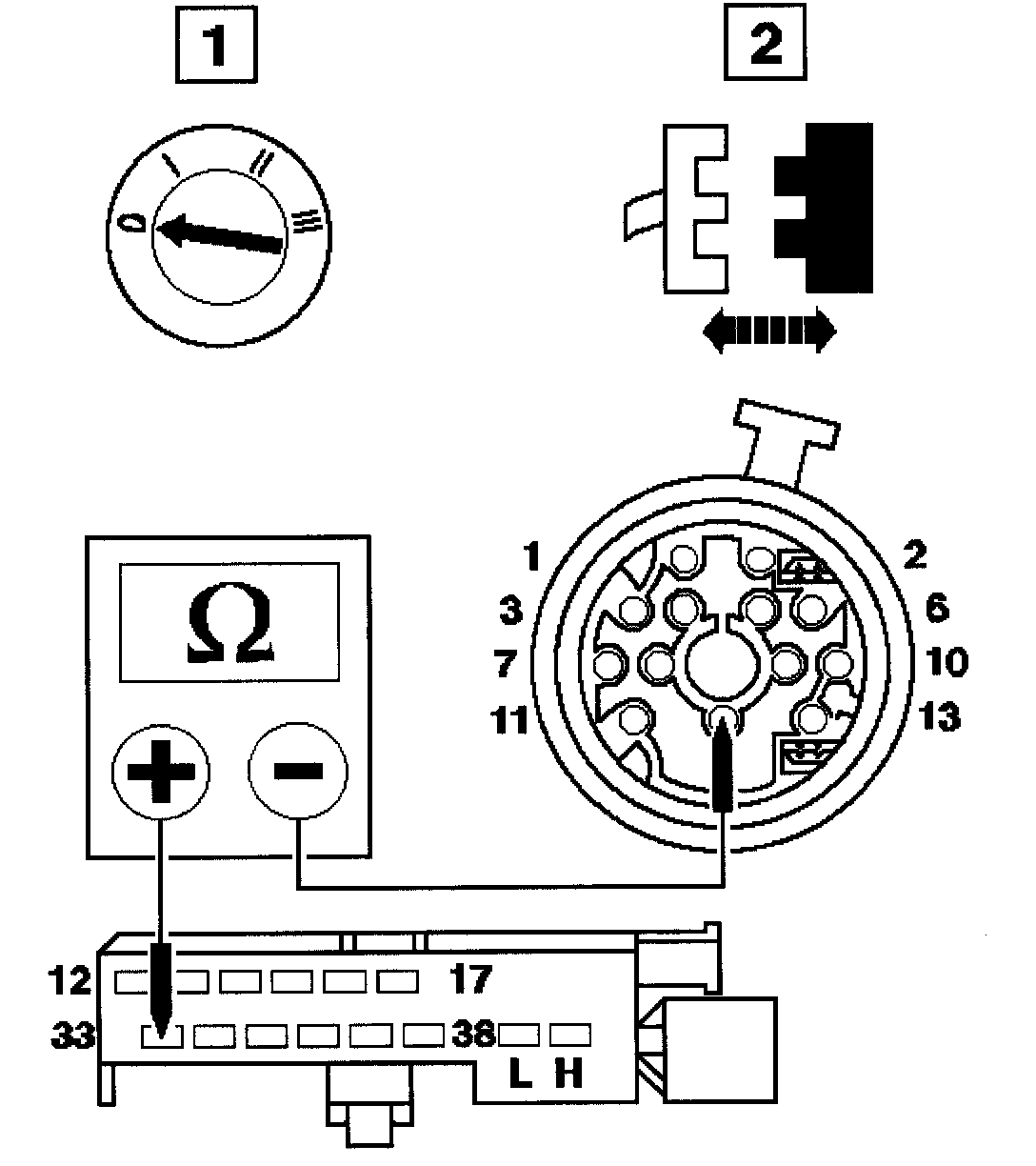

F4: CHECK SIGNAL CONTINUITY (N2 SPEED SENSOR)
With EM062 and GB001 disconnected, measure the resistance between GB001/003 and EM062/012
^ Is the resistance < 0.5 Ohms?
Yes
Reconnect GB001
GO to [F5]
No
Inspect EM062, EM044 and GB001 for corrosion, bent/pushed back pins or locate harness. Repair as necessary and test the system for normal operation.

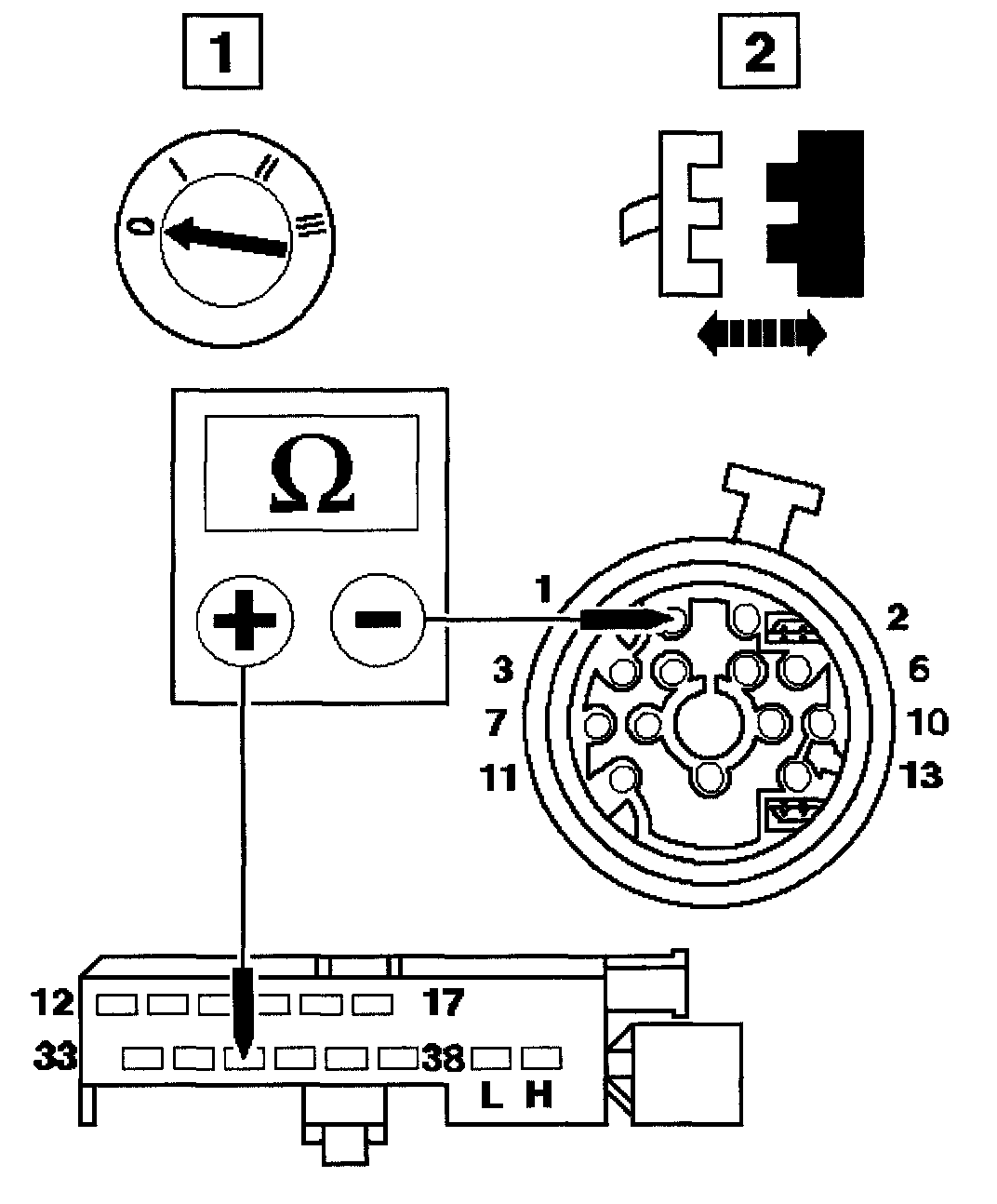

F5: CHECK SIGNAL CONTINUITY (N3 SPEED SENSOR)
With EM062 and GB001 disconnected, measure the resistance between GB001/001 and EM062/035
^ Is the resistance < 0.5 Ohms?
Yes
GO to [F6]
No
Inspect EM062, EM044 and GB001 for corrosion, bent/pushed back pins or locate harness. Repair as necessary and test the system for normal operation.
F6: END
Perform appropriate service drive cycle and check for the presence of DTC
^ Has the fault code cleared?
Yes
STOP
No
Contact Jaguar Service
