H16: O2 Sensor Screen Ground Continuity

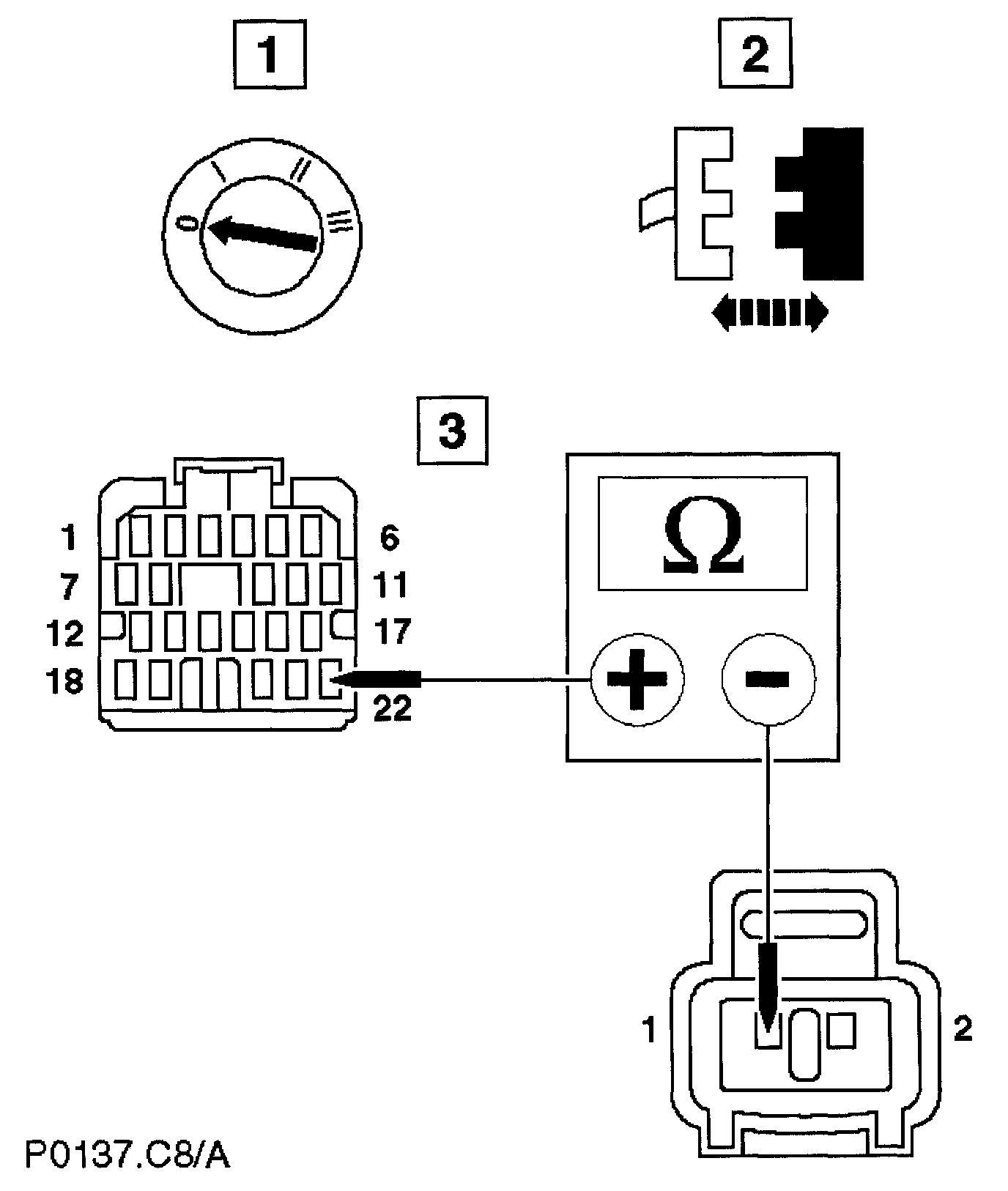

With EM012 and EM024 disconnected, measure the resistance between EM012/022 and EM024/001.

Is the resistance < 0.5 ohms?

Yes
GO to H17, H17: Check For Short to B+

No
Inspect harness/connectors EM012 and EM024 for corrosion, damaged/pushed back pins.
Repair as required and reconnect plug(s).
GO to H21, H21: End
