H12: Signal Ground 1 Continuity

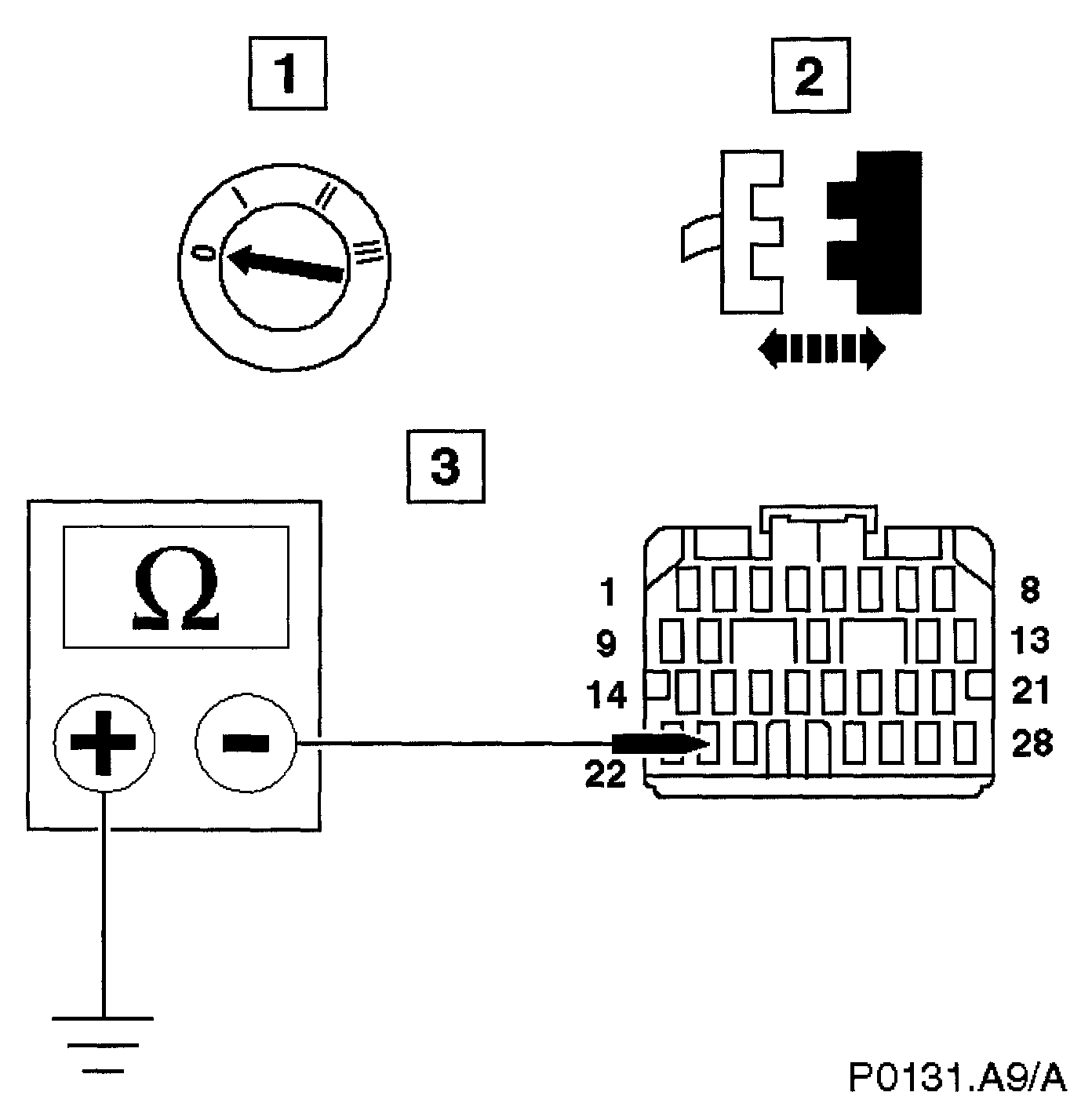

With EM010 and EM014 disconnected, measure the resistance between EM010/023 and chassis ground EM008L.

Is the resistance < 0.5 ohms?

Yes
GO to H13, H13: Signal Ground 2 Continuity

No
Inspect harness/connector EM010 for corrosion, damage, or pushed back pin.
Inspect ground stud EM008L for corrosion or damage.
Inspect harness/splice EMS36 for damage.
Repair as required and reconnect plug(s).
GO to H14, H14: Stop
