G14: Check For O2 Sensor Continuity

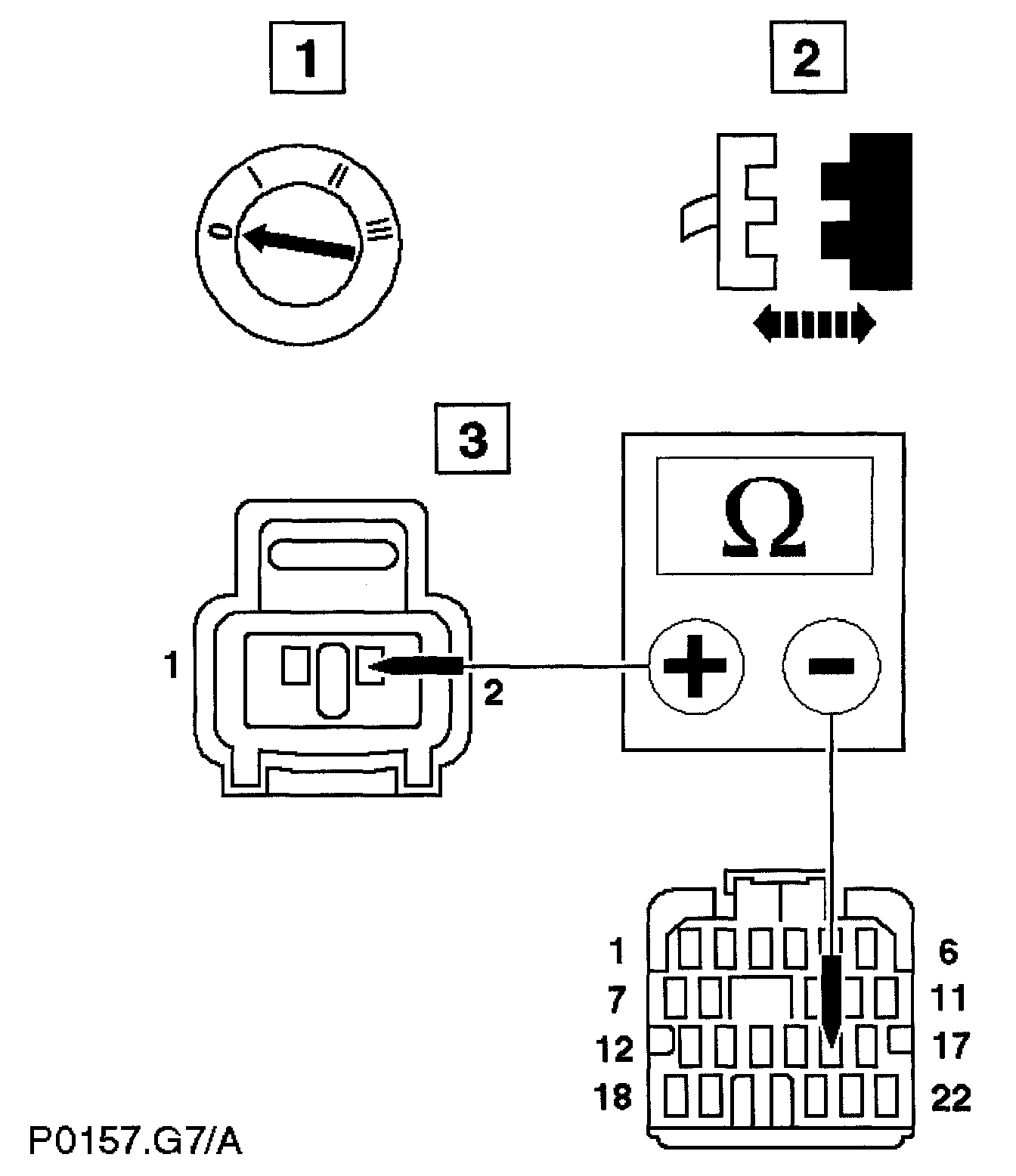

With EM012 and EM024 disconnected, measure the resistance between EM012/016 and EM024/002.

Is the resistance < 0.5 ohms?

Yes

GO to G15, G15: O2 Sensor Screen Ground Continuity

No
Inspect harness/connectors EM012, and EM024 for corrosion, damaged/pushed back pins.
Repair as required and reconnect plug(s).
GO to G20, G20: End
