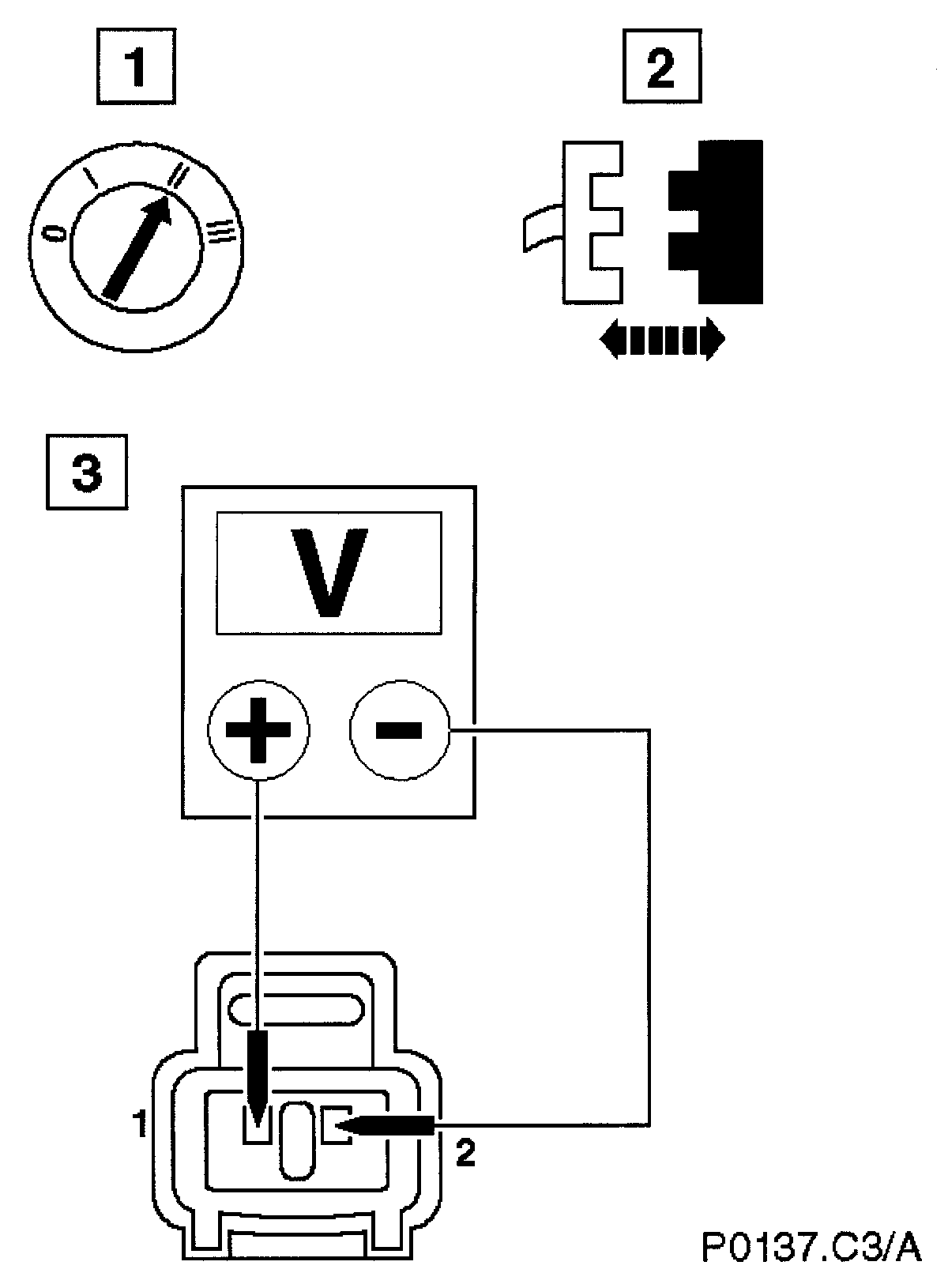

G4: Check For O2 Sensor Failure









With the conditions held as G3, suddenly accelerate to approximately 2500 rpm.

Has the voltage risen to between 600mV and 1 volt?

Yes

GO to G5, G5: Check For O2 Sensor Failure

No
Renew O2 sensor and reconnect plug(s).
GO to G6, G6: Stop
