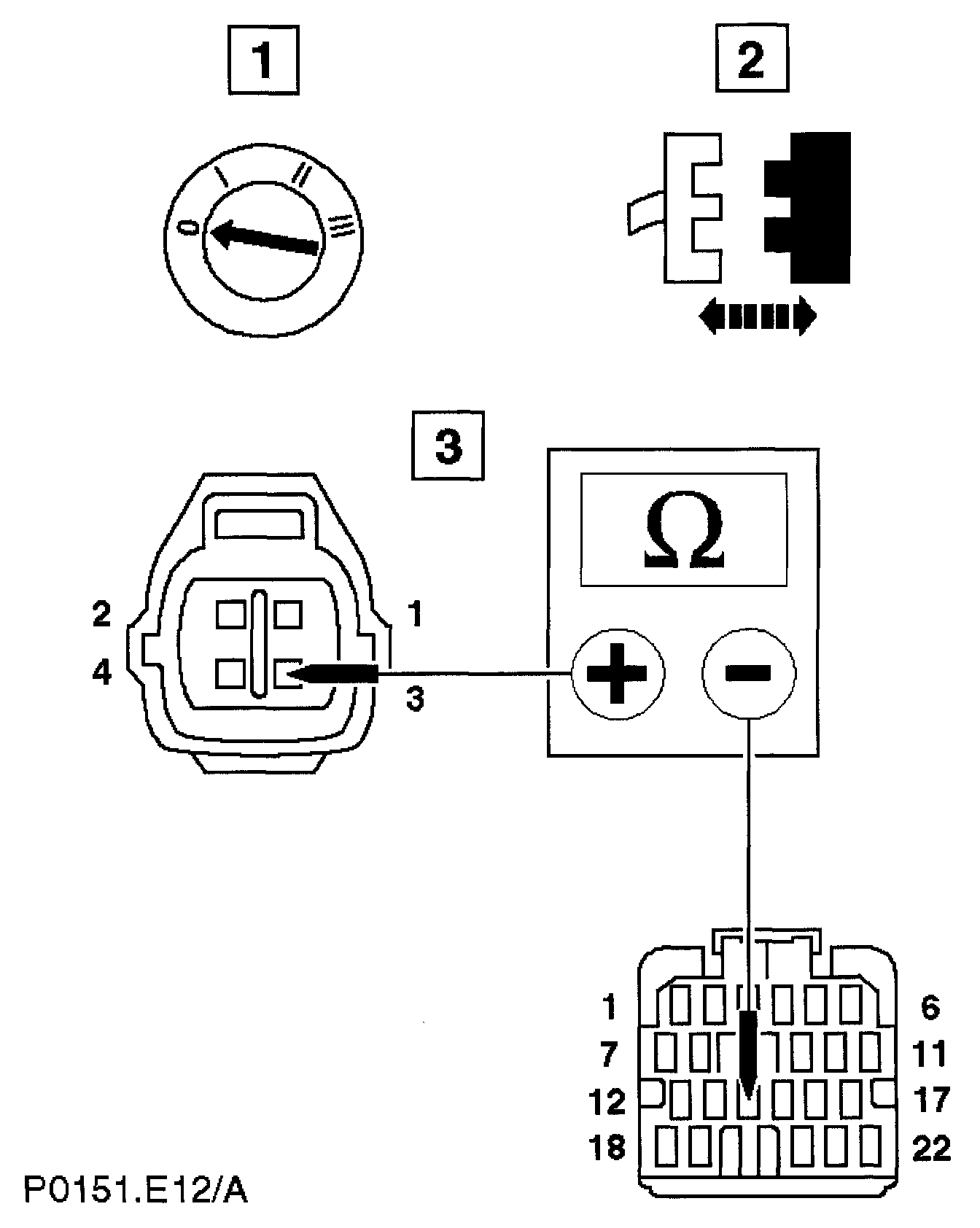

E12: Check For Heated O2 Sensor Continuity









With EM012 and EM023 disconnected, measure the resistance between EM012/014 and EM023/003.

Is the resistance < 0.5 ohms?

Yes

GO to E13, E13: Heated O2 Sensor Screen Ground Continuity

No
Inspect harness/connectors EM012, and EM023 for corrosion, damaged/pushed back pins.
Repair as required and reconnect plug(s).
GO to E18, E18: End
