E10: Signal Ground 2 Continuity

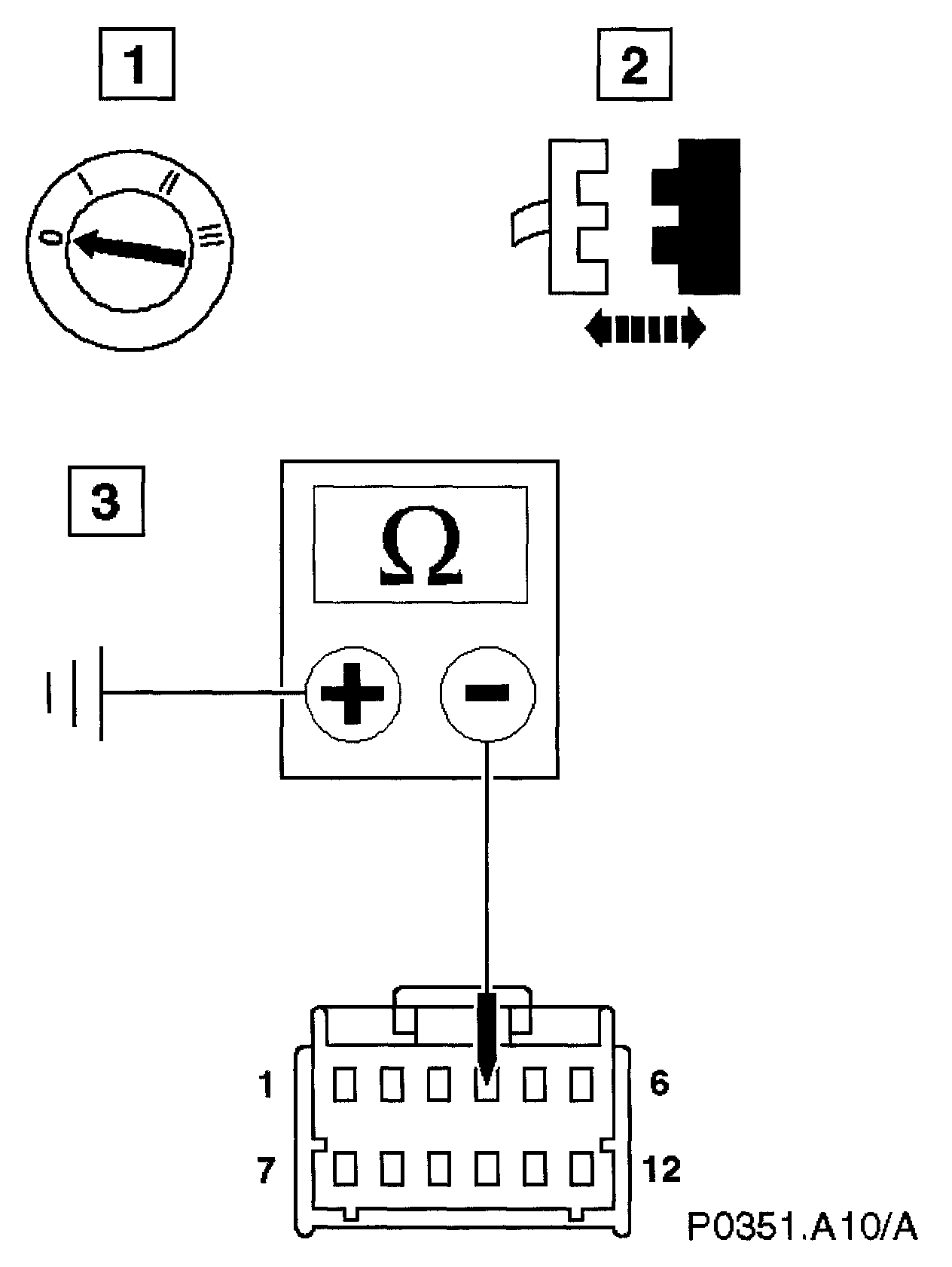

With EM010 and EM014 disconnected, measure the resistance between EM014/004 and chassis ground EM008L.

Is the resistance < 0.5 ohms?

Yes

GO to E12, E12: Check For Heated O2 Sensor Continuity

No
Inspect harness/connector EM014 for corrosion, damage, or pushed back pin.
Inspect ground stud EM008L for corrosion or damage.
Inspect harness/splice EMS36 for damage.
Repair as required and reconnect plug(s).
GO to E11, E11: Stop
