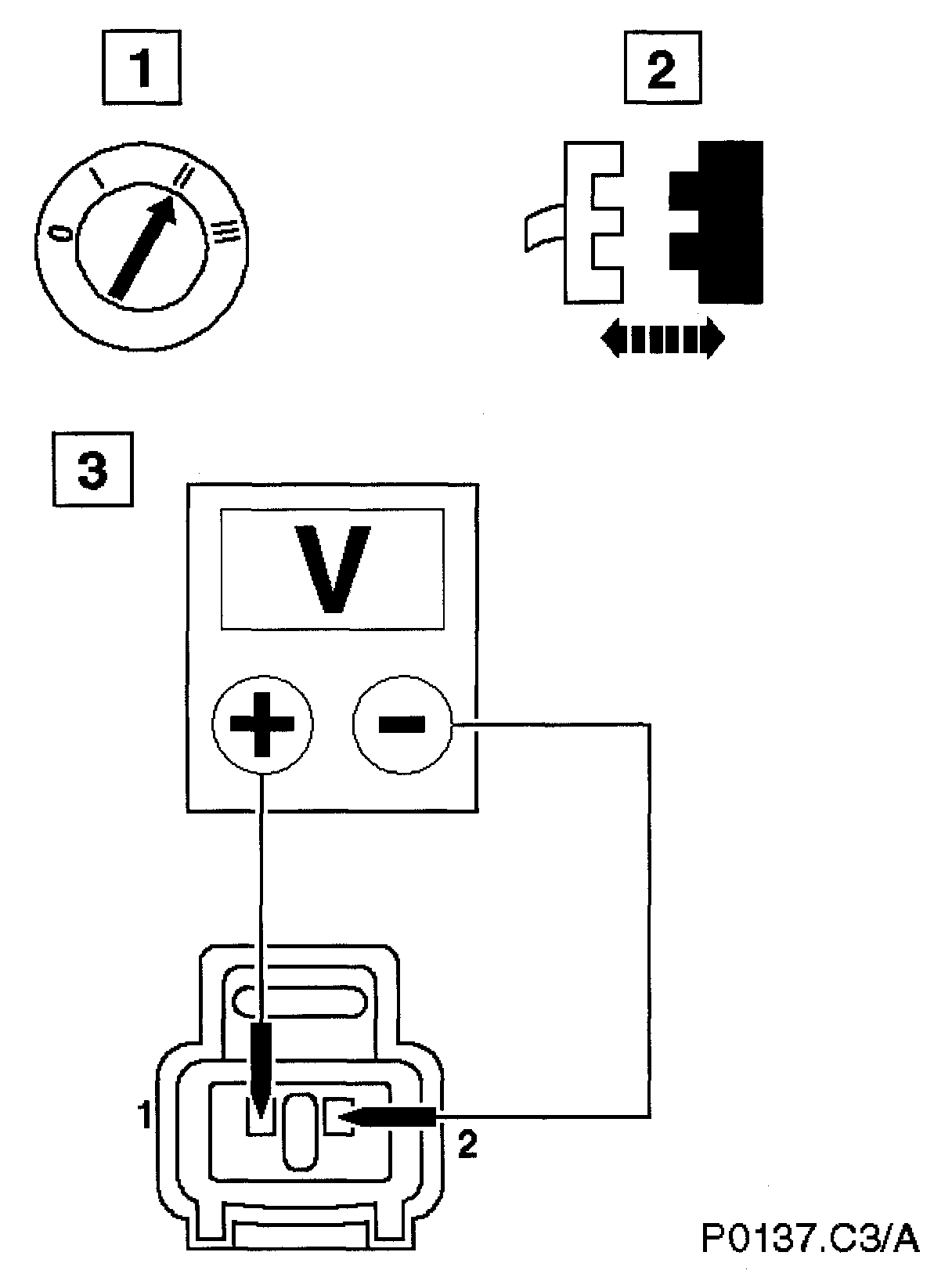

D4: Check For O2 Sensor Failure









With the conditions held as D3, suddenly decelerate to idle.

Has the voltage dropped to 400mV or less?

Yes

Stop the engine
GO to D5, D5: Check For O2 Sensor Failure

No
Renew O2 sensor. Reconnect plug(s)
GO to D7, D7: Stop
