D18: Check For Short to B+

Measure the voltage between EM010/023 and EM012/022.

Is the voltage 0 V?

Yes
GO to D19, D19 Check Harness Short to Ground

No

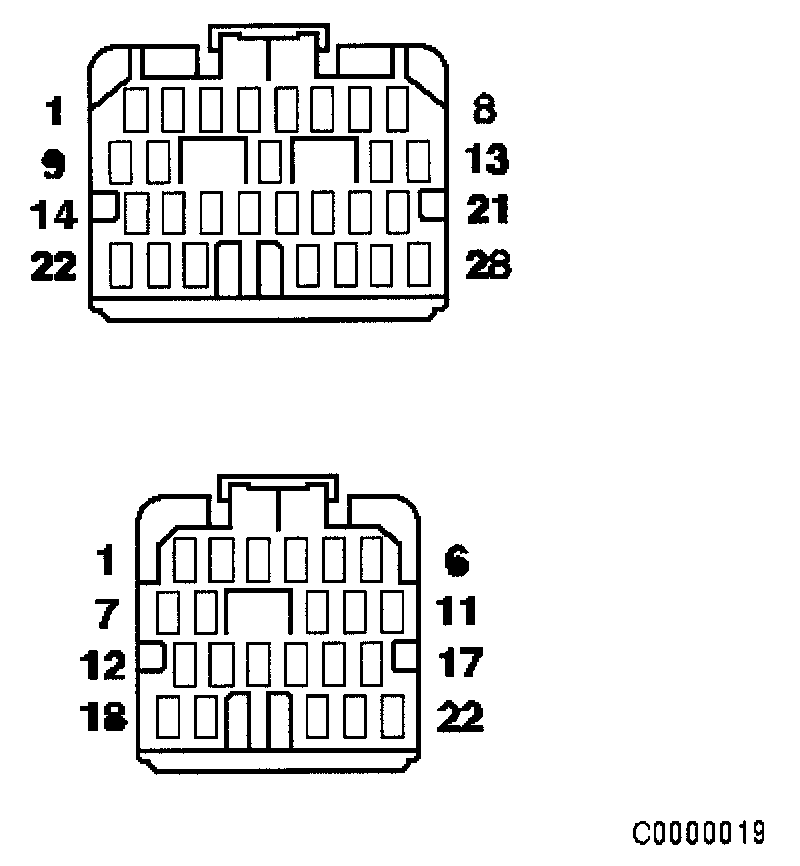

Inspect harness/connectors EM010, EM012 and EM022 for corrosion, damaged/pushed back pins.
Repair as required and reconnect plug(s).
GO to D21, D21: End
