Input Speed Sensor

Removal
1. Open the driver's door, or both doors if necessary, to allow the side glass to drop. Ensure that the doors remain open until after the battery has been disconnected.
2. Disconnect battery ground cable.





Remove the battery cover.

3. WARNING: TRANSMISSION FLUID MAY CAUSE SEVERE BURNS, ENSURE THAT ALL SAFETY PROCEDURES ARE OBSERVED.

Raise the vehicle on a lift.

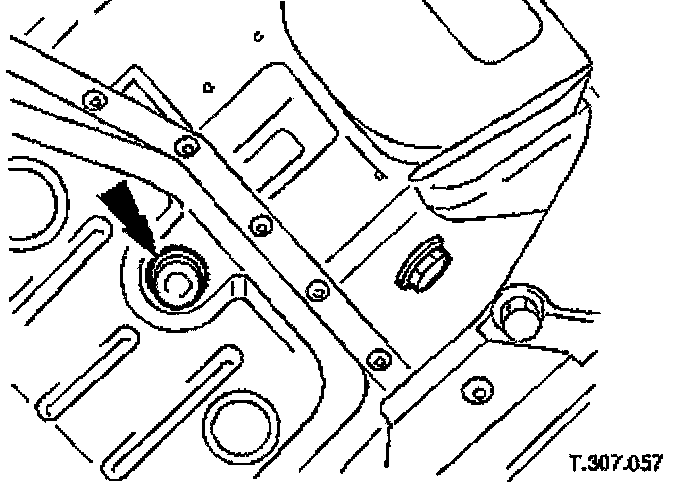

Carefully remove the drain plug and drain the transmission fluid.

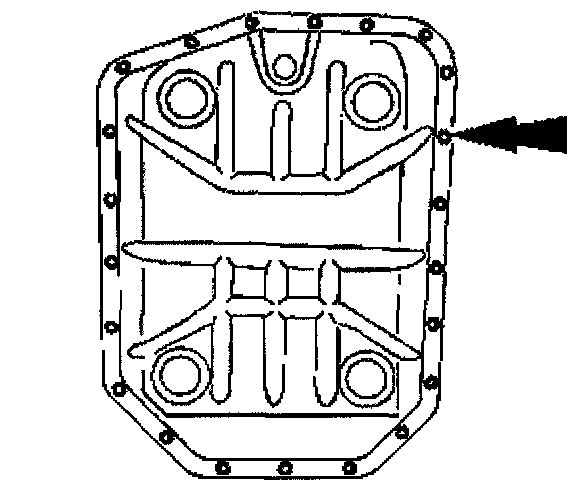

4. Remove the twenty-two bolts which secure the fluid pan.
Remove the fluid pan and all traces of gasket material.

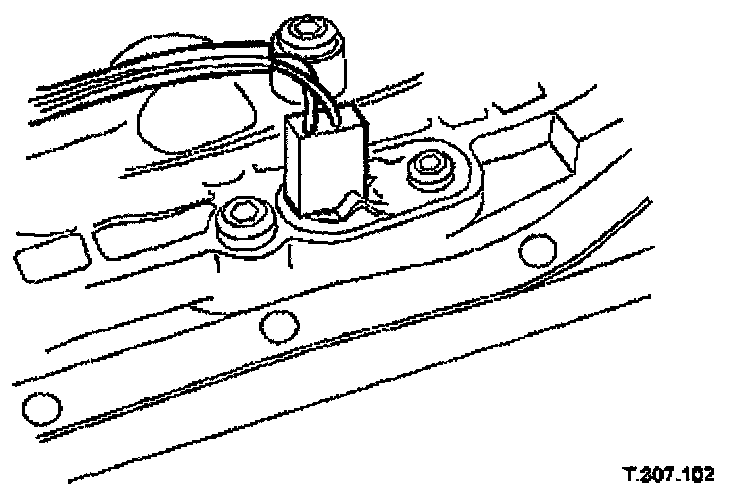

5. Remove the input speed sensor.

NOTE: M5 fixing.

Release the screw which secures the input speed sensor bracket and pull the sensor clear.





6. Disconnect the multiplug from the speed sensor.

Installation

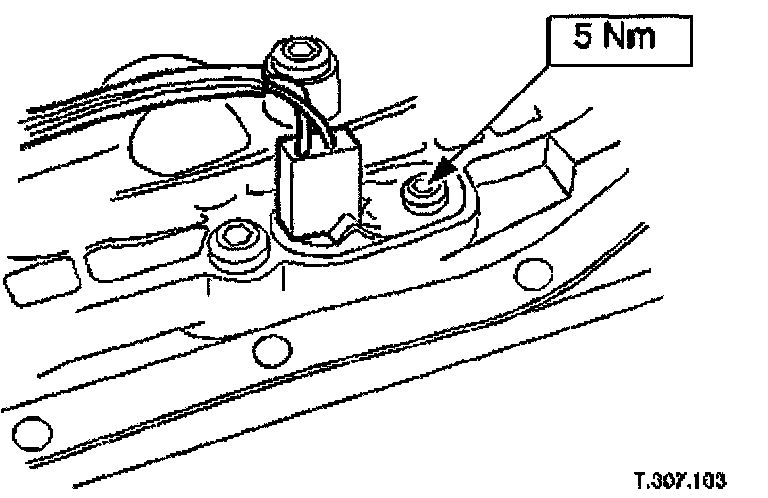

1. NOTE: M5 fixing.





Connect the multiplug, install the input speed sensor and securing bracket. Tighten the screw to the specified torque figure.

2. NOTE: Ensure extreme cleanliness and never reuse transmission fluid.

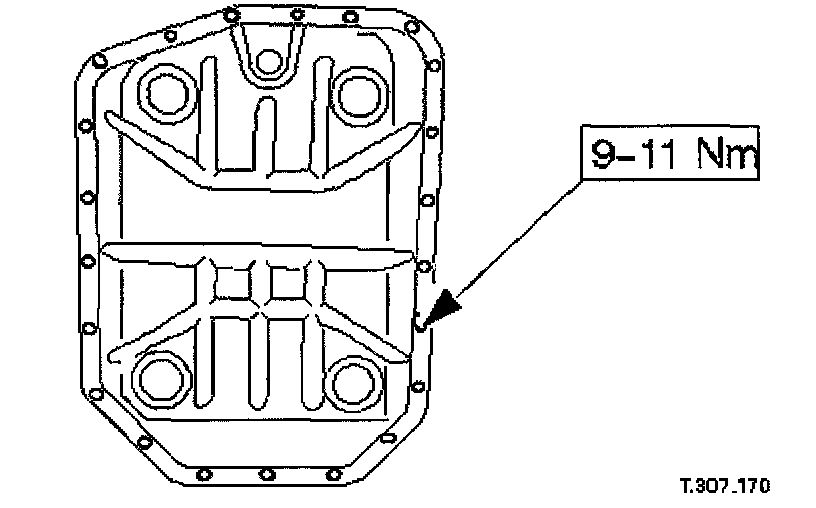

Using a new gasket, install the fluid pan and tighten the twenty-two fixings to the specified torque figure.
3. Perform the Battery Reconnection Procedure described in Starting and Charging.
4. Refer to fluid fill procedure.Fluid - A/T
