Internal Harness Multiplug O-rings

Removal
1. Open the driver's door, or both doors if necessary, to allow the side glass to drop. Ensure that the doors remain open until after the battery has been disconnected.
2. Disconnect battery ground cable.





Remove the battery cover.
3. Raise the vehicle for access.
4. Remove the fluid pan.

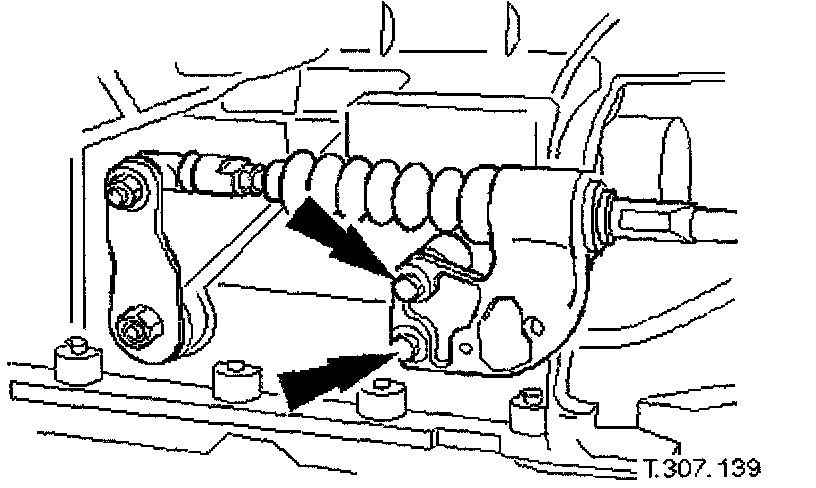

5. Remove selector cable abutment bracket fixings (2) and reposition the bracket for access to the multiplug.

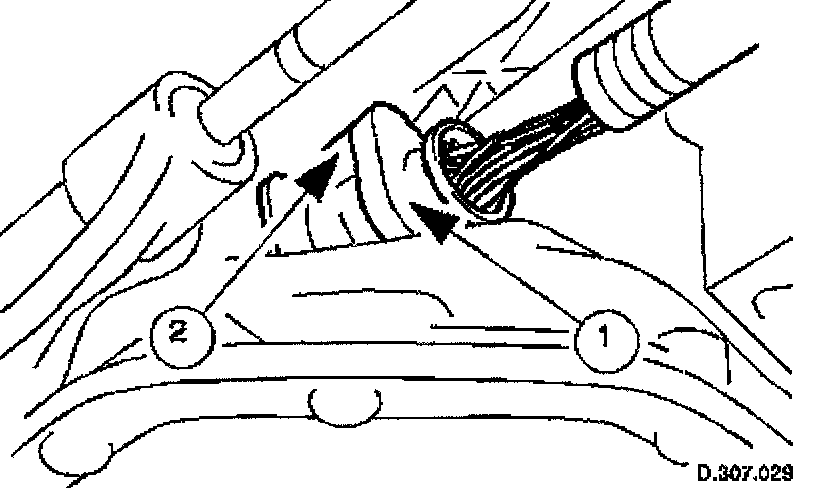

6. Disconnect the transmission harness multiplug.
Release the harness locking lever.
Disconnect the harness multiplug.
7. Remove harness multiplug retaining clip.





Push the multiplug into the transmission casing to release.
Discard the two O-rings.

Installation
1. Installation is the reverse of the removal procedure noting that:
2. Lubricate the new O-rings prior to fitting.

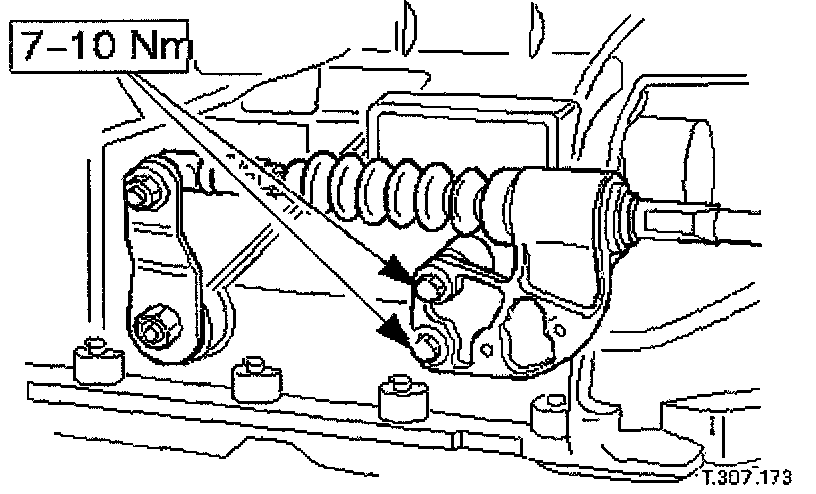

3. Tighten the securing bolts, selector cable bracket to transmission casing, to the specified torque figure.
4. Perform the Battery Reconnection Procedure described in Starting and Charging.
5. Refer to fluid fill procedure. Fluid - A/T
