Transmission Pan Gasket

Removal

1. Raise the vehicle for access and drain the transmission fluid.
2. Remove the fluid pan.





Remove the twenty-two bolts.
3. Discard the fluid pan gasket and clean the mating faces.

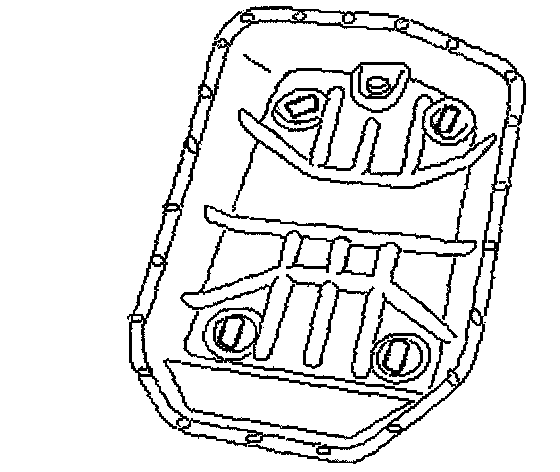

4. Remove the magnets from the fluid pan.
Clean the magnets and refit them to the fluid pan.
Remove and discard the fluid filter.

Installation
1. Installation is the reverse of the removal procedure:





2. Tighten the fluid pan bolts to the specified torque figure.
3. Refill the transmission fluid.
