Front

Stabilizer Bar Link

Removal

1. CAUTION: Replacement of nuts and bolts: Various thread-locking devices are used on nuts and bolts throughout the vehicle. These devices restrict the number of times a nut or bolt can be used.

Open engine compartment and fit paintwork protection covers to fenders.
2. Raise front of vehicle and support on stands.
3. Remove front wheel.

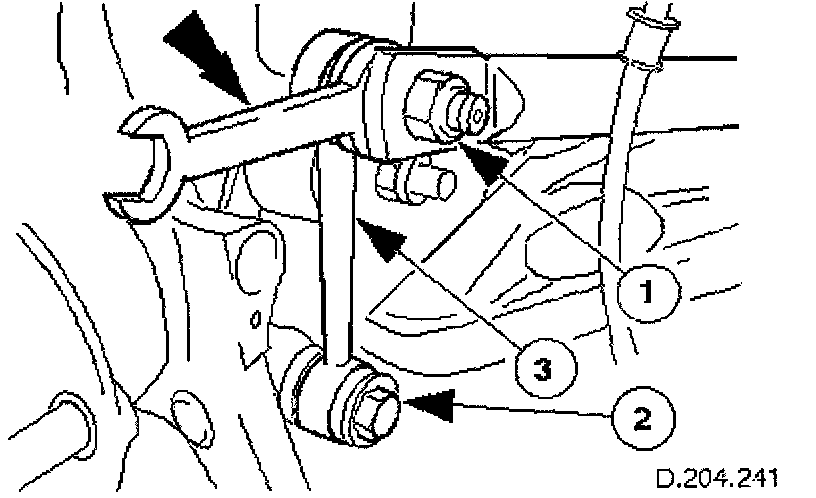

4. Remove link.
Use an open-ended spanner on the ball-pin flats to prevent the dust cover from twisting.
Remove nut.
Remove nut and bolt.
Remove link from stabilizer bar.

5. Clean relevant parts.

Installation

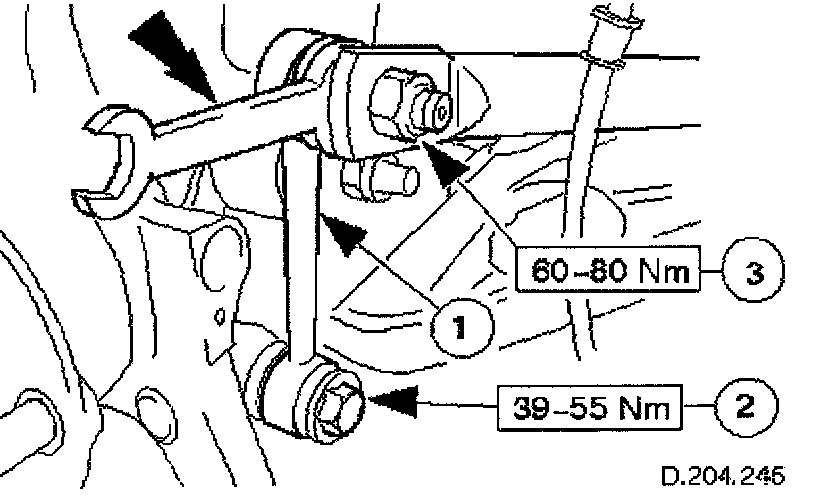

1. Fit link.
Align link to lower wishbone and fit bolt.
Fit and tighten nut.
Use an open-ended spanner on the ball-pin flats to prevent the dust cover from twisting.
Fit and tighten nut.

2. Fit front wheel.
3. Remove stands and lower vehicle.
4. Remove paintwork protection covers.
