Tilt Wheel Motor: Description and Operation

Removal

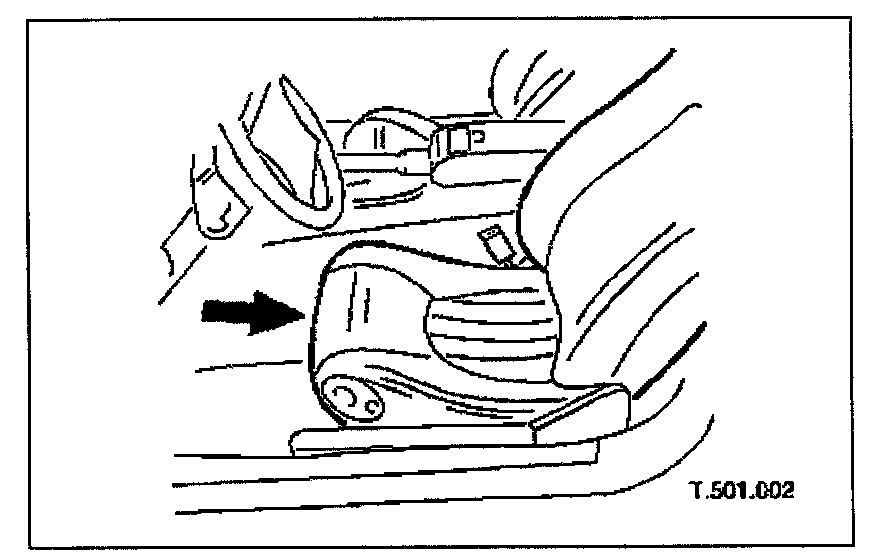

1. Power the driver's seat to the lowest and most rearward position.

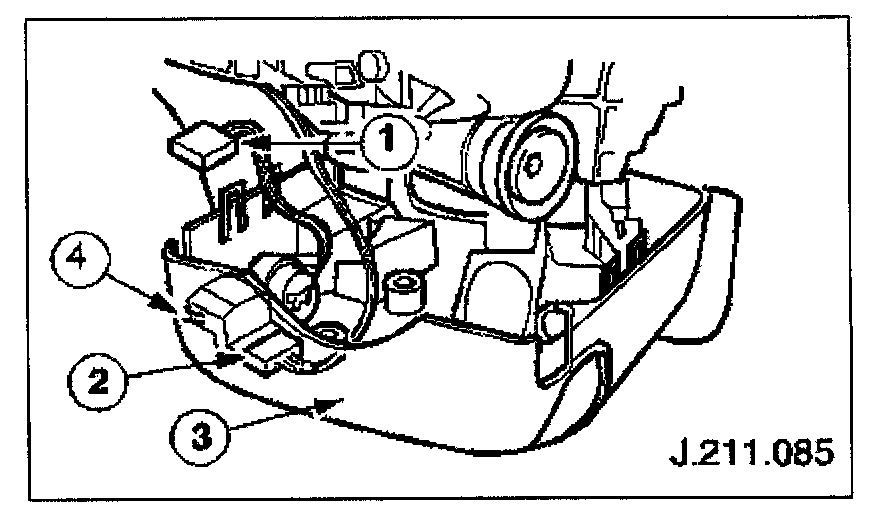

2. Remove the steering column lower cowl






3. Remove the column adjustment switch.
Disconnect the rheostat multiplug.
Disconnect the column switch harness multiplug.
Remove the cowl and switch assembly.
Release the column switch retaining tangs and withdraw the switch.

Installation
1. Installation is the reverse of the removal procedure.
