Power Steering Pump: Description and Operation

Power Assisted Steering Pump

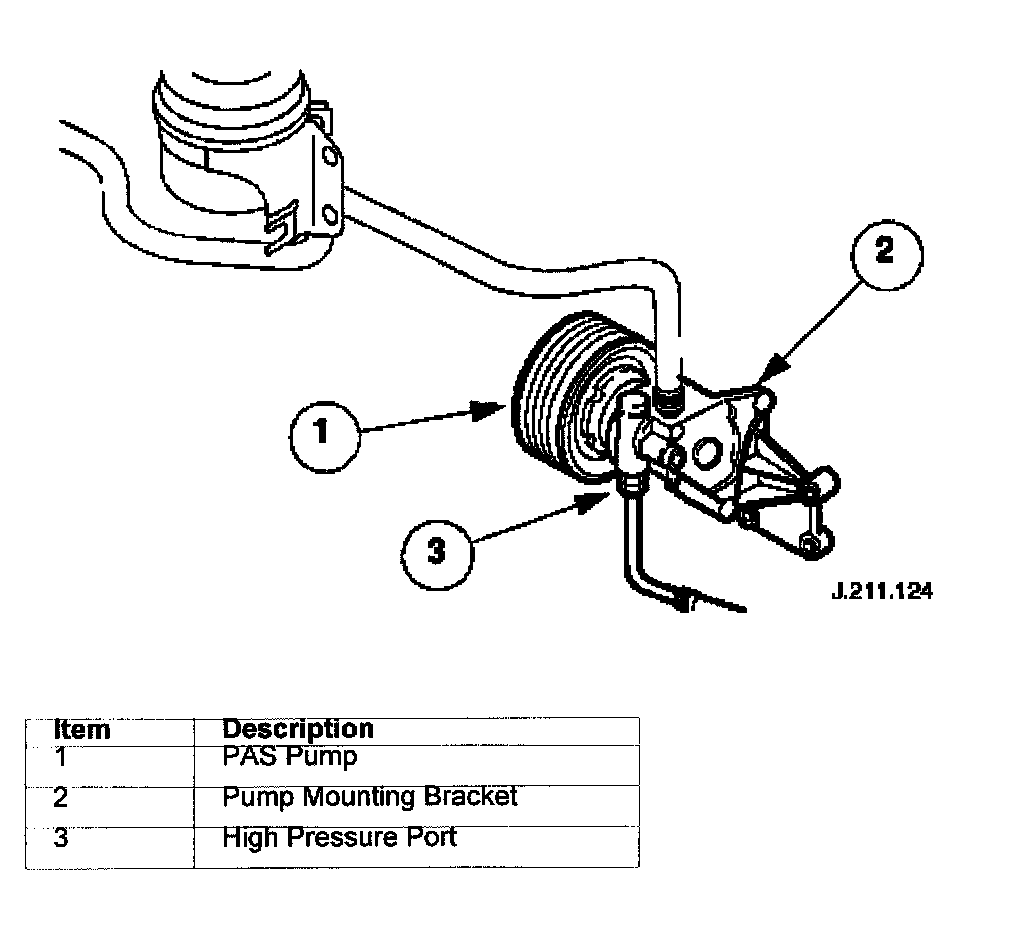

Steering Pump Mounting
The power assisted steering pump:
Is mounted on a bracket installed on the front of the engine.
Is of the roller vane type.
Will provide 110 Bar fluid pressure.
Is belt driven from the engine crankshaft.
Its function is to provide hydraulic pressure for the PAS system.
The pump is not serviceable and should be renewed complete with front bracket and high pressure port.
