Hose - Reservoir to Pump

Hose-Reservoir to Pump

Removal
1. Open engine compartment and fit paintwork protection covers.
2. Place a drain pan under the pump.

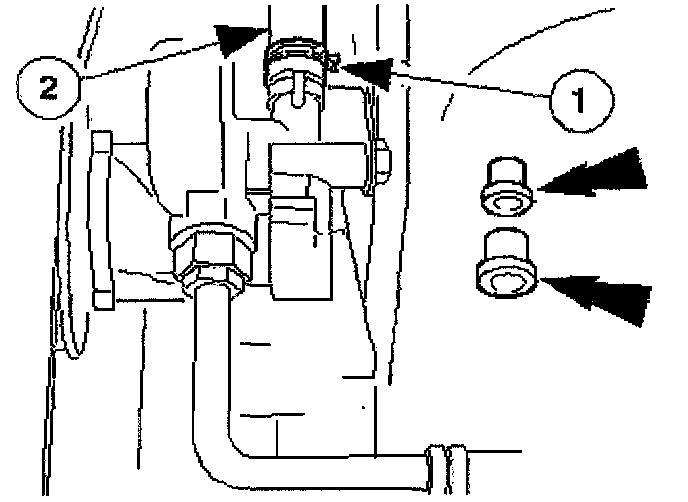

3. Disconnect hose from pump.
Release clip.
Disconnect hose and allow it to drain.
Fit blanking plugs to pump and hose.

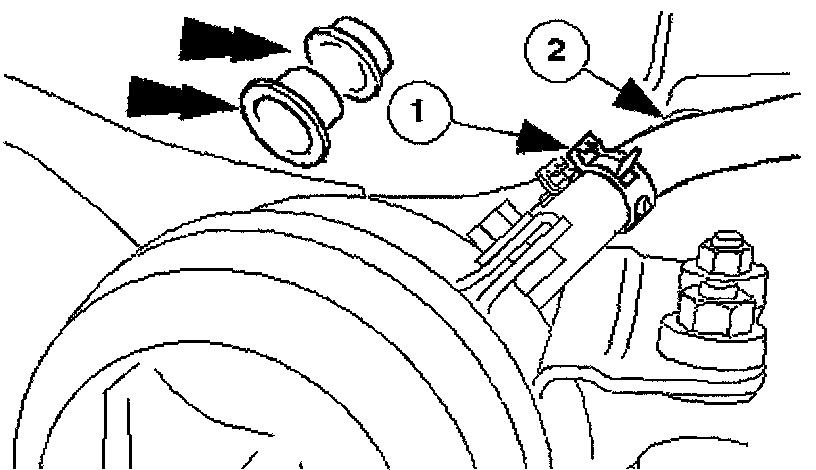

4. Disconnect hose from reservoir.
Release clip.
Disconnect hose.
Fit blanking plugs to reservoir stub pipe and hose.
Remove clips from hose.

5. Remove drain pan and discard fluid.

Installation
1. Installation is reverse of removal procedure.
Refill with new fluid and bleed air from the system.
