Power Steering Line/Hose: Description and Operation

Supply and Return Hoses and Pipework

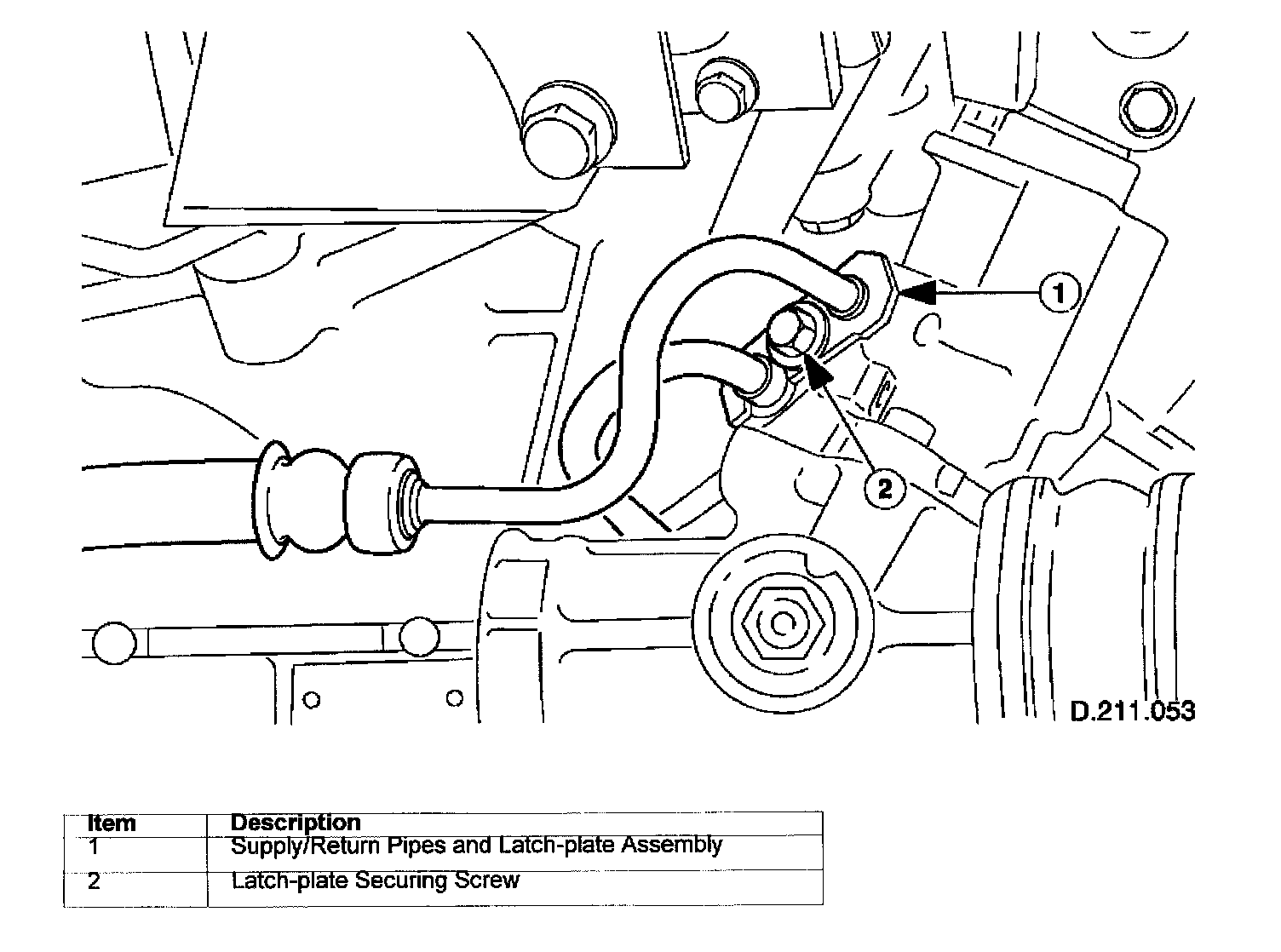

Latch-Plate Location
The supply and return hoses and pipework:
Are secured to the rack housing by a latch-plate and screw.
The supply hose uses a hose clamp to secure it to the reservoir.
The return pipe is mounted and clipped to the rack housing in two resilient mountings.
The hose 'O' rings are serviceable.

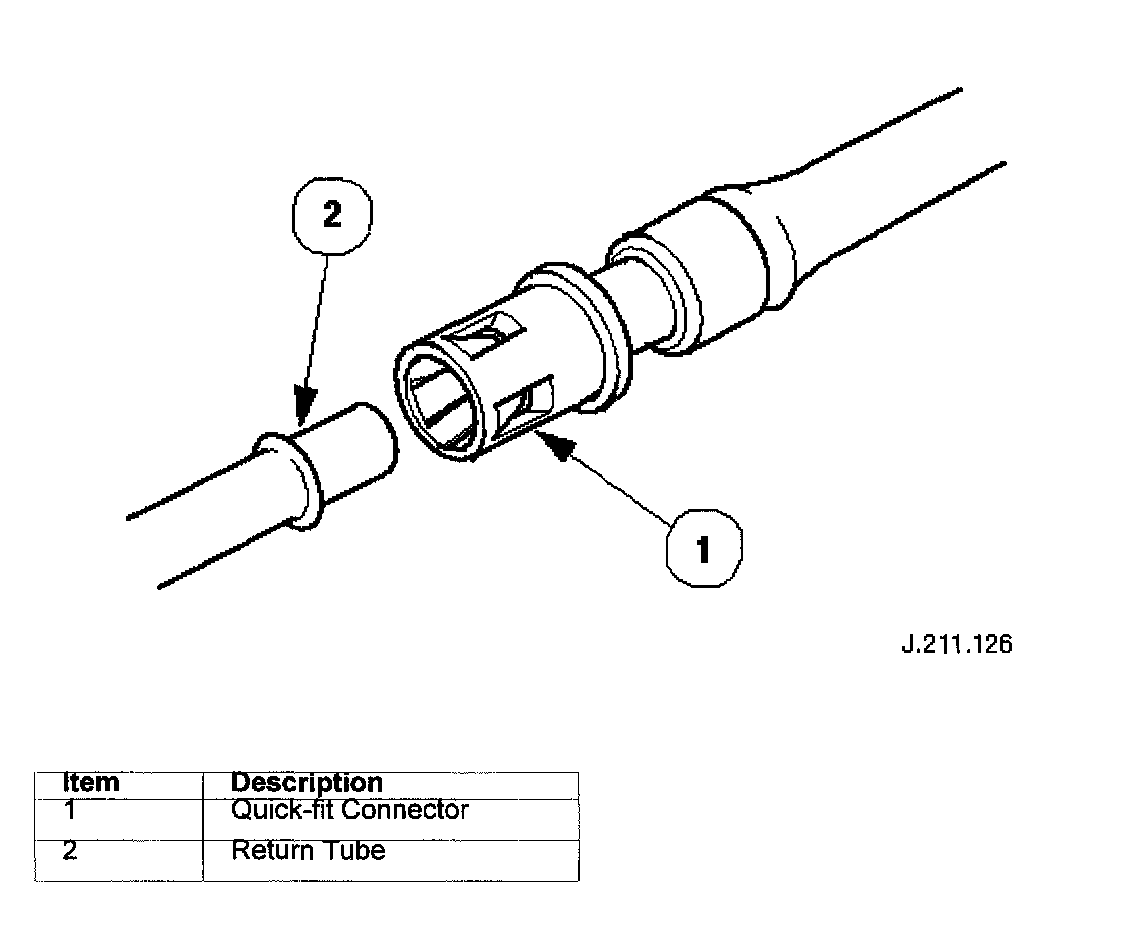

Quick-fit Connector





Connector Details
A quick-fit connector with double 'O' ring seals is incorporated in the return hose and is clipped to the right hand chassis side member.
The hoses and pipework are used to connect the system components together to form a functional system.
All hoses and pipework should be renewed as complete assemblies.
The quick-fit connector 'O' rings are not serviceable.
All hoses and pipework are designed to reduce system noise.
A special tool is necessary to disconnect the quick-fit connector.
