Power Steering Fluid Cooler: Description and Operation

Fluid Cooler

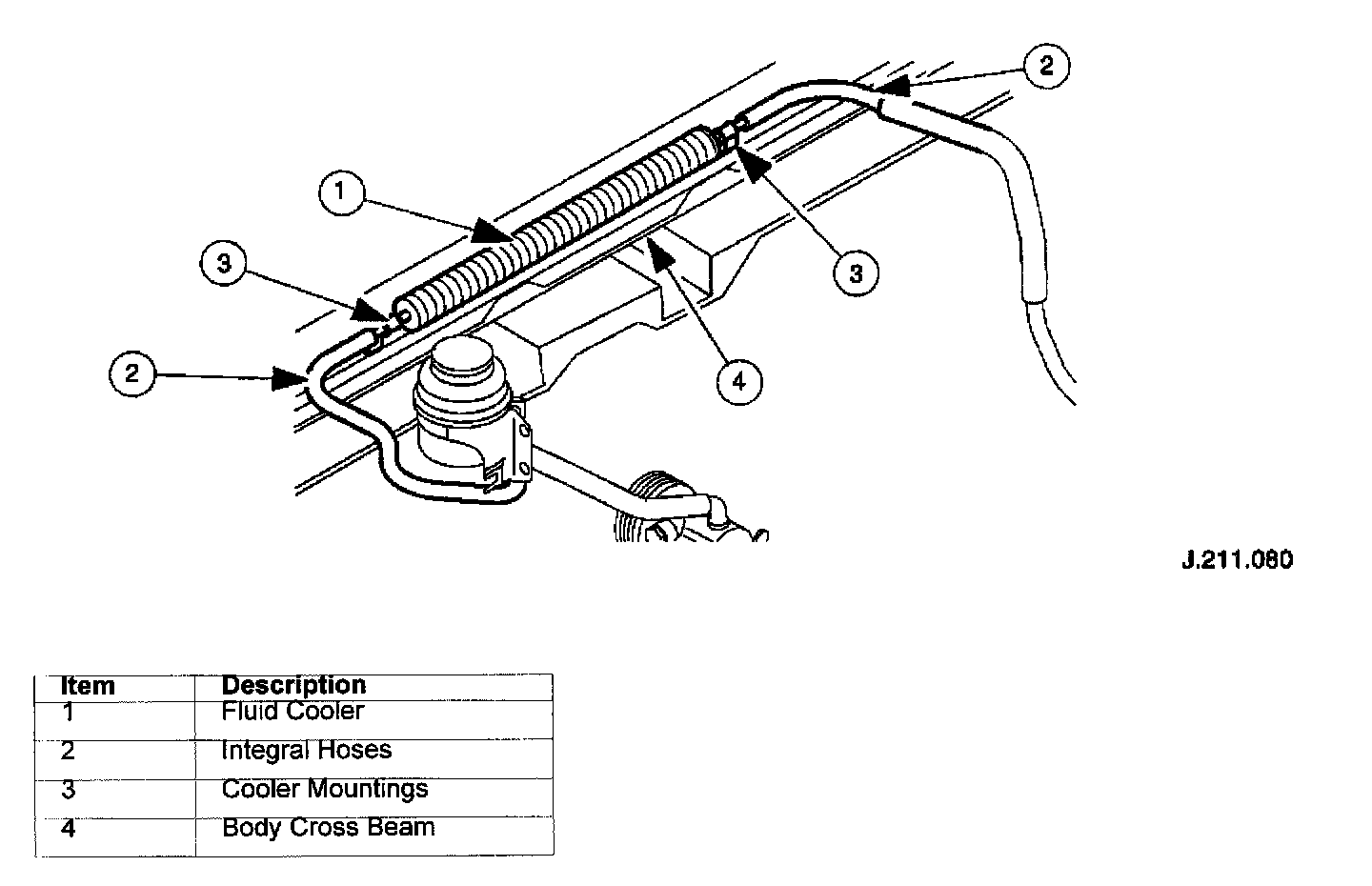

Fluid Cooler Location

Description
The fluid cooler is installed on the body front cross-member:
It is of the wire bound tube type.
Is rubber mounted on the body front cross beam.
Is integral with the return hose.
Its function is to cool the fluid as it returns to the reservoir.
