Engine Compartment Fuse Box

Removal
1. Open the driver's door, or both doors if necessary, to allow the side windows to drop. Ensure that the doors remain open until after the battery has been disconnected.







2. Disconnect the battery ground cable. Service and Repair
- Remove the battery cover.
3. Open the bonnet and fit body paintwork protection sheets.







4. Remove the positive supply power cable.
(1) Reposition the cover from the positive cable.
(2) Remove the nut which secures the positive cable to the fuse-box.
(3) Disconnect the positive power cable.

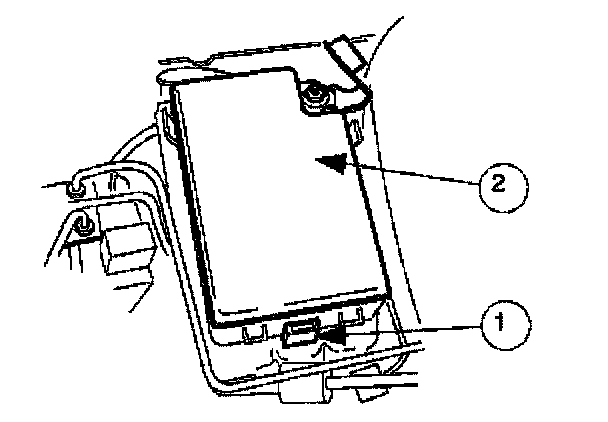

5. Remove the fuse-box from the mounting panel.
(1) Release the securing latch, upwards.
- Reposition the fuse-box, inwards.
- Remove the fuse-box from the mounting pane.
(2) Releases the securing tangs and remove the cover from the fuse-box.







6. Remove the fuse-box.

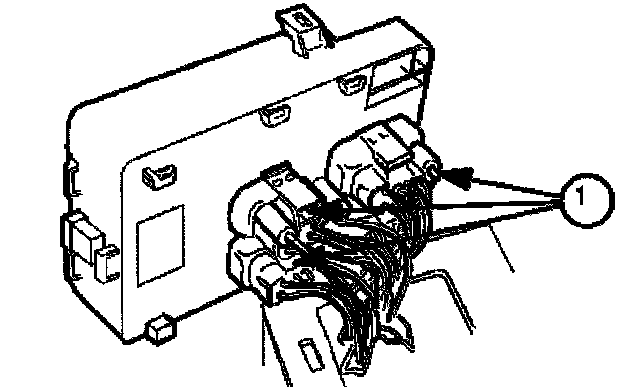

(1) Identify and disconnect the harness multi-plugs from the fuse-box. Remove the fuse-box from the vehicle.







7. Remove the fuses and relays.
(1) Note the position of each relay and remove them.
(2) Identify each fuse and remove them. The value and position of each fuse is illustrated on the lid of the luggage compartment fuse-box - for all fuse-boxes on the vehicle.

Installation
1. Installation is the reverse of removal.
2. Perform the Battery Reconnection Procedure.
