Generator

Features
Manufacturer - Denso
Type - L3B-HE
Drive Ratio - 3.04:1
Output - 120 Amps @ 5000 rpm (generator speed) at 25°C

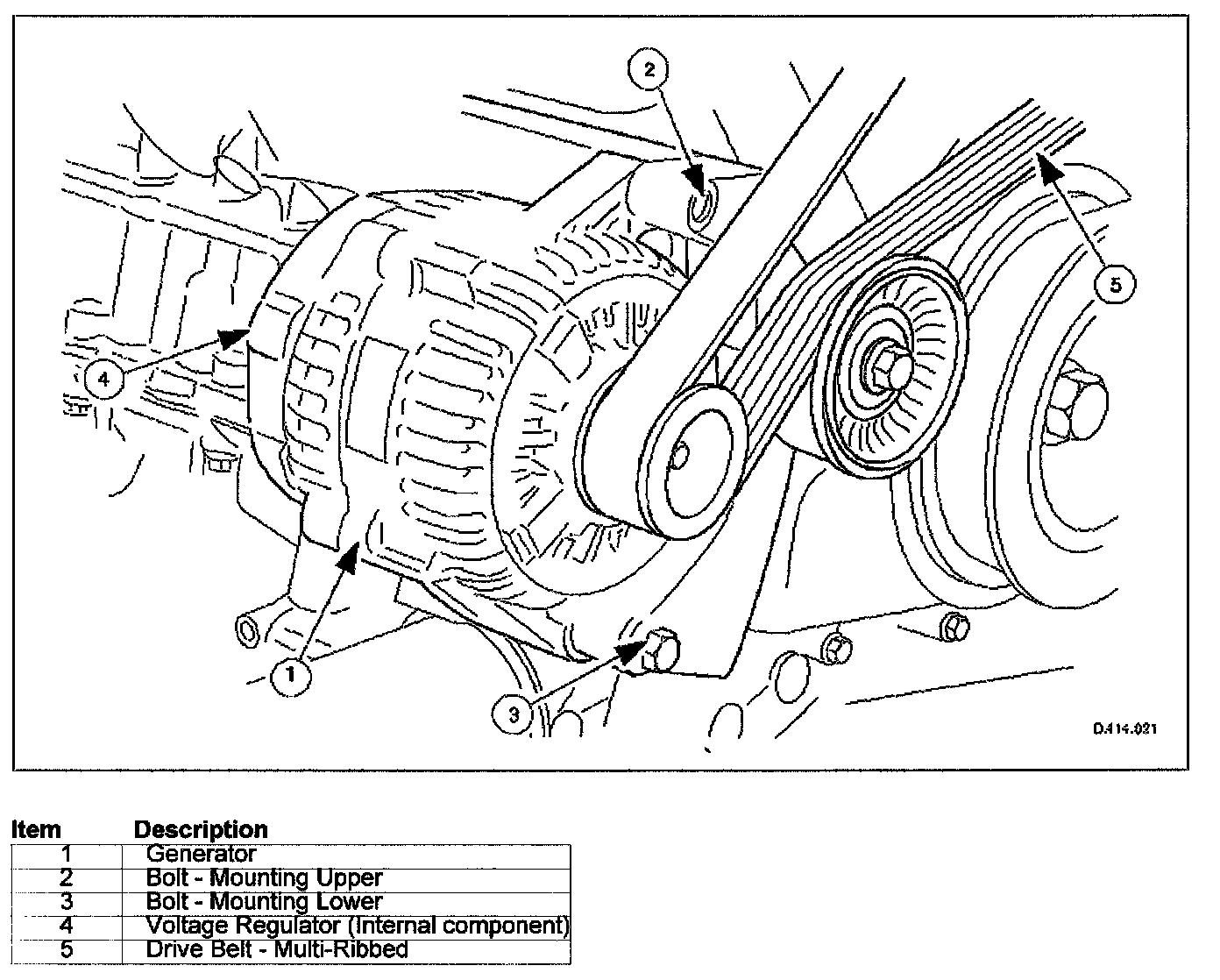

The generator is fitted at the front right hand side of the engine, to a separate mounting bracket, which in turn is bolted to the cylinder block. Two bolts secure the generator to the mounting bracket; one is reached from above and one from below the vehicle.

The voltage regulator is integral with the generator body. Battery charging capability has been optimised for charging a battery which is located remotely, in the luggage compartment. The design of the generator and regulator has been finely matched, to generate charging current with very low ripple. This provides the best electrical refinement to the system.

The generator is driven by a single, multi-ribbed belt which also drives all other front-end accessories. No special service tools are required to remove the generator from the vehicle.

Belt tension is achieved by an automatic tensioner; neither the belt nor the tensioner require service apart from checking the belt wear indicators at each normal service interval.

The minimum service life of the drive belt is 100,000 miles.

Never apply oil to the belt or to the belt tensioner.
