Air Flow Meter/Sensor: Service and Repair

Removal
1. Disconnect battery ground cable. Service and Repair

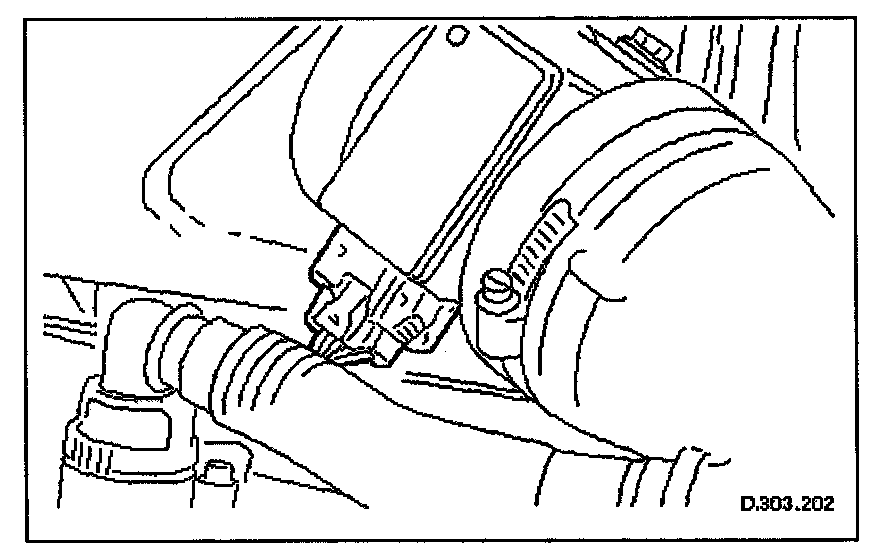

2. Disconnect connector from MAF sensor.

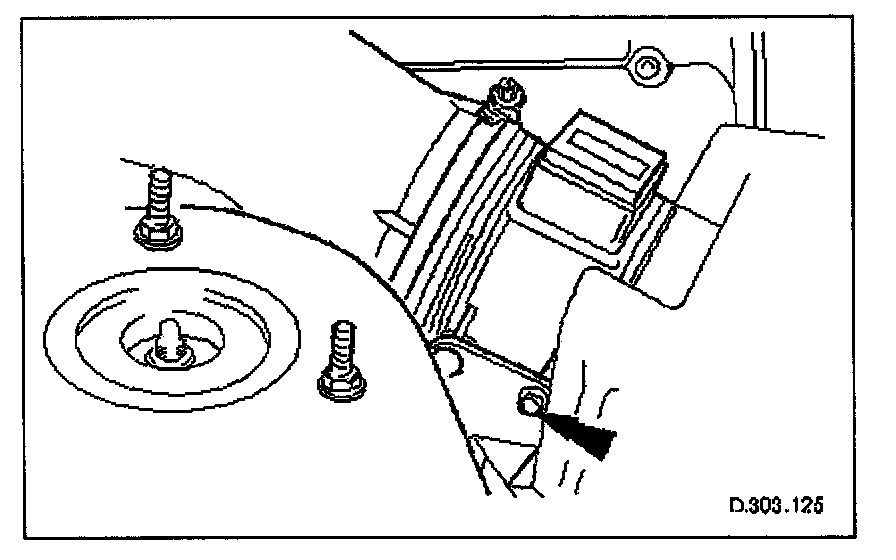

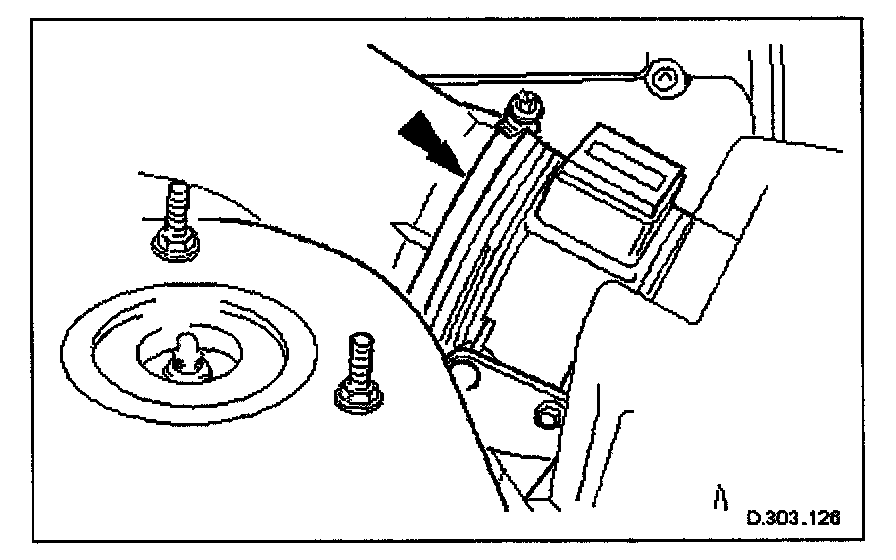

3. Remove bolts securing MAF sensor to air cleaner.

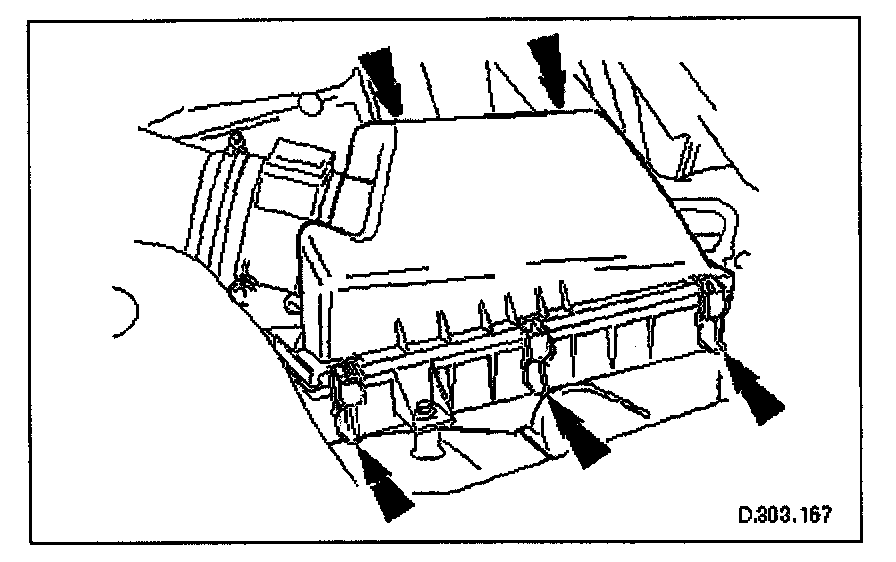

4. Remove air cleaner cover.
Release clips.





5. Release band clip - trunking to MAF sensor and remove assembly.
Discard sensor seals.


Installation

1. Installation is a reversal of the removal procedure. See Battery Reconnection Procedure. Service and Repair

NOTE: Install new seals.
