From VIN 024687
D�:

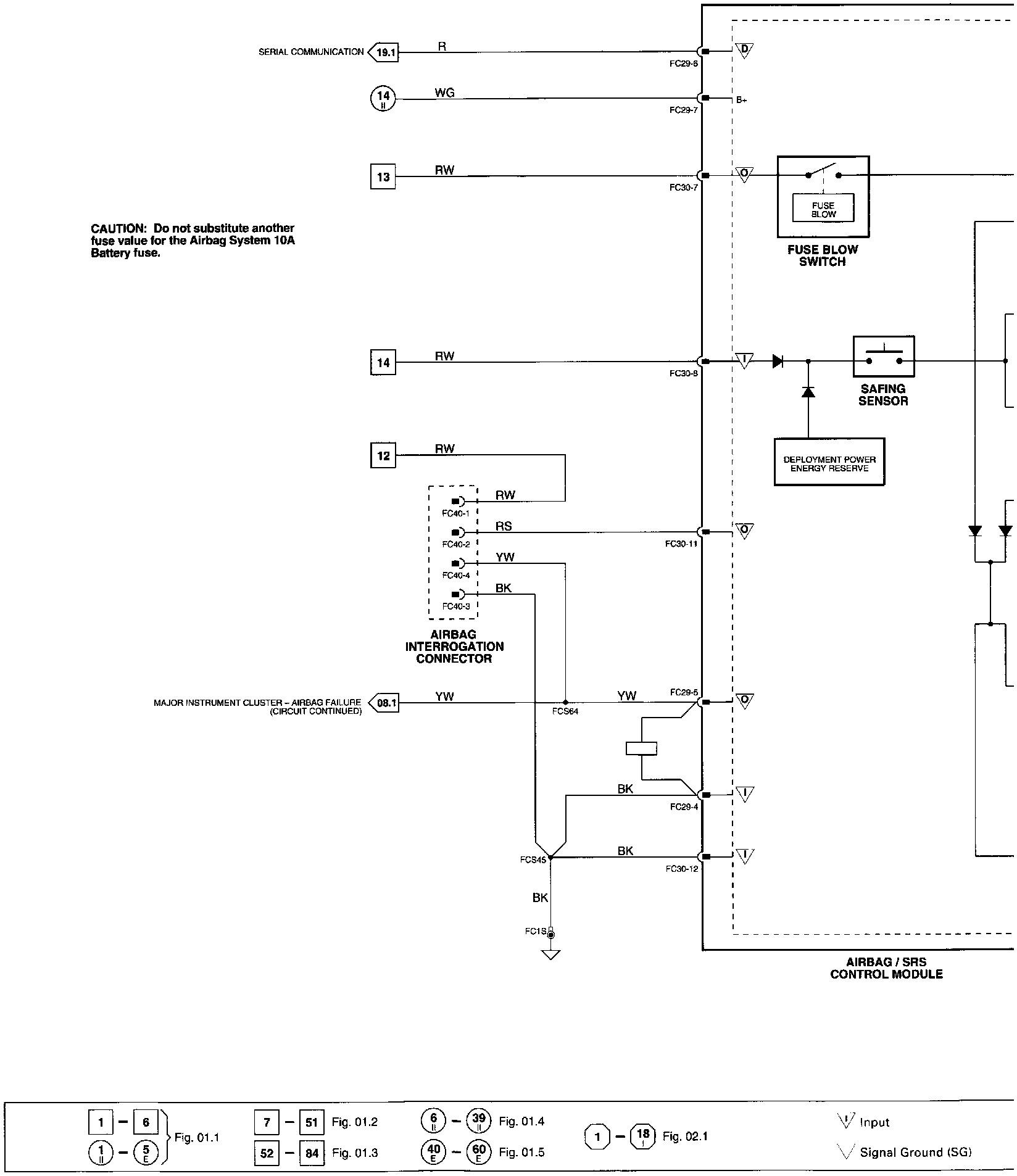

Wiring Diagram
Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

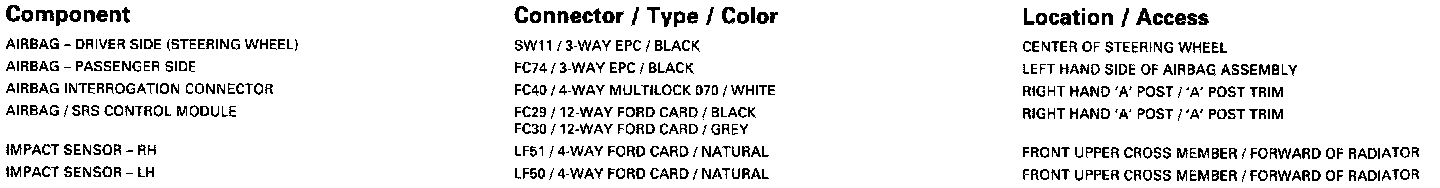

Component Information
Harness to Harness Connector Information
Ground Information

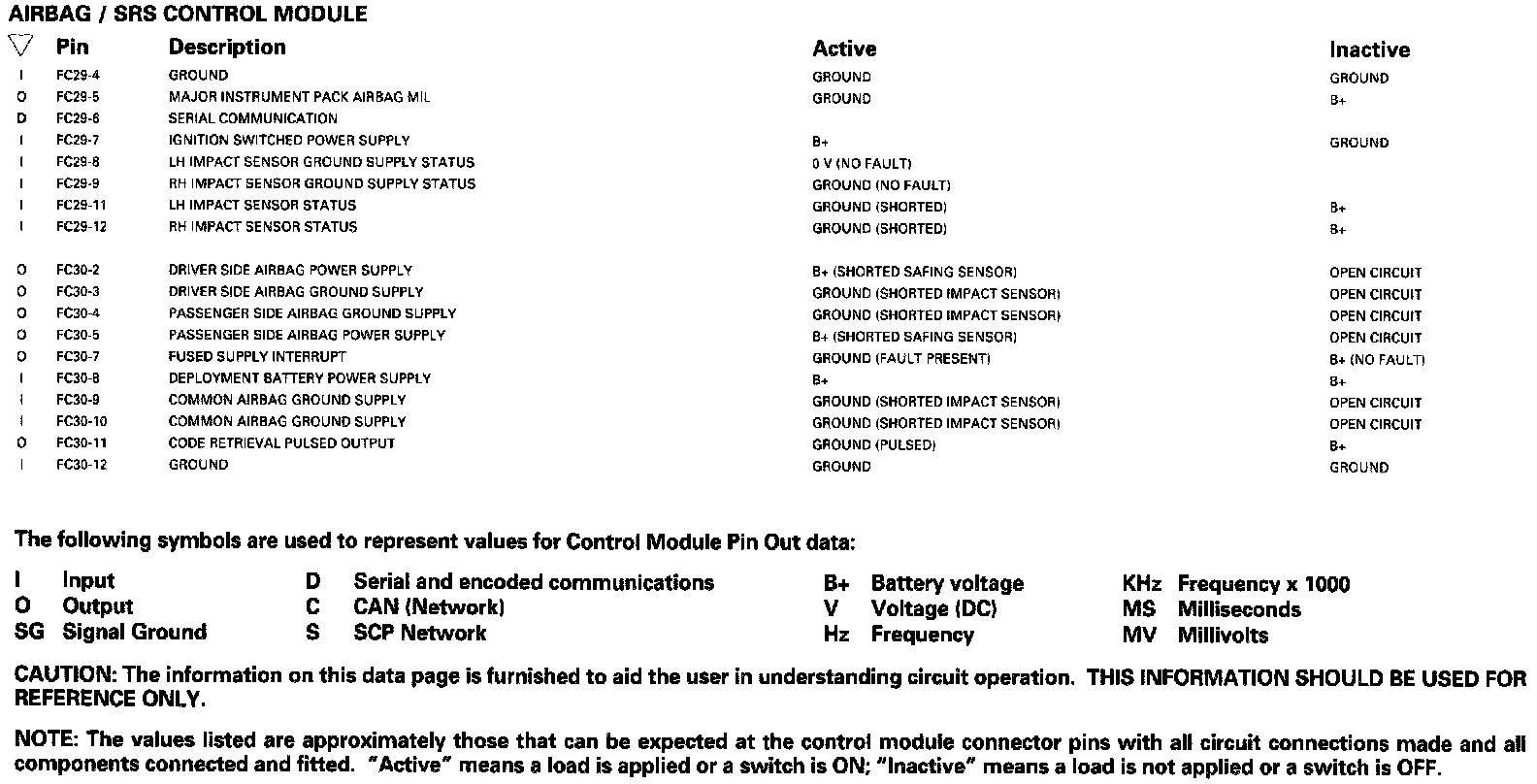

Control Module Pin Out Information
