SRS Components

WARNING: At least one minute must elapse after disconnection of the cable at the battery positive terminal before any airbag/SRS component service is performed. This allows dissipation of the backup power supply energy.

Driver Airbag/SRS Unit
The driver airbag/SRS unit is incorporated in the center of the steering wheel and is a carryover part from the 95MY sedan,




Passenger Airbag/SRS Unit

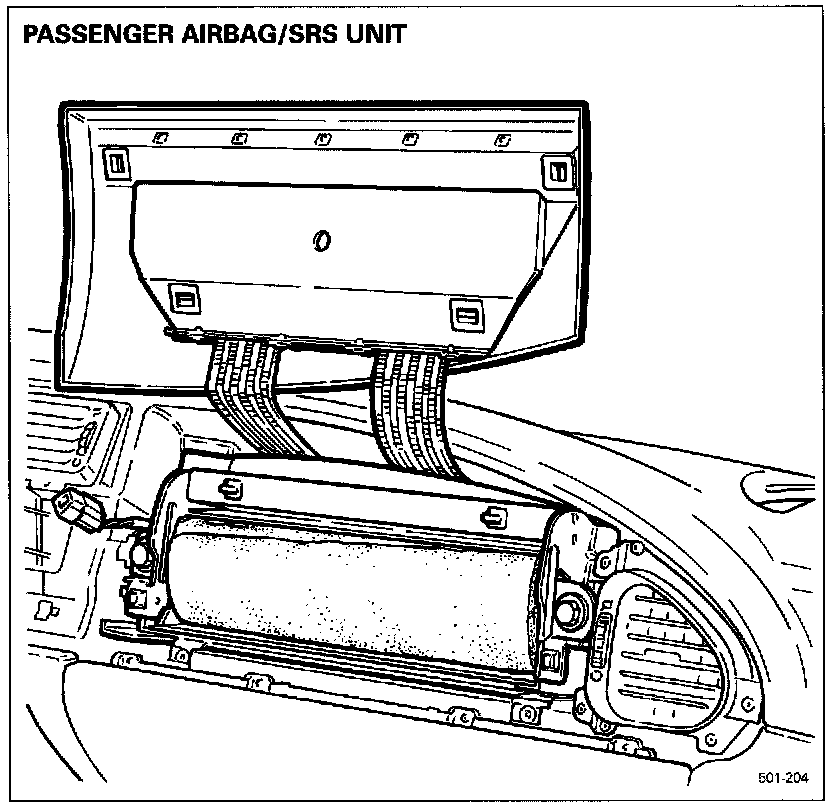

The passenger airbag/SRS unit is a carryover from the 95MY sedan. It is located in the fascia. The airbag is attached to a tethered door which has four snap-on fixings, no hinges or frangible being used. The tether straps must be fitted to the airbag module adapter bracket prior to fitting the airbag module to the fascia.




Control Module

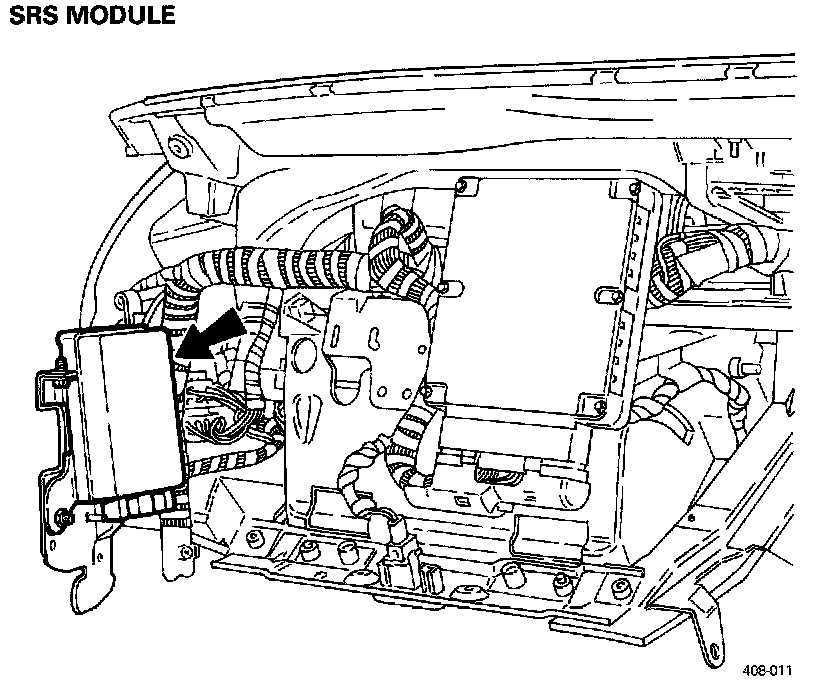

The control module is fitted behind the fascia, by the A-post on the right side of the car. The module has diagnostic ability, with the safing sensor built into the module and not, as previously, a separately mounted unit. The control module includes an internal battery backup power supply enabling airbag deployment in a crash situation even if the main battery cable is disconnected/broken by the impact.




Impact Sensors

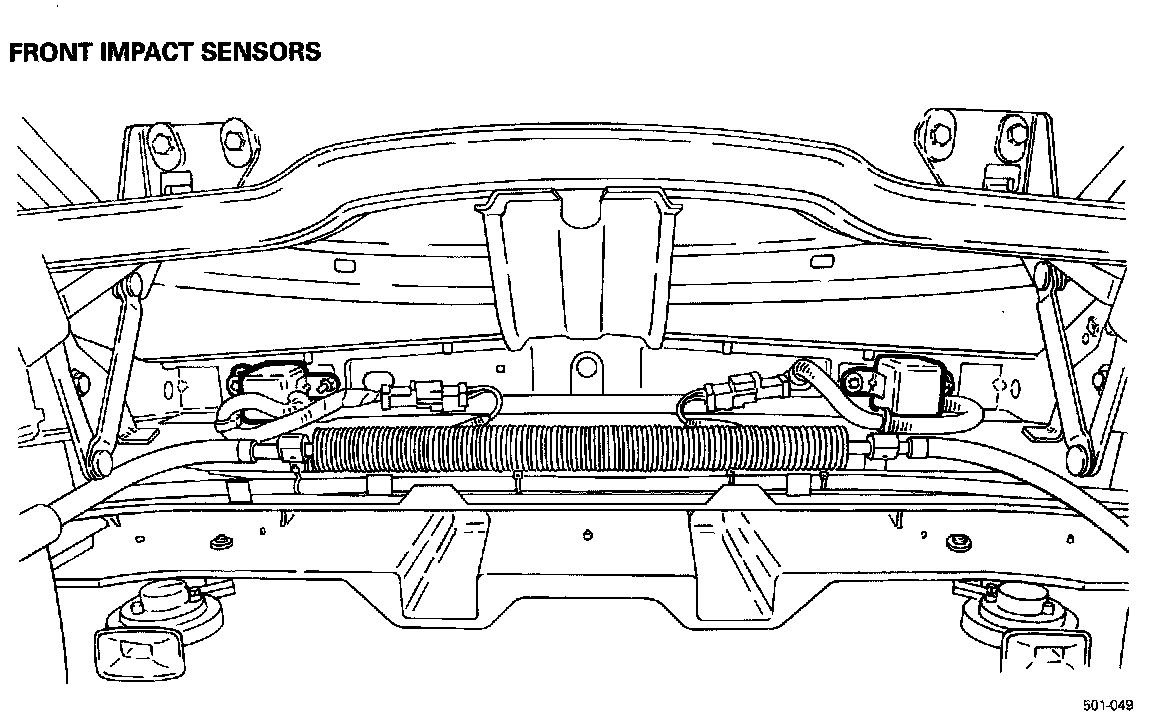

Two primary crash sensors are fitted on the vehicle front upper cross member, in front of the radiator, inboard of the headlamps. These crash sensors are hardwired to the airbags. At least one of the crash sensors must be made, along with the safing sensor, for airbags to deploy. A disarm feature is incorporated in the control module that removes all deployment power from the airbag/SRS without the closure of a primary sensor.

System Management
The SRS Module continuously monitors all airbag/SRS system components and wiring connections for faults. If a system fault occurs a fault code is written into the modules's nonvolatile memory and a warning is displayed on a continuous indicator LED. If the airbag/SRS readiness indicator line has a fault and another fault in the system is detected, an audible tone will be heard, five sets of five bleeps. The readiness indicator line fault must be corrected before fault codes can be determined.

Fault codes can still be read through the ISO connector, even if the readiness line is functional or not. If a fault exists that makes unwanted airbag/SRS deployment possible, the control unit will attempt to remove deployment power by turning on a solid state switch to rupture the 1OA battery fuse.

WARNING: Do not substitute another fuse value for the 1OA battery fuse. This may cause disarming failure. Do not attempt to replace the 10A battery fuse until the airbag/SRS system has first been deactivated. The fuse is located in the Driver Side Fascia Fusebox - Fuse F4

The module will not rupture the fuse a second time thus allowing the fault to be rectified and cleared.
