A/T - Pressure Regulators Incorrectly Identified
307-09V8 XJ Series/XK8
DATE 1/99
MODEL
1997 MY-ON XK8 Range
1998 MY-ON V8 XJ Series
VIN
001001-ON
812256-ON
Pressure Regulators - ZF 5HP24 - Incorrectly Identitied in JTIS 5
Issue:
The illustration in section 307-01A on JTIS 5 incorrectly identifies the position of pressure regulators no.2 and 4.
Action:

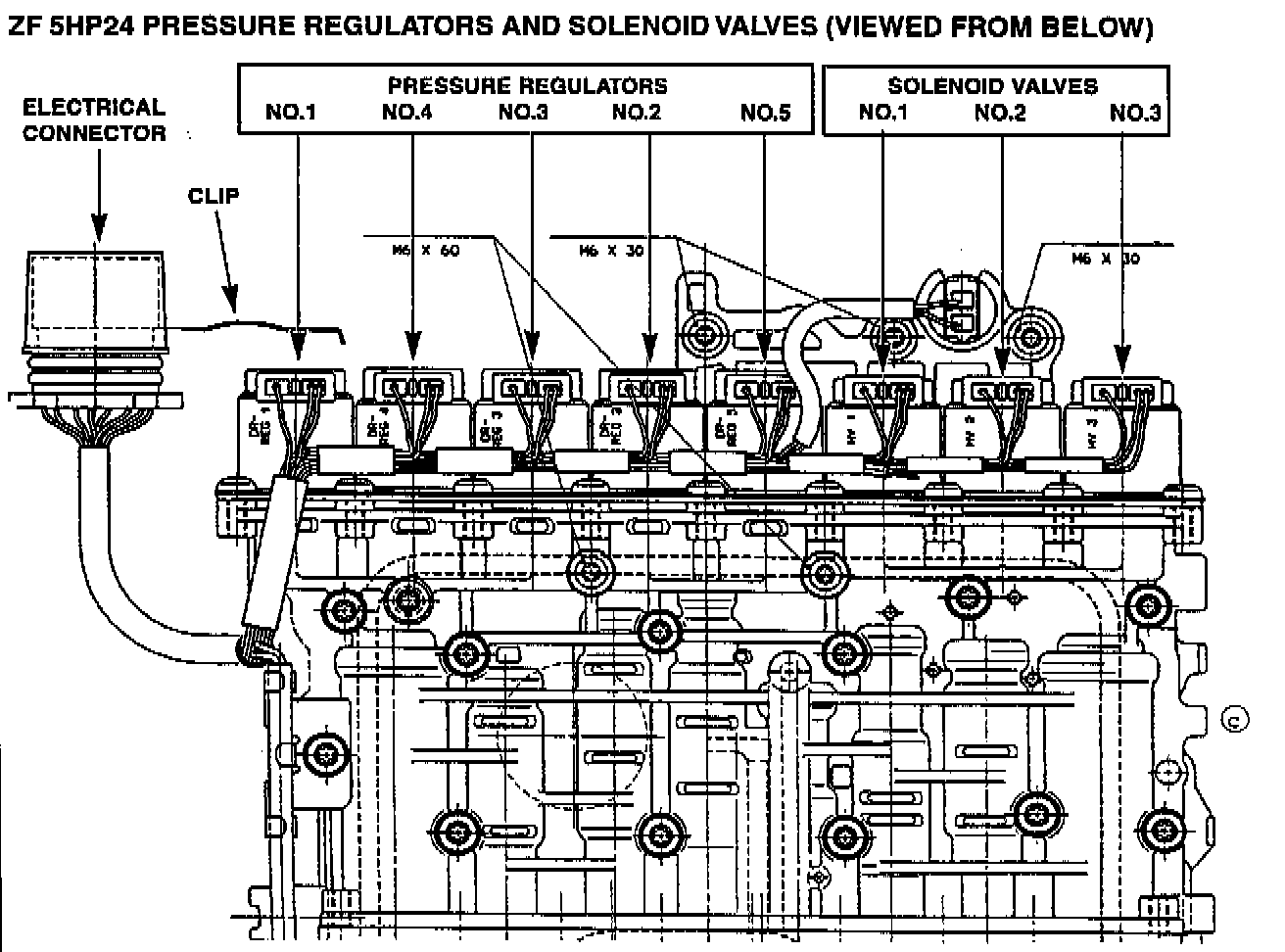

Refer to the illustration until JTIS is updated.
Note:
The electrical guide shows the correct wiring colors for each regulator. However, since it is a schematic, the diagram is not a reference for the physical location of components.
