Home >> Jaguar >> 1998 >> XK-8 Convertible (X100) V8-4.0L (AJ26) >> Repair and Diagnosis >> Powertrain Management >> Relays and Modules - Powertrain Management >> Relays and Modules - Computers and Control Systems >> Main Relay (Computer/Fuel System) >> Locations

Main Relay (Computer/Fuel System): Locations

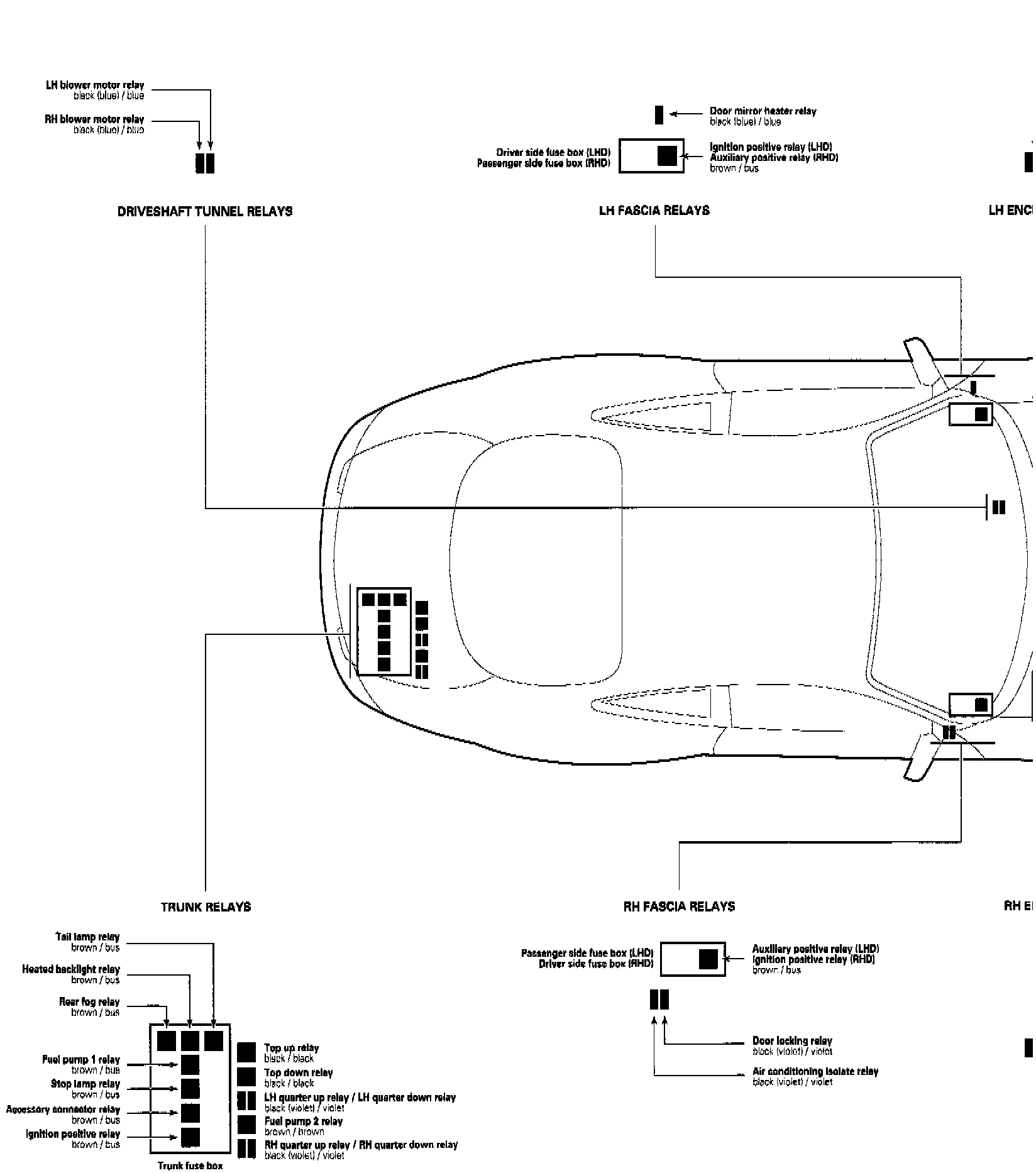

Relay and Fuse Box Identification and Location

� �:
