Ignition Coil - Coil on Plug - Bank 1 (Right)

Removal
1. Disconnect battery ground cable. Service and Repair
2. Remove the air intake tube / meter / air cleaner cover for access.

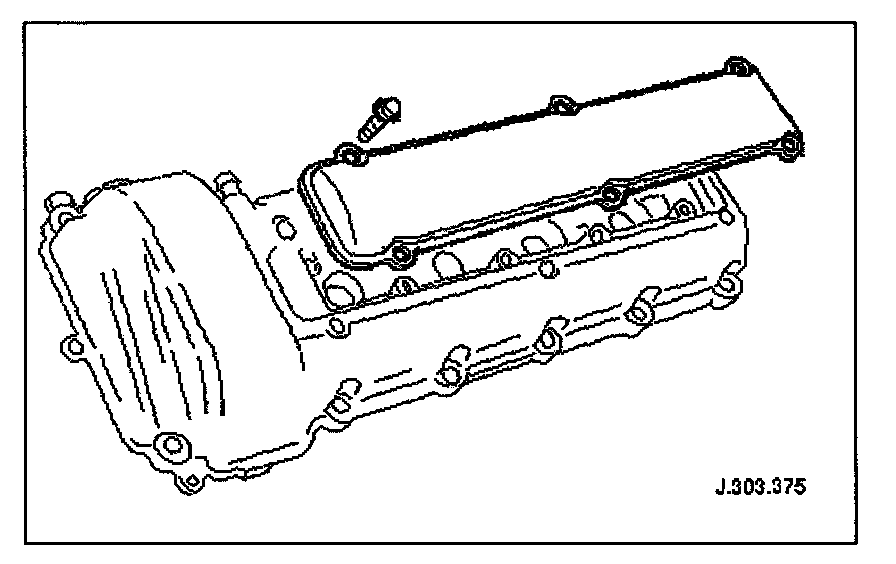

3. Remove coil on-plug cover.
Remove six bolts.
Remove cover.
Clean mating faces.

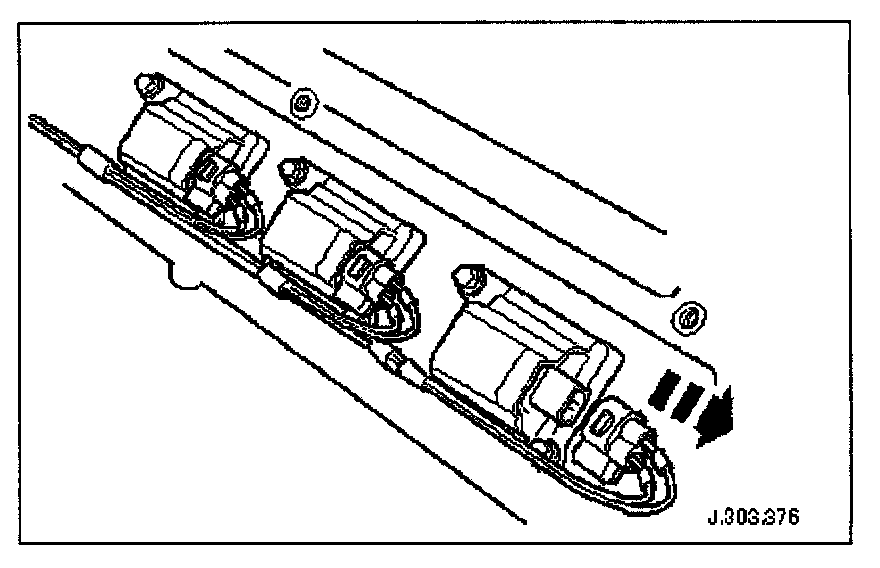

4. Detach harness from retaining clips as necessary and disconnect relevant coil connector.

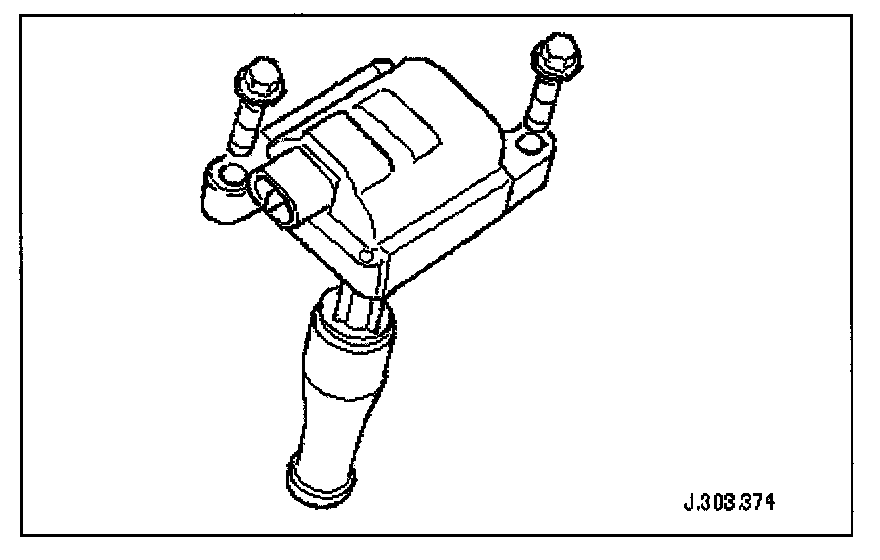

5. Remove relevant ignition coil.
Remove bolts.
Remove coil.


Installation

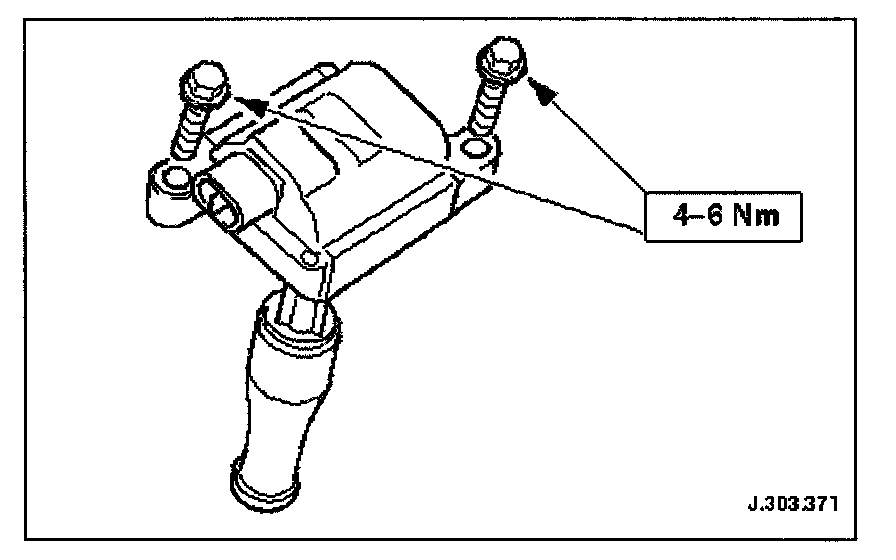

1. Installation is a reversal of the removal procedure. Refer to the Battery Reconnection Procedure. Service and Repair
