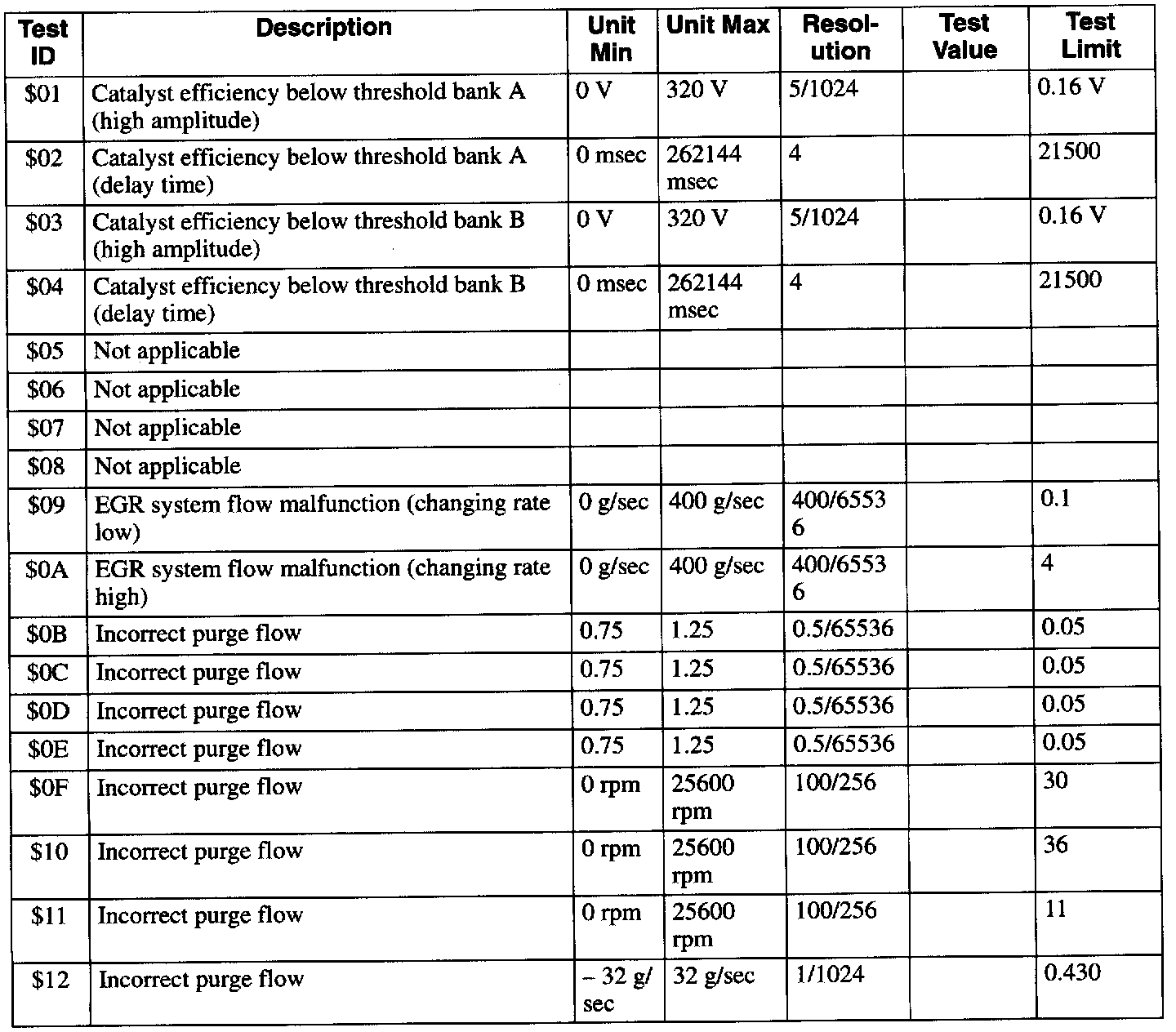

Primary Identification (PID) Reference Chart Mode 06

The purpose of this test mode is to allow access to the results for on-board diagnostic monitoring tests of specific component/systems that are not continuously monitored. Examples being catalyst and evaporative system monitoring

This mode may be used as an alternative to mode 05 to report oxygen sensor results.

NOTE: Any appropriate value within the range (from the columns) Unit Min to Unit Max may be used in the column Test Value
