Primary Identification (PID) Reference Chart Mode 05

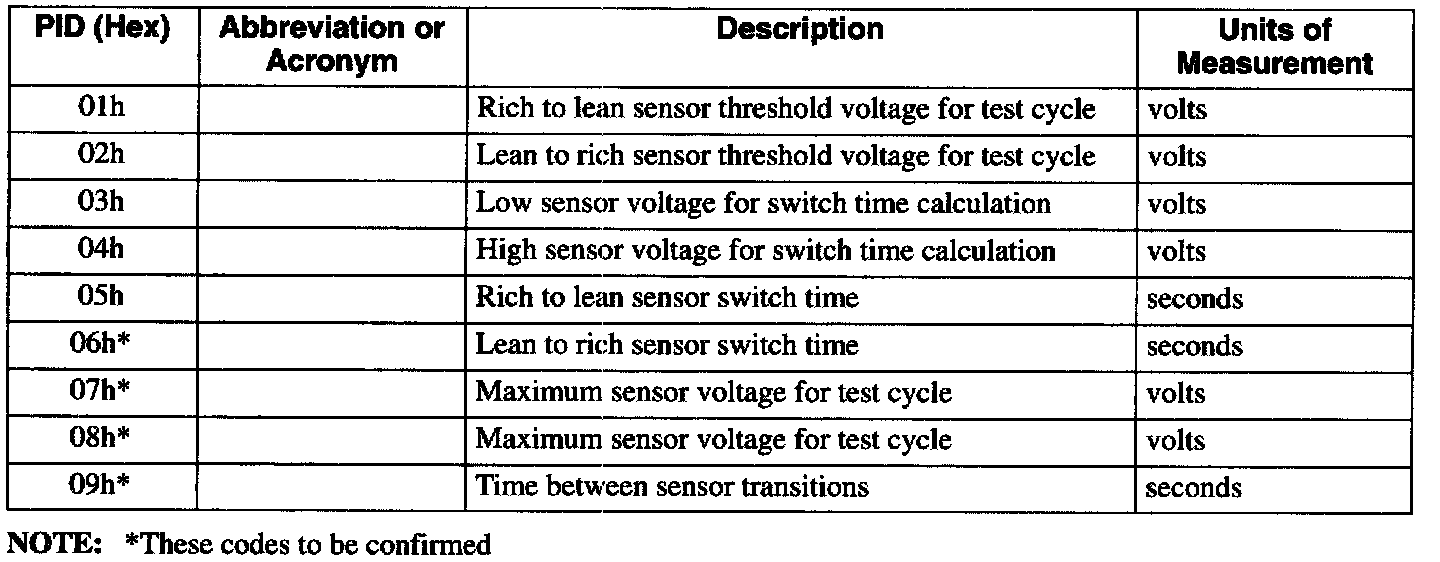

The Oxygen Sensor Monitoring Test Results allows access to the On-Board sensor fault limits and actual values during the test cycle. The test cycle has specific operation conditions that must be met (engine temperature, load, etc.) for completion. This information helps to determine the efficiency of the exhaust catalyst. Listed below are the tests and test identification numbers that are available.
