Drive to 4TH Selector Switch, Renew
Removal1. Disconnect the battery ground lead
2. Carry out the following procedures
- Remove selector lever knob.
- Remove console finisher veneer panel.
- Remove for access "J Gate" surround.
- Remove selector indicator module.

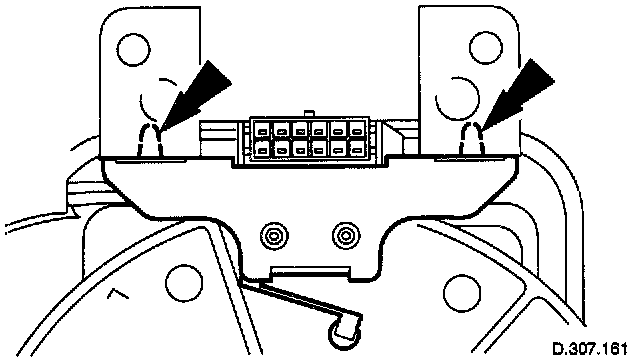

3. Remove the D to 4 switch.
- Press the retaining tangs to release
Installation
4. Fitting a new D to 4 switch is the reverse of the removal procedure.
