Operation

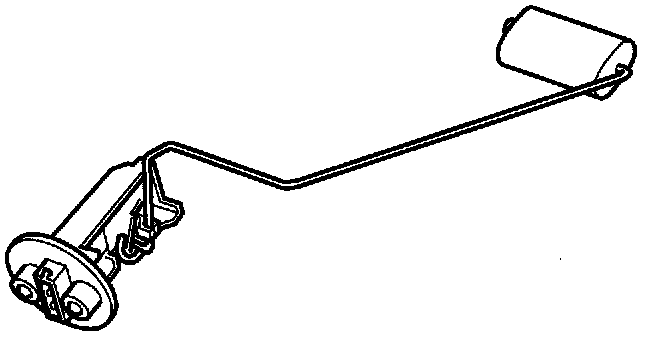

The level sensor, mounted on the fuel tank vertical face, reacts to level changes via a float and pivot which is connected to potentiometer.





As the fuel level drops the resistance increases.
