Body Control Module: Description and Operation

Body Processor Module:

The Body Control System consists of six modules:
- Body Processor Module (BPM)
- Security and Locking Control Module (SLCM)
- Driver Door Control Module (DDCM)
- Passenger Door Control Module (PDCM)
- Driver Seat Control Module (DSCM)
- Passenger Seat Control Module (PSCM)

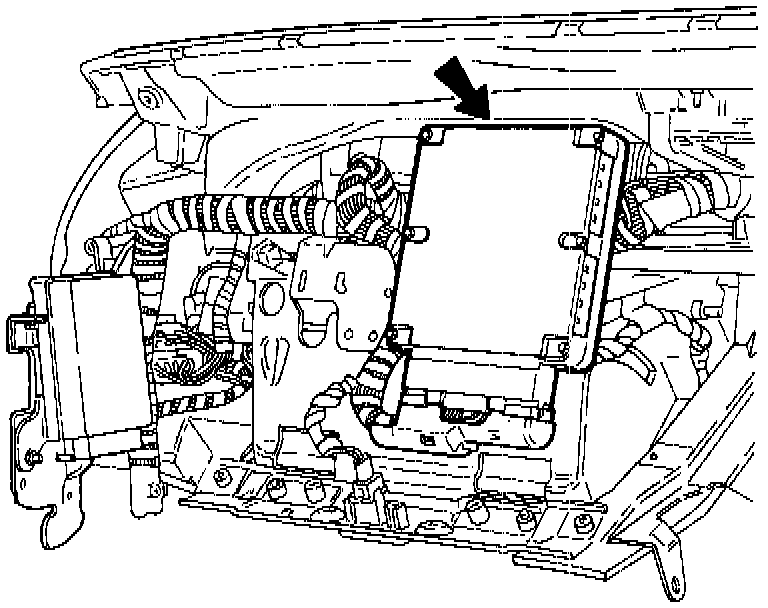

The Body Processor Module (BPM) is located in the fascia, mounted on the passenger airbag/SRS bracket, behind and above the glovebox.

The BPM functions are (where fitted):
- Interior and exterior lighting, except for the door puddle lamps and the rear lamp bulb failure
- Windshield wash/wipe and headlamp power wash
- Steering column memory
- Action alarm lights and sounders and inhibits engine crank
- Gearshift and ignition key interlocks
- Various switches, for example: convertible top, trunk release, fuel filler flap release
- Various audible and visual alarms, for example: sidelight on warning, convertible top operating, seat belt status.
