Control Modules

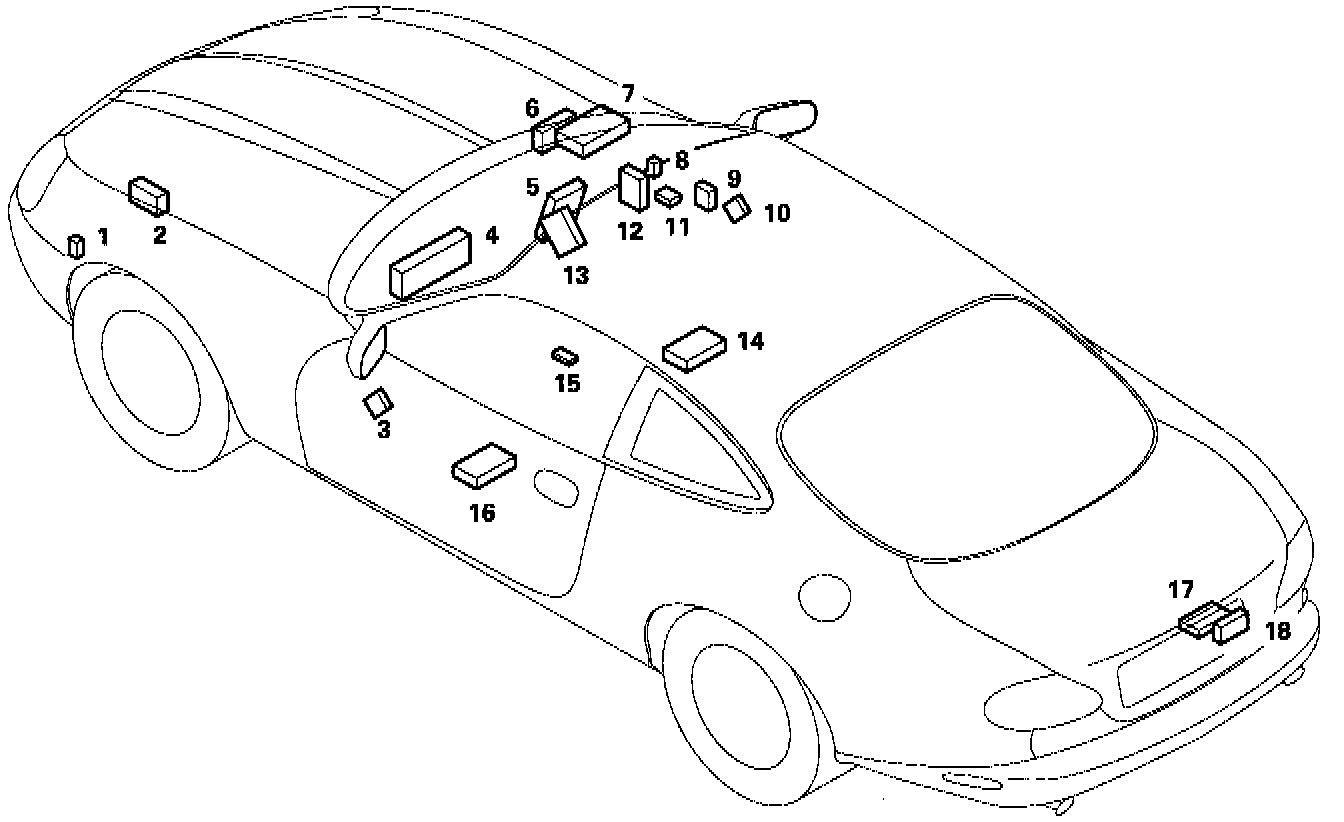

Control Module Locations:

1 Radiator Fans
2 Brake
3 Driver Door
4 Major Instrument Cluster
5 Body Processor
6 Transmission
7 Engine
8 Steering
9 Dimmer
10 Passenger Door
11 Garage Door Opener
12 Airbag/SRS
13 Air Conditioning
14 Passenger Seat
15 Gear Selector Illumination
16 Driver Seat
17 Security and Locking
18 Lamp
