Home >> Jaguar >> 1998 >> XK-8 Convertible (X100) V8-4.0L (AJ26) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Description and Operation >> CAN Messages By Node >> From Vin 024687

From Vin 024687










Node: Engine Control Module

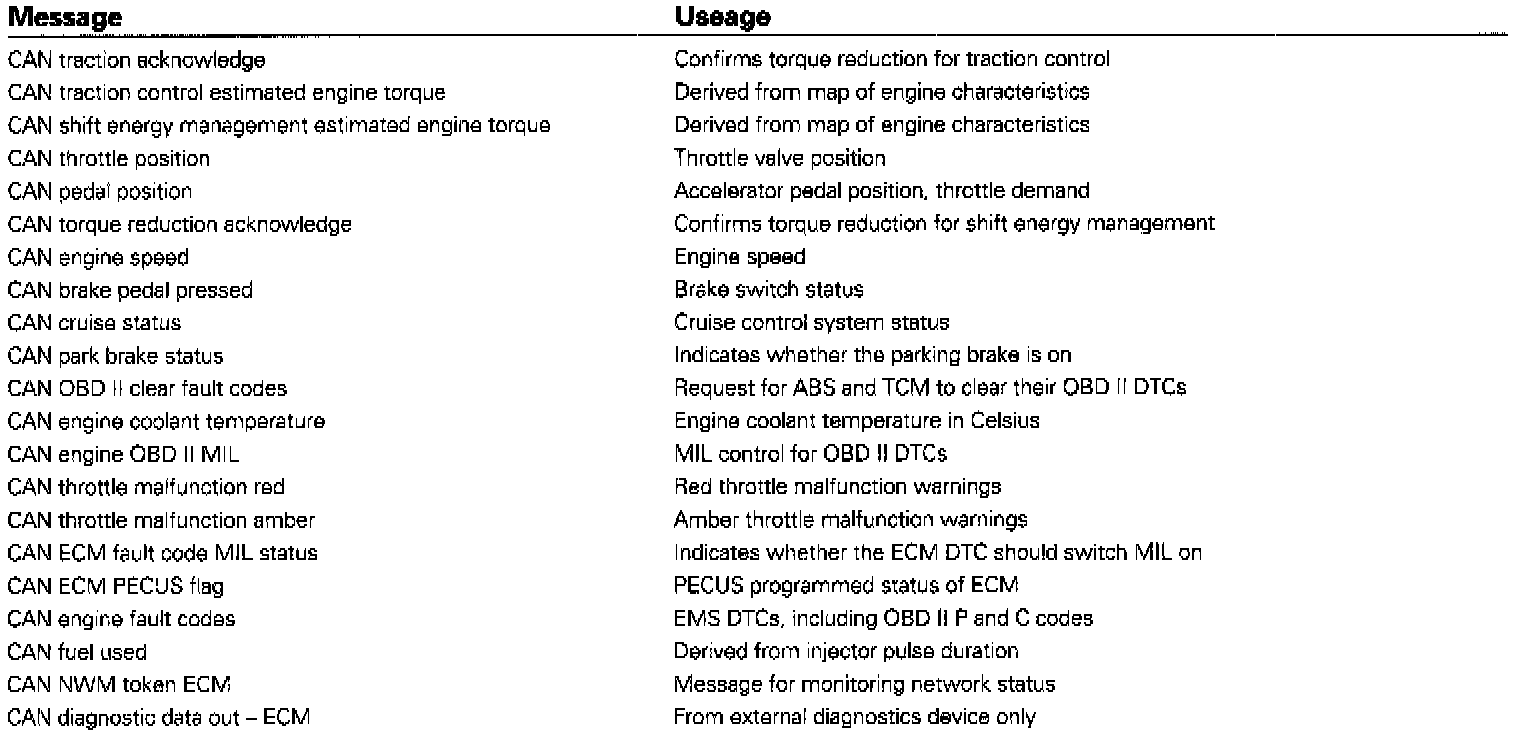

Transmitted by ECM








Node: Engine Control Module

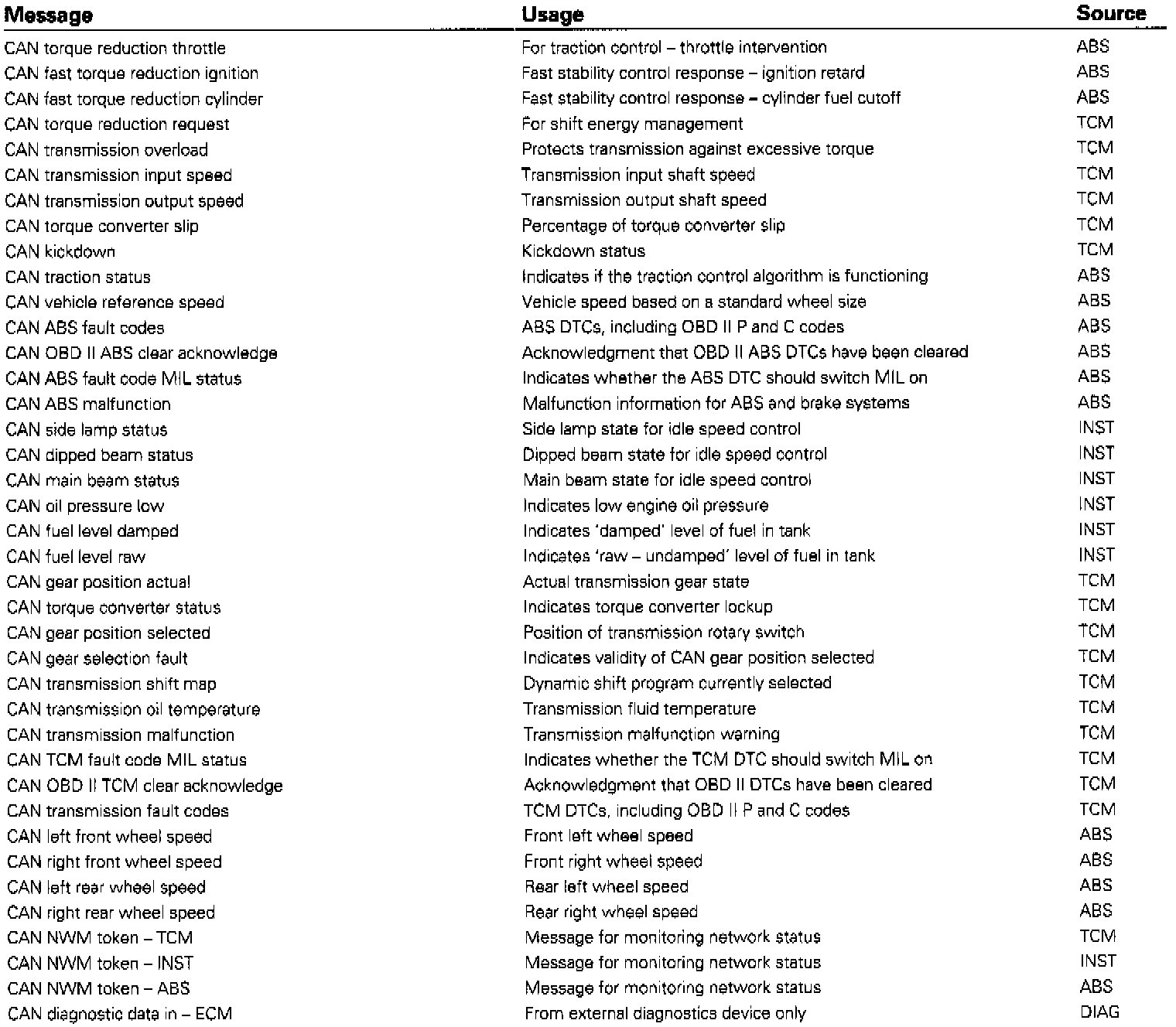

Received by ECM







Node: Engine Control Module
Transmitted by TCM







Node: Engine Control Module

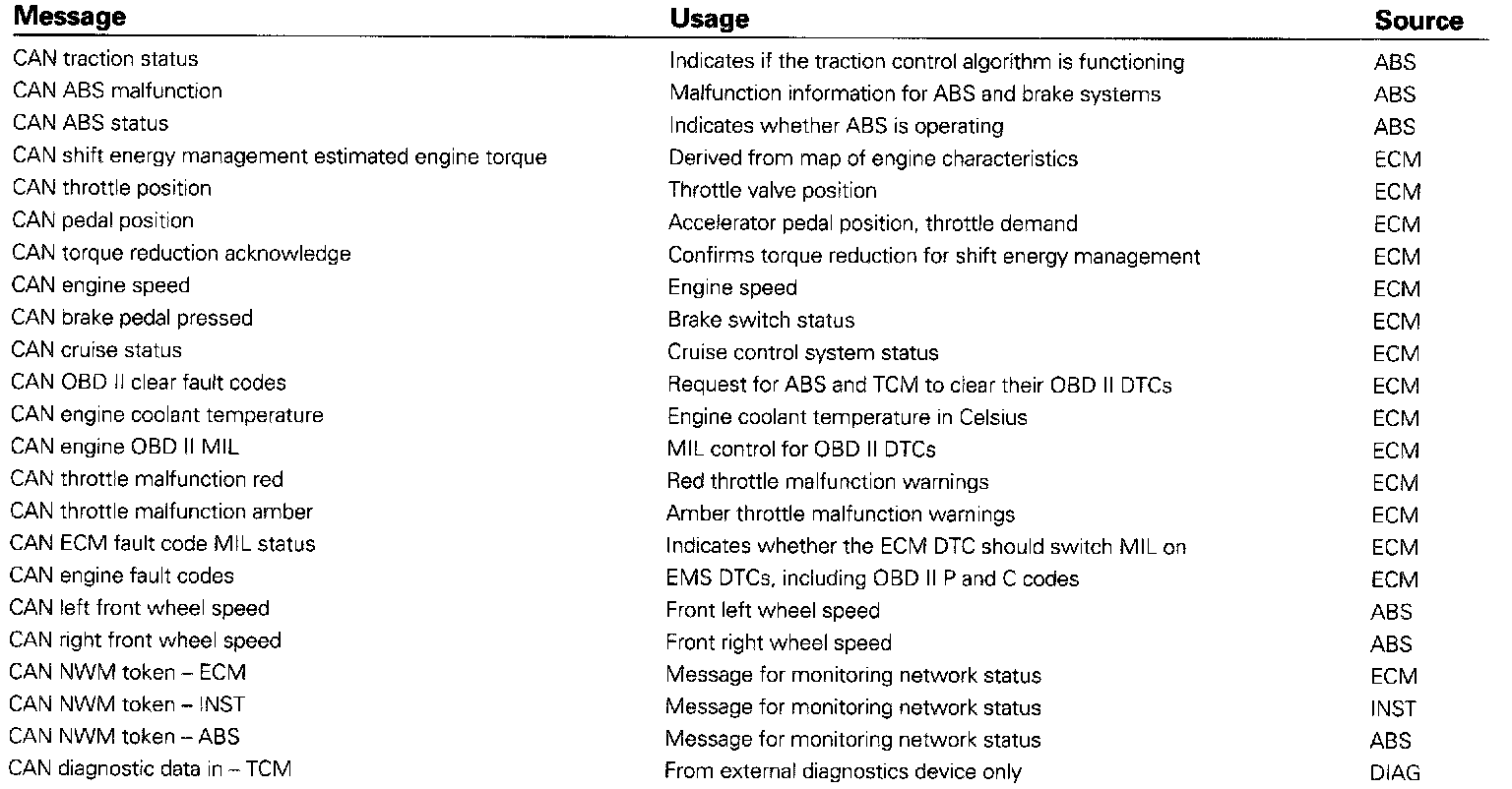

Received by TCM








Node: Instrument Pack

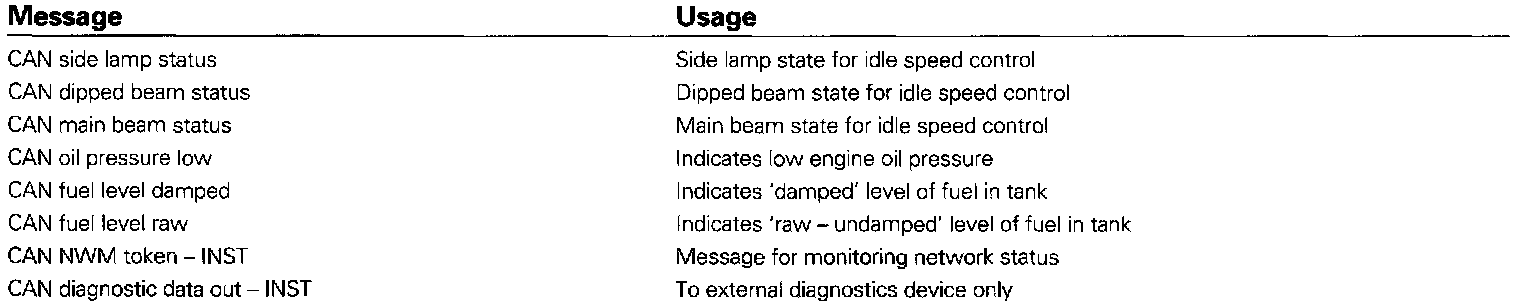

Transmitted by INST








Node: Instrument Pack

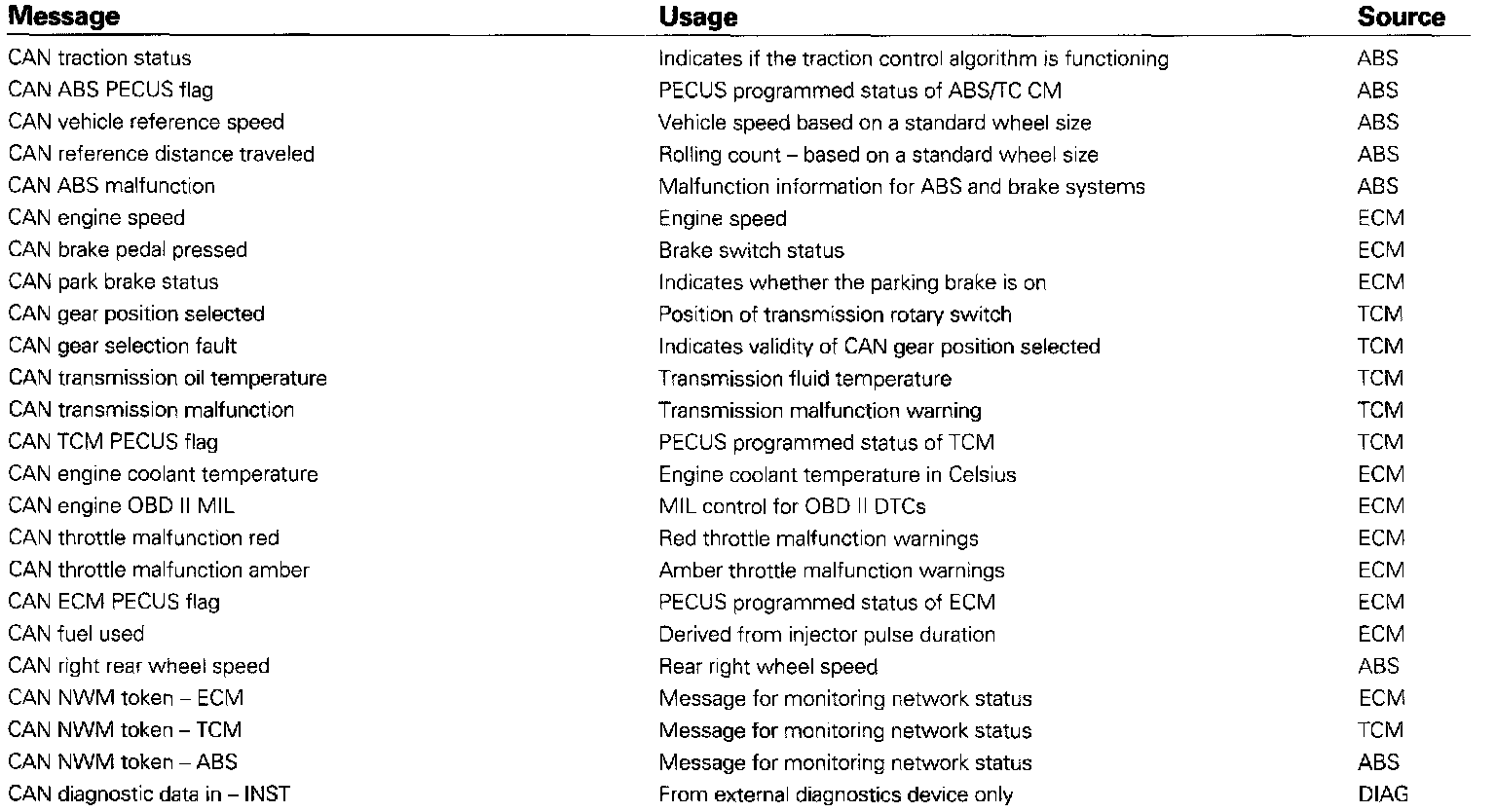

Received by INST







Node: ABS/Traction Control Control Module

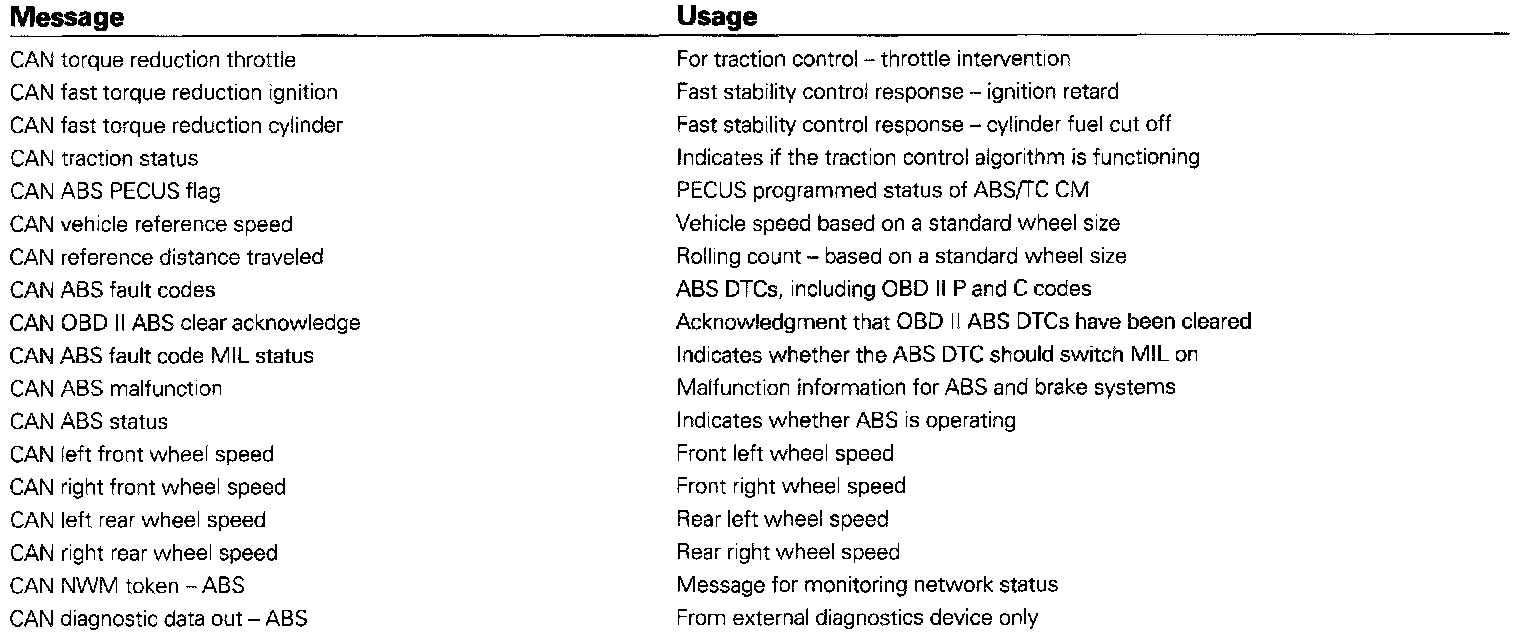

Transmitted by ABS/TCCM







Node: ABS/Traction Control Control Module

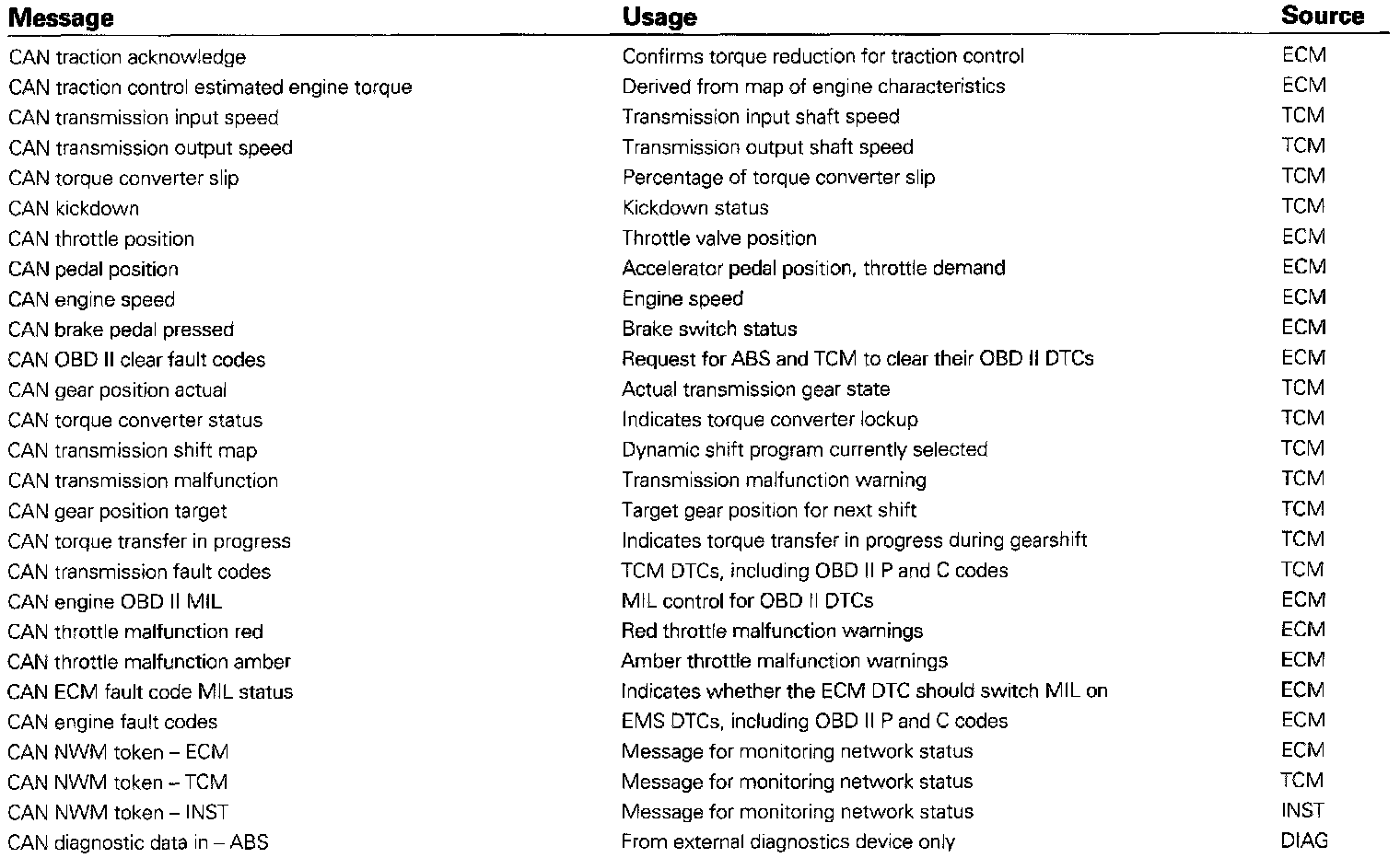

Received by ABS/TC CM







Node: Gear Selector Module (listen Only)

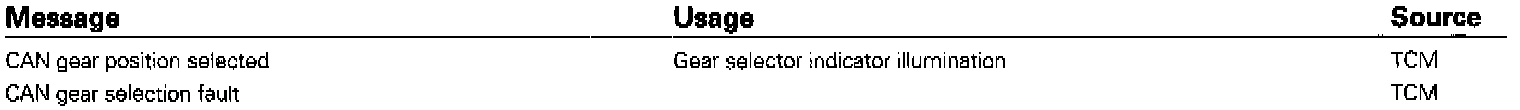

Received by Gear Selector Module
