Fascia End Fuse-Box

Removal
1. Open the driver's door, or both doors if necessary, to allow the side windows to drop. Ensure that the doors remain open until after the battery has been disconnected.







2. Disconnect the battery ground cable. Service and Repair
- Remove the battery cover.

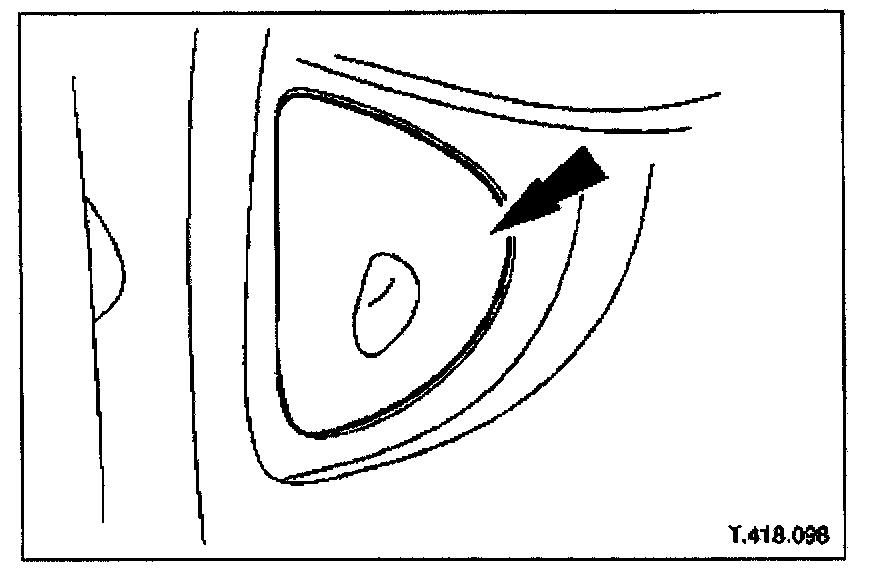

3. Remove the cover from the fuse-box.
4. Remove the glovebox assembly, for access to the connectors.
5. From behind the fuse-box (in the glovebox area) disconnect the harness multi-plug.

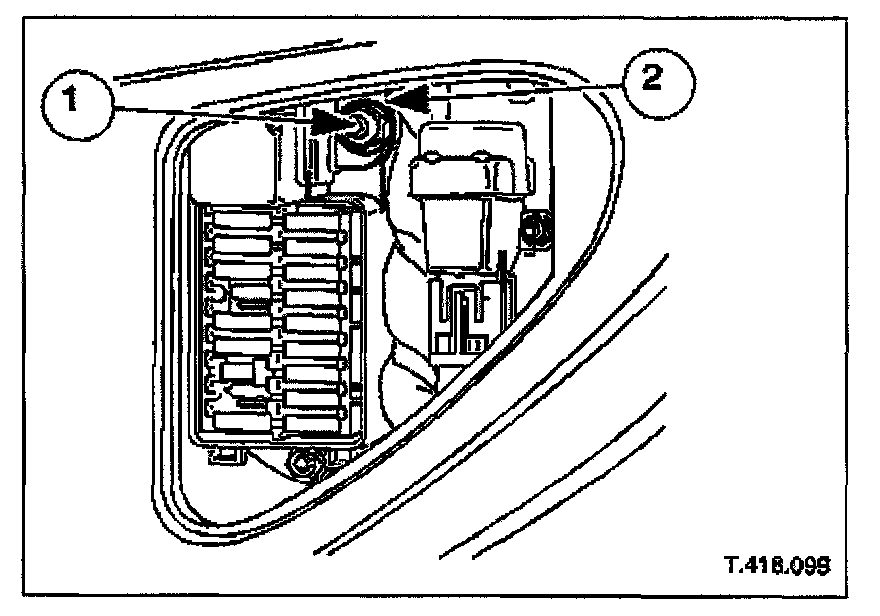

6. Remove the positive supply power cable.
(1) Remove the nut which secures the positive cable to the fuse-box.
(2) Disconnect the positive power cable.

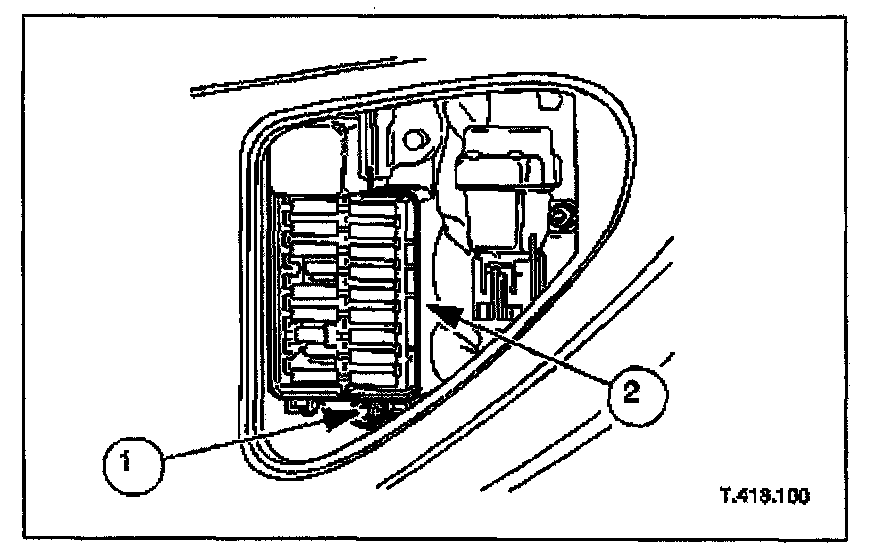

7. Remove the fuse-box.
(1) Remove the two nuts which secure the fuse-box to the fascia.
(2) Remove the fuse-box from the vehicle.

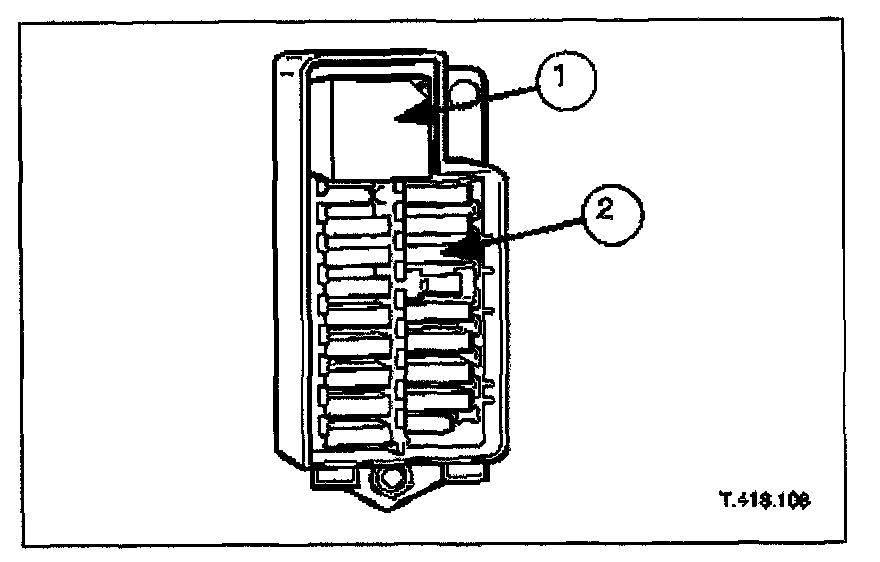

8. Remove the fuses and relay.
(1) Remove the relay.
(2) Identify each fuse and remove them. The value and position of each fuse is illustrated on the lid of the luggage compartment fuse-box - for all fuse-boxes on the vehicle.

Installation
1. Installation is the reverse of removal.
2. Perform the Battery Reconnection Procedure.
