Fluid Filter - A/T: Service and Repair

Fluid Filter

Removal
1. Raise the vehicle for access.
2. Remove the fluid pan.

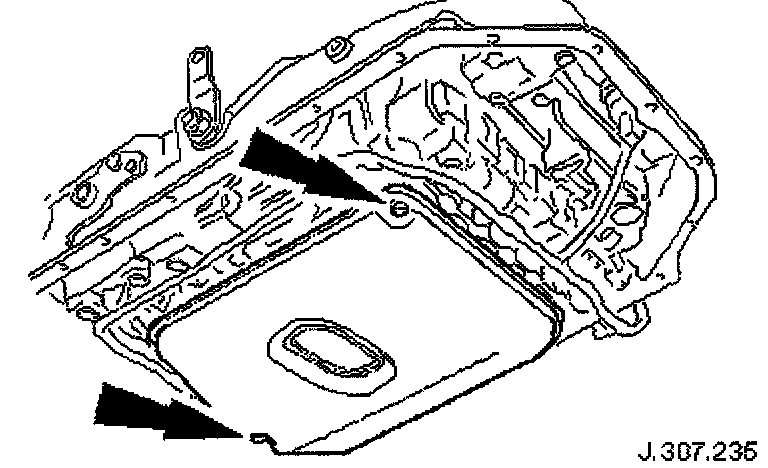

3. Remove and discard the fluid filter.
Remove the two bolts which secure the filter.
Discard the 'O' ring.
Clean the fluid filter mating face.

Installation
1. Installation is the reverse of the removal procedure.
2. Renew the O-ring.

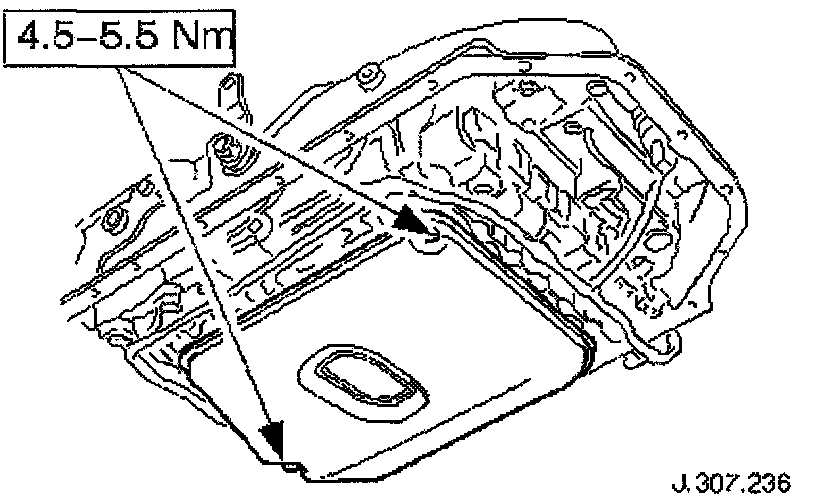

3. Tighten the two bolts to the specified torque figure, to secure the filter.
4. Refill the transmission with fluid.
