Speedometer Head: Description and Operation

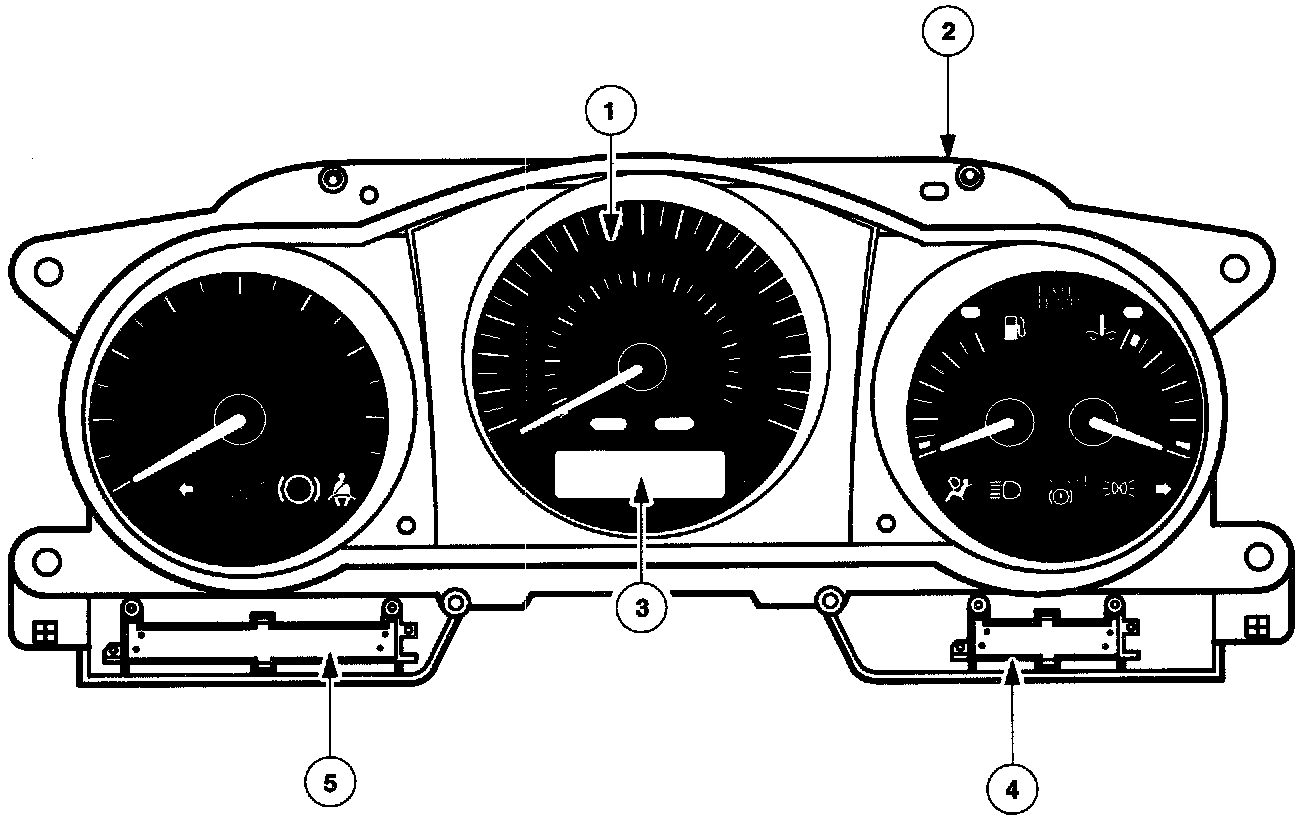

Item Description
1 Speedometer
2 Major Instrument Cluster
3 Driver's Message Center
4 Connector
5 Connector (Large)

The speedometer and odometer are part of the Major Instrument Cluster. The odometer is incorporated into the Driver's Message Center, which is used to warn the driver with text messages, for warnings not covered by warning lamps.
