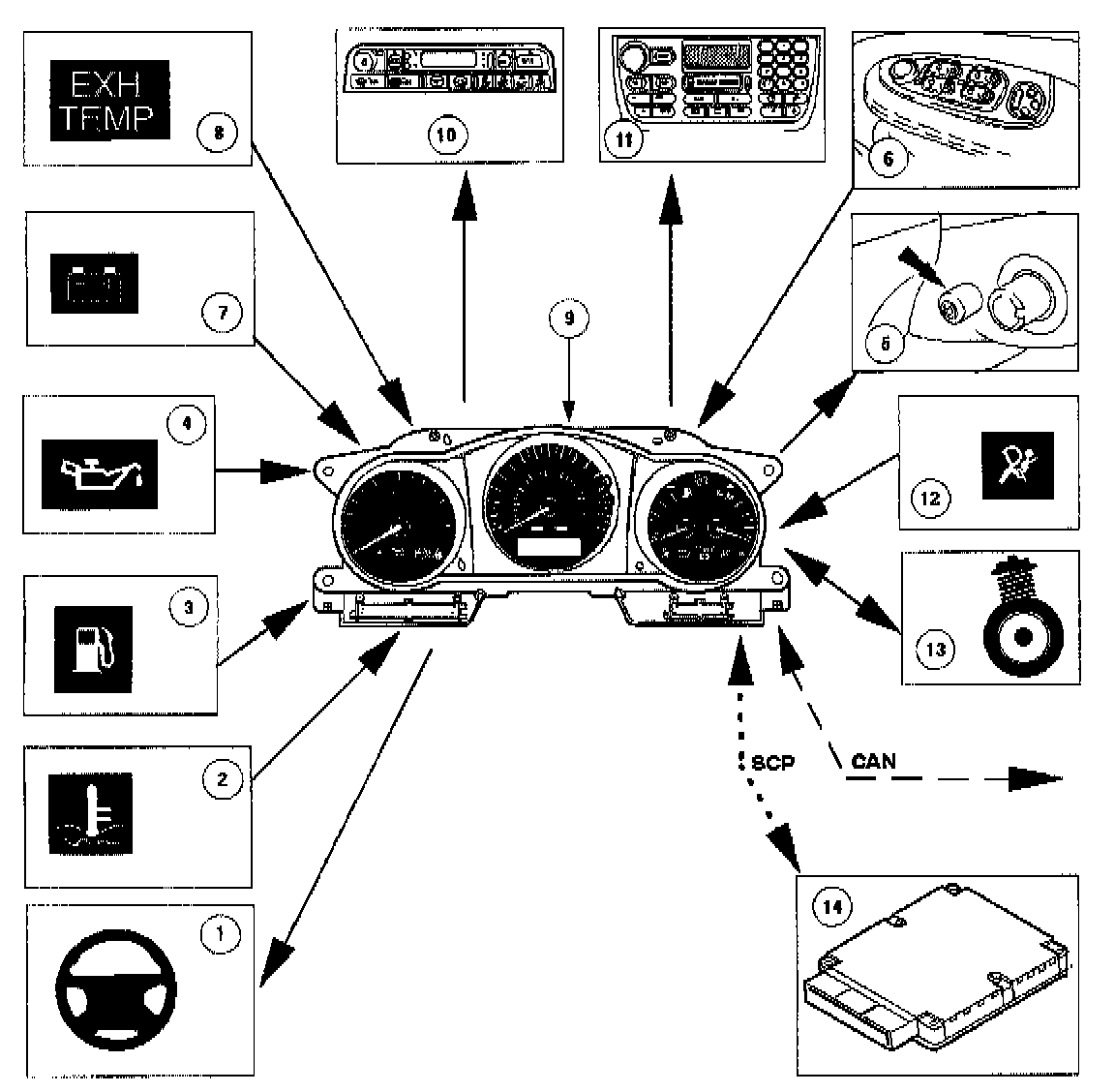

Instrument Cluster

Item Description
1 Variable Power Steering
2 Coolant Level
3 Fuel Level
4 Oil Pressure
5 Lamp Dimmer
6 Driver's Switchpack (Trip Computer)
7 Generator (Charge Warning Lamp)
8 Catalyst Overheat
9 Instrument Cluster
10 Climate Control (Signal to Module)
11 ICE Head Unit
12 Airbag Circuit Integrity
13 Adaptive Damping
14 Body Processor Module


The Instrument Cluster comprises a Major Cluster and a Minor Cluster, as well as being a primary Electronic Control Module.

The Minor Cluster indicates engine oil pressure and battery state of charge. The Major Cluster provides indications for the speedometer, tachometer, coolant temperature, fuel level, driver information (Message center) and warning lamps.

The Major Instrument Cluster also:
- provides input/output information signals for use by other modules.
- acts as a protocol converter (software language translator - the languages used on each network are very similar, but neither can be directly interpreted by the opposite system) for communication between all modules on both the CAN and SCP multiplexed networks. The Instrument Cluster is the only module on the vehicle which communicates between the two networks.
