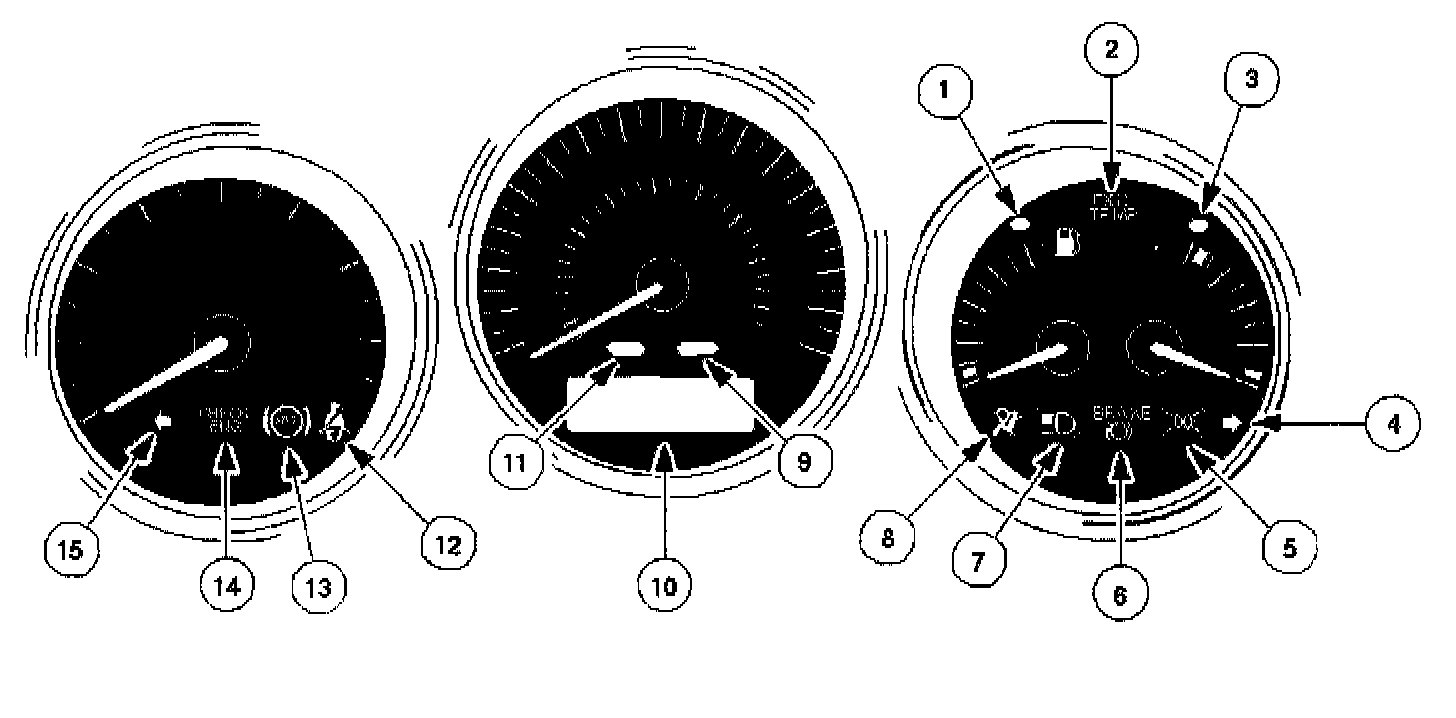

Gauges and Warning Devices

Item Description
1 Low Fuel Level
2 Exhaust System Temperature *
3 Engine Coolant High Temperature
4 Direction Indicator Right Hand
5 Side/Parking Lamps
6 Handbrake ON/Low Brake Fluid Level
7 Main Beam
8 Airbag/Airbag System Fault
9 High Priority Text Message Displayed
10 Message center (Text Messages)
11 Low Priority Text Message Displayed
12 Seat Belt Not Fastened (Driver's)
13 ABS Integrity
14 EMS Fault
15 Direction Indicator Left Hand

* Not used on all markets. Refer to the Driver's Handbook.


All gauges look like conventional analogue gauges, but each pointer is driven by a stepper motor to provide more accurate indication. The message center is used to warn the driver, using text messages; for warnings not covered by conventional warning lamps, to indicate that the Automatic Stability Control is operating and for other shared warnings. Two warning lamps, Red and Amber, are located above the Message center to attract the driver's attention when a text warning message has been displayed.
