Servo Motor - Center Vent



Servo Motor - Center Vent






Removal
1. Remove air distribution box

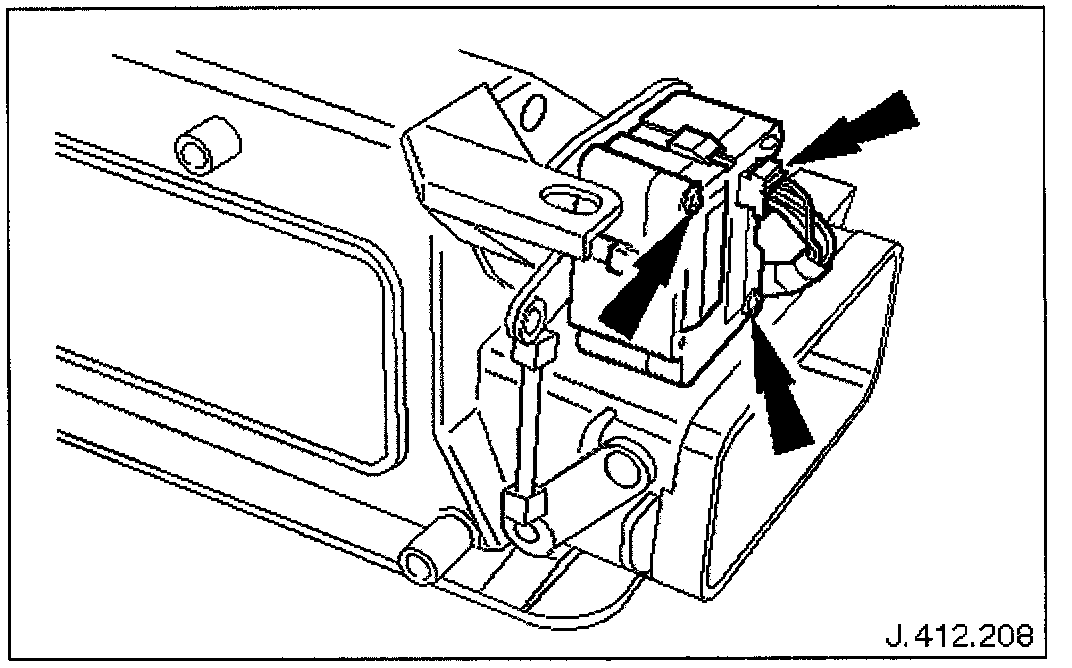

2. Remove motor from air distribution box.

Remove connector.
Remove screws.
Remove motor.

Installation
1. Installation is a reversal of the removal procedure.
