Right-Hand

Removal
1. Raise the vehicle on a four-post ramp. Vehicle Lifting

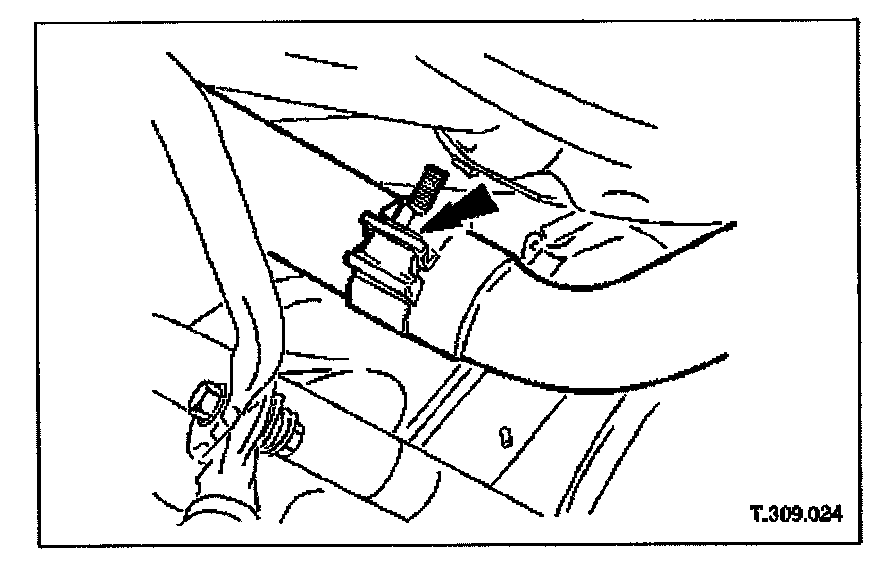

2. Slacken the rear to intermediate muffler securing clamp.





3. Remove the rear muffler and tailpipe assembly.

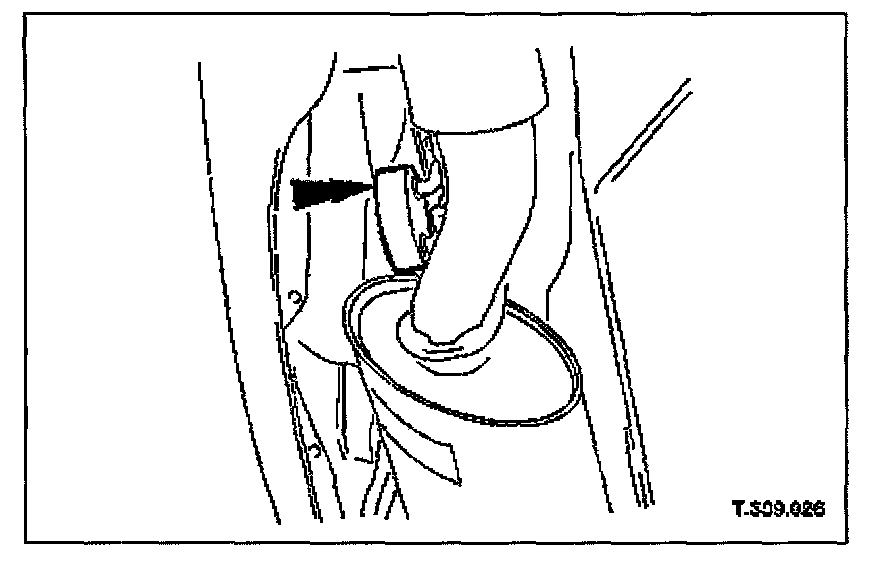

Disengage the peg from the mounting rubber.
Rotate the assembly back and forth to aid removal.
4. Clean the exhaust joints.


Installation





1. Install the rear muffler and tailpipe assembly.
Connect the rear muffler to the intermediate muffler and insert to the Nominal indicator ring.
Engage the peg with the mounting rubber.
Check that the tailpipe position is within the specified settings, adjusting engagement within the Maximum and Minimum indicator rings if necessary; refer to Specifications. Specifications





2. Tighten the rear to intermediate muffler securing clamp.
3. Lower the ramp.
