Timing Cover: Description and Operation

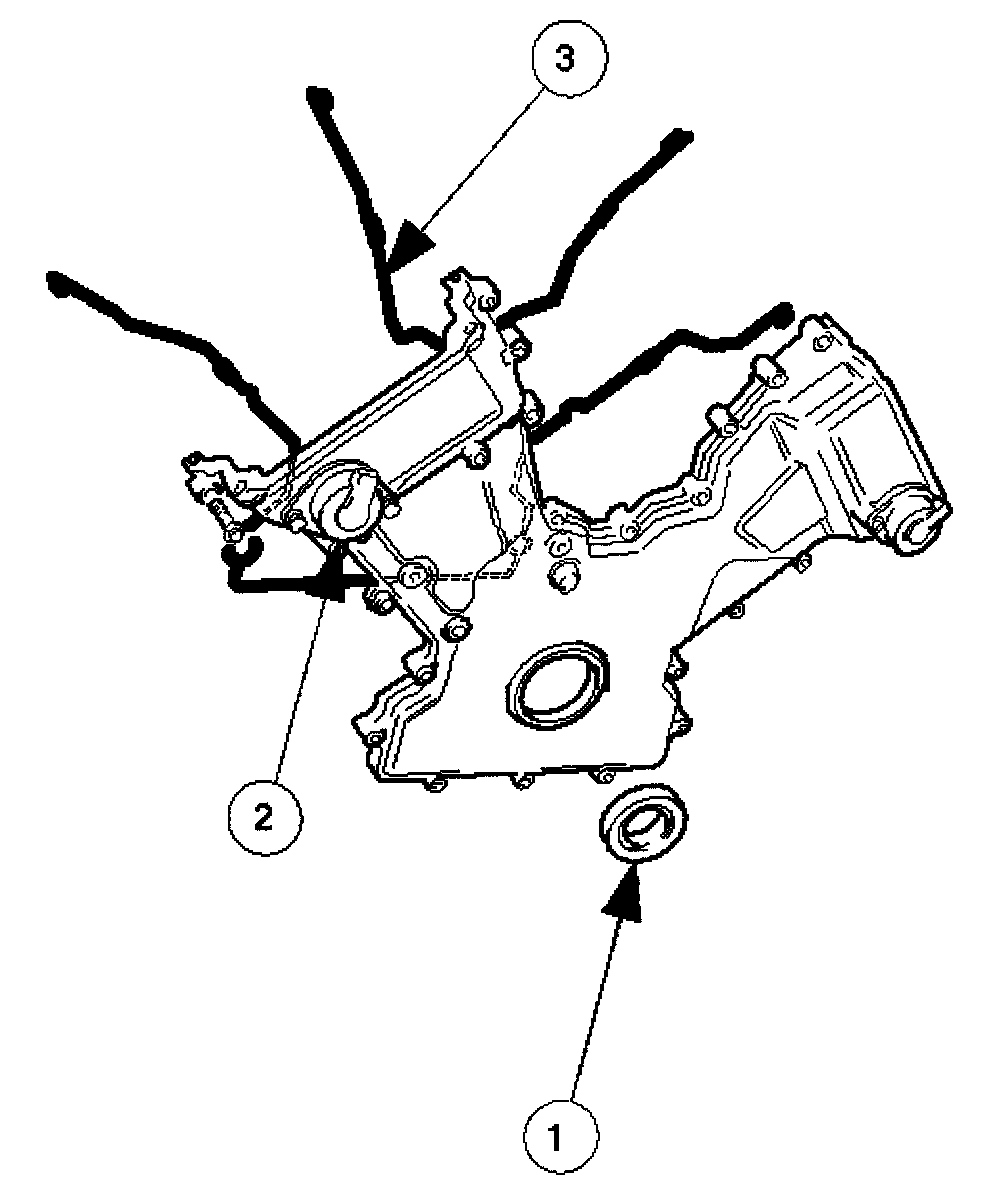

Part 1 Of 2:

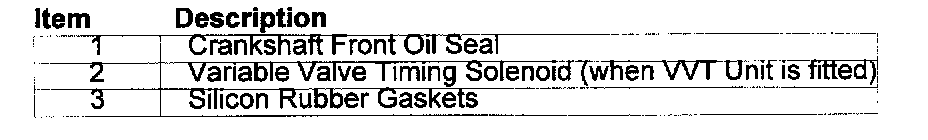

Part 2 Of 2:

The aluminium-alloy timing cover accommodates the crankshaft front oil seal and the two variable valve timing solenoids (4.0L normally aspirated). Silicon rubber in-groove gaskets seal the joint between the timing cover and the front face of the engine.
